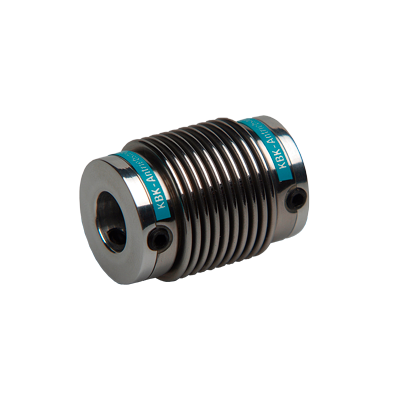

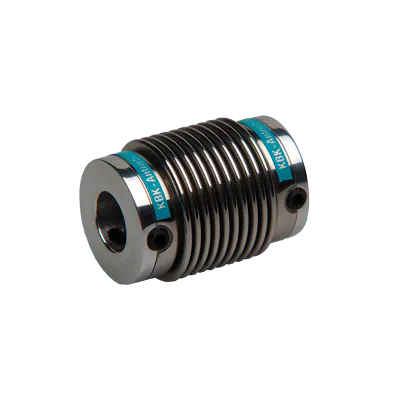

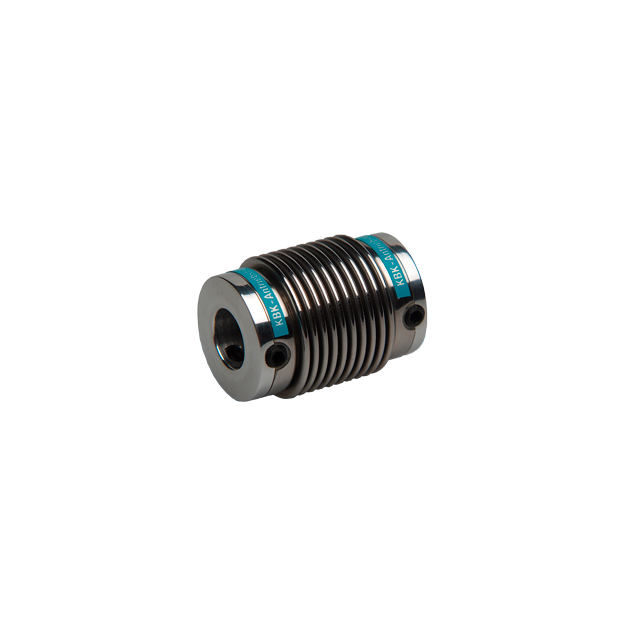

KB1 45 40 19 15 miniature metal bellow coupling, stainless steel and aluminium
HV71015060The KB1 size 45 backlash-free miniature metal bellows coupling with radial set screws offers a reliable, compact, and cost-effective solution for connecting rotary encoders, tachometers, potentiometers, and other sensor systems.
Specifications
Product description
Downloads
€50.00
Made to order
Expected shipment: 31-01-2025
More Information
Material
Stainless steel and aluminium
Length (mm)
40
Max. moment (Nm)
4.5
Manufacturer
KBK
Coupling size
45
Outer diameter (mm)
Ø32
Bore D1
Ø19mm H7
Bore D2
Ø15mm H7
Description
Key features:
- Backlash-free coupling: Ensures precise and accurate transmission of torque.
- Radial set screws: Provides secure and reliable shaft fastening.
- Ideal for rotary encoders and sensor systems: Perfect for connecting encoders, tachometers, potentiometers, and other sensor devices.
- Simple and cost-effective design: Offers a reliable solution at an affordable price.
Specifications:
- Temperature range: -30 °C to +120 °C
Materials:
- Bellows: Stainless steel: Provides excellent corrosion resistance and durability.
- Hubs: Aluminum: Offers a lightweight yet robust construction.
Bore specifications:
- Bore D1: Ø19mm H7
- Bore D2: Ø15mm H7
