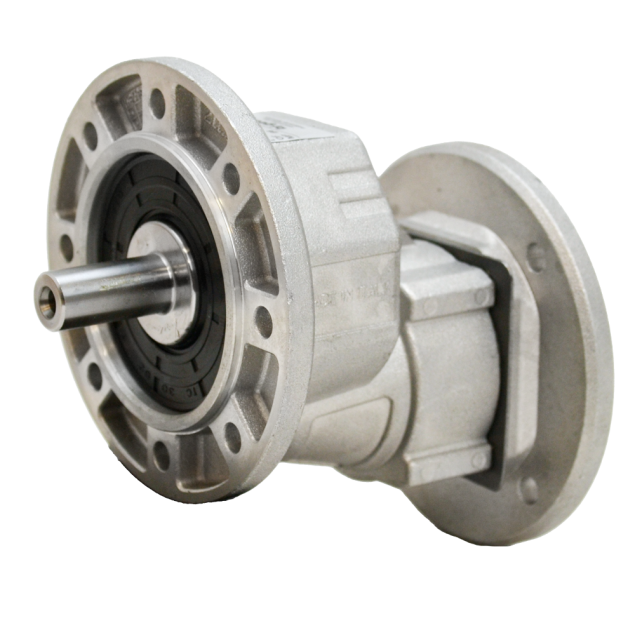

Hydromec 211A, 1 stage coaxial gear, 2,8:1, input 71B14, output 71B14, aluminium
HV80P211A-F03SI-QB3STThe Hydromec 211A features a single-stage gear configuration which provides a transmission ratio of 2.8:1. This setup ensures reliable torque conversion with minimal loss, supported by a mechanical efficiency of 98%.Constructed from aluminium, this gear housing offers a balance of low weight and structural rigidity while enhancing heat dissipation. With a gear size classified as 211A, this model is designed for applications requiring standardized mounting and interface compatibility.The gear unit is equipped with a 14 mm input shaft and a 14 mm output shaft, enabling easy coupling with standard components. It is built to interface with motor flange size 71B14, standardizing mechanical integration on both the input and output side via GEAR motor interface 71B14.The unit supports a BCD input and output of 85 mm, allowing seamless mechanical positioning and secure fitment in system frames adhering to BCD85 dimensional standards.The Hydromec 211A is well suited for drive systems where low gear reduction, high efficiency, and compact interfacing are necessary. The aluminum gear case and standardized dimensions streamline installation for technical users focused on system efficiency and mechanical compatibility.
Specifications
Product description
Downloads
€173.00
Made to order
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Aluminium
Ratio
2,8:1
BCD input
85
BCD output
85
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
14
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
211A
Output speed at 1400 RPM
500
Max output torque (Nm)
14
Max kW input at 1400 rpm
0.75
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
---**Product Description – Hydromec 211A, Single-Stage Helical Gearbox, 2.8:1 Ratio, Input 71B14, Output 71B14, Aluminium**
Designed and manufactured by Hydro-Mec Italy – a leading name in precision gearbox technology for industrial automation, mechanical engineering, and drive systems. Hydro-Mec is renowned for their modular gearbox designs, premium materials, and exceptional efficiency, offering robust solutions tailored to the needs of engineers and OEM integrators worldwide.
High efficiency of 98% per stage minimizes energy losses and increases system performance, making this gearbox ideal for energy-conscious industrial operations.
Standardized IEC B14 interface (input and output: 71B14) supports seamless integration with electric motors, simplifying machine design and assembly for automation systems.
Constructed from high-strength aluminium, which offers reduced weight, excellent corrosion resistance, and optimal heat dissipation for demanding industrial environments and compact applications.
Single-stage helical gear design (Ratio 2.8:1) ensures smooth torque transmission, low vibration, and minimal noise, making it suitable for high-performance motion control and precision drive applications.
Compact gear size 211A allows for installation in space-constrained machinery layouts without compromising mechanical strength or operational reliability.
14 mm precision-machined input and output shafts provide standardized connectivity for coupling with servomotors, AC motors, or rotary devices in production lines and mechanical systems.
Standard output shaft diameter ensures compatibility with a wide range of couplings, pulleys, conveyor belts, and rotary actuators used in process automation, packaging, and material handling.
Ideal for applications in sectors such as food processing, automated assembly, packaging machinery, and light-to-medium-duty conveyor systems requiring high torque with compact design constraints.
Modular construction simplifies customization and maintenance, allowing integration into multi-gear combinations or speed-variable drive systems where high torque and compact form factor are essential.
Suitable for OEM manufacturers and system integrators looking for long-lasting and easily configurable gearbox solutions with minimal lifecycle costs and high mechanical efficiency.
Backed by Hydro-Mec's commitment to durability, quality assurance, and precision engineering—built to perform in industrial-grade automation with consistent output and low-maintenance operation.---Let me know if you need a shorter version, translation, or technical diagrams added!
Designed and manufactured by Hydro-Mec Italy – a leading name in precision gearbox technology for industrial automation, mechanical engineering, and drive systems. Hydro-Mec is renowned for their modular gearbox designs, premium materials, and exceptional efficiency, offering robust solutions tailored to the needs of engineers and OEM integrators worldwide.
High efficiency of 98% per stage minimizes energy losses and increases system performance, making this gearbox ideal for energy-conscious industrial operations.
Standardized IEC B14 interface (input and output: 71B14) supports seamless integration with electric motors, simplifying machine design and assembly for automation systems.
Constructed from high-strength aluminium, which offers reduced weight, excellent corrosion resistance, and optimal heat dissipation for demanding industrial environments and compact applications.
Single-stage helical gear design (Ratio 2.8:1) ensures smooth torque transmission, low vibration, and minimal noise, making it suitable for high-performance motion control and precision drive applications.
Compact gear size 211A allows for installation in space-constrained machinery layouts without compromising mechanical strength or operational reliability.
14 mm precision-machined input and output shafts provide standardized connectivity for coupling with servomotors, AC motors, or rotary devices in production lines and mechanical systems.
Standard output shaft diameter ensures compatibility with a wide range of couplings, pulleys, conveyor belts, and rotary actuators used in process automation, packaging, and material handling.
Ideal for applications in sectors such as food processing, automated assembly, packaging machinery, and light-to-medium-duty conveyor systems requiring high torque with compact design constraints.
Modular construction simplifies customization and maintenance, allowing integration into multi-gear combinations or speed-variable drive systems where high torque and compact form factor are essential.
Suitable for OEM manufacturers and system integrators looking for long-lasting and easily configurable gearbox solutions with minimal lifecycle costs and high mechanical efficiency.
Backed by Hydro-Mec's commitment to durability, quality assurance, and precision engineering—built to perform in industrial-grade automation with consistent output and low-maintenance operation.---Let me know if you need a shorter version, translation, or technical diagrams added!
