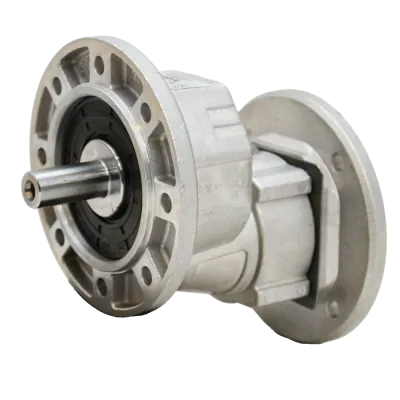

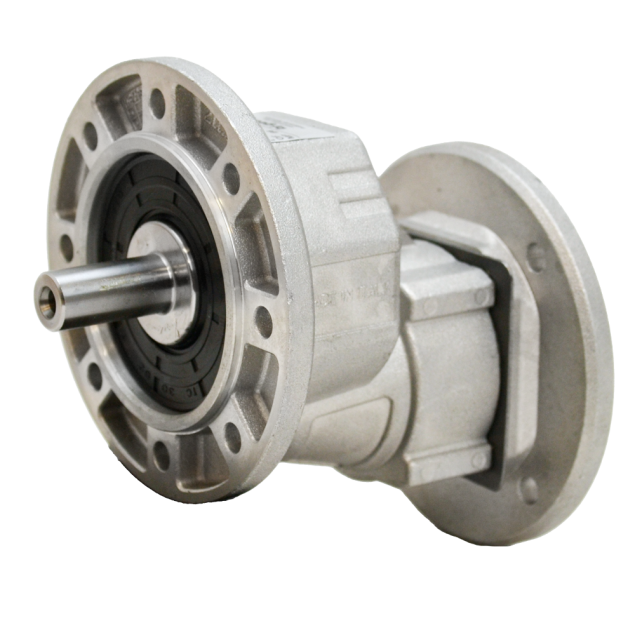

Hydromec 211A, 1 stage coaxial gear, 2,8:1, input 63B14, output 71B14, aluminium
HV80P211A-F03SI-PB3STThis model features a gear ratio of 2.8:1, delivered through 1 gear stage, offering simple and effective torque reduction. The input shaft diameter is 11 mm, and the output shaft measures 14 mm, suitable for standard motor and application interfacing.Constructed from aluminium, the gear housing ensures low weight while maintaining resistance to corrosion, aiding in heat dissipation and reliability. The gear motor interface is IEC 63B14 on the input side, supporting a range of standardized motor connections. The output is configured for BCD 85 mm, while the input follows BCD 75 mm specifications, matching common engineering and assembly requirements.This gear unit is part of the 211A series, supporting streamlined integration with existing setups. With a high efficiency of 98%, it supports optimal power transfer for demanding use cases.Designed for specialists, the Hydromec 211A addresses key application parameters in automation, machinery, and OEM integration environments.
Specifications
Product description
Downloads
€173.00
Made to order
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Aluminium
Ratio
2,8:1
BCD input
75
BCD output
85
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
14
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
211A
Output speed at 1400 RPM
500
Max output torque (Nm)
14
Max kW input at 1400 rpm
0.75
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
---Hydro-Mec is a leading-edge Italian manufacturer known for its precision-engineered gearboxes and gear motors, providing innovative transmission solutions across various industries. With a strong focus on modularity, efficiency, and reliability, Hydro-Mec products are engineered for high performance and easy integration. Manufactured entirely in Italy, their gear units are certified for quality and performance, making them a top choice among technical specialists and mechanical engineers worldwide.SKU: Hydromec 211A, 1-stage helical gear unit, 2.8:1 ratio – input 63B14, output 71B14, aluminum housing.Key features, advantages, and application areas:
High mechanical efficiency of 98% minimizes energy loss and heat generation, enhancing system-wide efficiency and reducing operational costs in continuous-duty and high-load industrial environments.
Single-stage gear design with a ratio of 2.8:1 offers compactness and high-speed transmission with minimal backlash—ideal for automation systems, conveyors, and drive mechanisms that require swift, precise torque adjustments.
Robust aluminum housing ensures optimal strength-to-weight ratio and corrosion resistance—suitable for harsh and demanding industrial settings including food processing, packaging, and offshore applications.
Input shaft diameter of 11 mm and output shaft diameter of 14 mm provide versatility in connecting to standard motor types and driven components—enabling easier system design and fewer custom modifications.
Standard 63B14 motor interface allows direct mounting of IEC standard motors, facilitating simplified assembly, enhanced compatibility, and faster integration into existing systems or modular platforms.
Compact gear size (211A) supports efficient space utilization, making this unit ideal for tight installations in automated machinery, robotics setups, and mobile industrial equipment.
High load capacity and durable gear construction ensure long lifecycle and reduced maintenance intervals, critical for applications where long operating hours and high reliability are expected—such as material handling, textile machinery, and processing lines.
BCD input: 75 mm, BCD output: 85 mm — standard bolt circle dimensions enhance compatibility with a wide range of couplings and flanges, aiding in quicker system integration and reduced downtime during replacements.
Ideal for both horizontal and vertical mounting positions, increasing flexibility in engineering design and enabling diverse use in pump drives, elevators, and positioning systems where orientation flexibility is important.
Gear stage configuration (1 stage) offers reduced mechanical complexity and increased transmission rigidity, lowering the chances of mechanical failure over time—perfect for mission-critical industrial systems.Overall, the Hydromec 211A one-stage helical gear unit reflects Hydro-Mec’s commitment to premium quality, reliability, and adaptability—making it a trusted solution for engineers seeking high-performance power transmission systems in modern automation and industrial drive applications.
High mechanical efficiency of 98% minimizes energy loss and heat generation, enhancing system-wide efficiency and reducing operational costs in continuous-duty and high-load industrial environments.
Single-stage gear design with a ratio of 2.8:1 offers compactness and high-speed transmission with minimal backlash—ideal for automation systems, conveyors, and drive mechanisms that require swift, precise torque adjustments.
Robust aluminum housing ensures optimal strength-to-weight ratio and corrosion resistance—suitable for harsh and demanding industrial settings including food processing, packaging, and offshore applications.
Input shaft diameter of 11 mm and output shaft diameter of 14 mm provide versatility in connecting to standard motor types and driven components—enabling easier system design and fewer custom modifications.
Standard 63B14 motor interface allows direct mounting of IEC standard motors, facilitating simplified assembly, enhanced compatibility, and faster integration into existing systems or modular platforms.
Compact gear size (211A) supports efficient space utilization, making this unit ideal for tight installations in automated machinery, robotics setups, and mobile industrial equipment.
High load capacity and durable gear construction ensure long lifecycle and reduced maintenance intervals, critical for applications where long operating hours and high reliability are expected—such as material handling, textile machinery, and processing lines.
BCD input: 75 mm, BCD output: 85 mm — standard bolt circle dimensions enhance compatibility with a wide range of couplings and flanges, aiding in quicker system integration and reduced downtime during replacements.
Ideal for both horizontal and vertical mounting positions, increasing flexibility in engineering design and enabling diverse use in pump drives, elevators, and positioning systems where orientation flexibility is important.
Gear stage configuration (1 stage) offers reduced mechanical complexity and increased transmission rigidity, lowering the chances of mechanical failure over time—perfect for mission-critical industrial systems.Overall, the Hydromec 211A one-stage helical gear unit reflects Hydro-Mec’s commitment to premium quality, reliability, and adaptability—making it a trusted solution for engineers seeking high-performance power transmission systems in modern automation and industrial drive applications.
