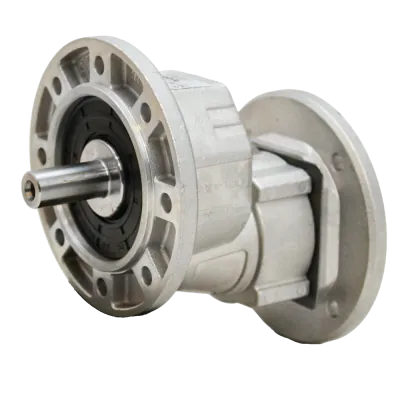

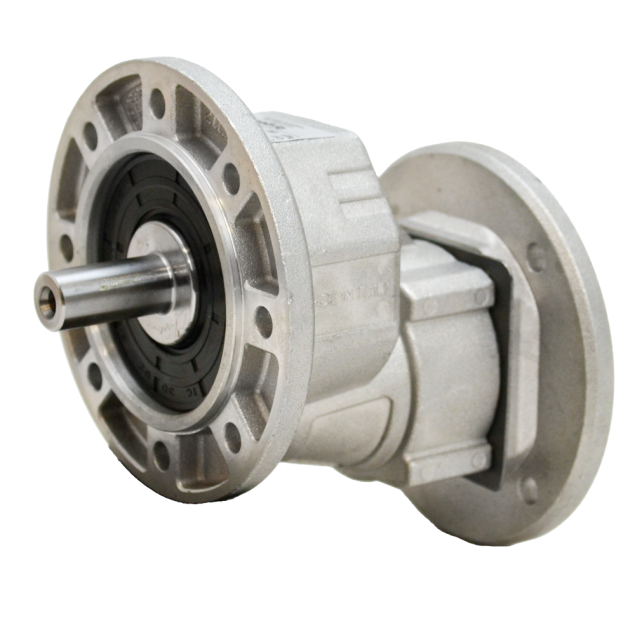

Hydromec 211A, 1 stage coaxial gear, 2,35:1, input 56B14, output 71B14, aluminium
HV80P211A-F02SI-OB3STThis unit features a single gear stage and a reduction ratio of 2.35:1, offering consistent and predictable speed control in drive systems. The gear input shaft diameter is 9 mm, while the output shaft measures 14 mm, suitable for common mechanical coupling arrangements.With a BCD input of 65 mm and BCD output of 85 mm, the gear provides compatibility with standard mounting dimensions. The gear motor interface is 56B14, ensuring straightforward integration into existing setups.The gear housing is constructed from aluminium, contributing to reduced weight and corrosion resistance in demanding environments. It is identified as gear size 211A, indicating its compatibility within the Hydromec modular gear system architecture.The mechanical design delivers a mechanical efficiency of 98%, minimizing energy loss under load conditions.Engineered for direct drive systems and automation applications, the Hydromec 211A offers durability and integration flexibility for technical specialists.
Specifications
Product description
Downloads
€176.00
Made to order
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Aluminium
Ratio
2,35:1
BCD input
65
BCD output
85
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
14
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
211A
Output speed at 1400 RPM
595
Max output torque (Nm)
12
Max kW input at 1400 rpm
0.76
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Hydromec 211A, 1-stage Helical Gearbox, 2.35:1 Ratio, Input 56B14, Output 71B14, AluminiumHydro-Mec is a renowned European manufacturer of high-performance mechanical transmission components. With decades of experience in engineering precision gearboxes, Hydro-Mec is known for combining innovative Italian design with robust, modular construction. Their gear units are designed for reliability, energy efficiency, and versatile integration into modern drive systems—ideal for use in a broad spectrum of industrial automation and processing applications.
• High-Efficiency Transmission – 98%: The gearbox delivers an outstanding 98% mechanical efficiency, reducing energy losses and making it ideal for use in continuous-duty industrial applications where energy optimization is crucial.
• Precision Reduction Ratio of 2.35:1: Offers accurate speed reduction while preserving torque, perfect for precise mechanical motion control in packaging lines, conveyor systems, and textile machinery.
• Compact 1-Stage Gear Design: The single-stage design minimizes mechanical complexity, ensuring higher reliability and a smoother transmission path, making it suitable for high-speed automation tasks.
• Robust Aluminium Housing: Lightweight yet corrosion-resistant cast aluminium gearbox housing ensures thermal efficiency and long-term structural integrity—particularly advantageous in food production environments and outdoor installations.
• Standardized B14 Flange Interface (56B14 Input): Compatible with a wide range of IEC standard motors, which simplifies integration into existing setups across automated manufacturing and processing machinery.
• Optimized Input/Output Shaft Dimensions (Ø9 mm input, Ø14 mm output): Designed for compatibility with a wide range of couplings, clutches, and mechanical drive elements—supporting flexible deployment in conveyor drives, mixers, and precision rotary tables.
• Gear Size 211A – Industrial Modularity: Part of Hydro-Mec’s modular gear system, the 211A size allows for scalable designs and easy replacements in decentralized systems like AGVs, robotic arms, and material handling installations.
• Low-Backlash Helical Gearing: The gear geometry ensures smooth engagement and minimal noise/vibration, making it suitable for precision motion tasks in CNC systems and automated inspection lines.
• Application Versatility: Ideal for use in sectors like intralogistics, pharmaceuticals, bottling lines, and renewable energy where system uptime, efficient power transmission, and customization are essential.
• Hydro-Mec Engineering Excellence: Manufactured in Italy under Hydro-Mec’s stringent ISO-quality procedures, the gearbox benefits from advanced CNC machining and modular design principles that support rapid delivery and application-specific customization.---This product is engineered to meet the demands of modern industrial systems where compactness, modularity, and energy efficiency are key criteria for machine design and operation.
• High-Efficiency Transmission – 98%: The gearbox delivers an outstanding 98% mechanical efficiency, reducing energy losses and making it ideal for use in continuous-duty industrial applications where energy optimization is crucial.
• Precision Reduction Ratio of 2.35:1: Offers accurate speed reduction while preserving torque, perfect for precise mechanical motion control in packaging lines, conveyor systems, and textile machinery.
• Compact 1-Stage Gear Design: The single-stage design minimizes mechanical complexity, ensuring higher reliability and a smoother transmission path, making it suitable for high-speed automation tasks.
• Robust Aluminium Housing: Lightweight yet corrosion-resistant cast aluminium gearbox housing ensures thermal efficiency and long-term structural integrity—particularly advantageous in food production environments and outdoor installations.
• Standardized B14 Flange Interface (56B14 Input): Compatible with a wide range of IEC standard motors, which simplifies integration into existing setups across automated manufacturing and processing machinery.
• Optimized Input/Output Shaft Dimensions (Ø9 mm input, Ø14 mm output): Designed for compatibility with a wide range of couplings, clutches, and mechanical drive elements—supporting flexible deployment in conveyor drives, mixers, and precision rotary tables.
• Gear Size 211A – Industrial Modularity: Part of Hydro-Mec’s modular gear system, the 211A size allows for scalable designs and easy replacements in decentralized systems like AGVs, robotic arms, and material handling installations.
• Low-Backlash Helical Gearing: The gear geometry ensures smooth engagement and minimal noise/vibration, making it suitable for precision motion tasks in CNC systems and automated inspection lines.
• Application Versatility: Ideal for use in sectors like intralogistics, pharmaceuticals, bottling lines, and renewable energy where system uptime, efficient power transmission, and customization are essential.
• Hydro-Mec Engineering Excellence: Manufactured in Italy under Hydro-Mec’s stringent ISO-quality procedures, the gearbox benefits from advanced CNC machining and modular design principles that support rapid delivery and application-specific customization.---This product is engineered to meet the demands of modern industrial systems where compactness, modularity, and energy efficiency are key criteria for machine design and operation.
