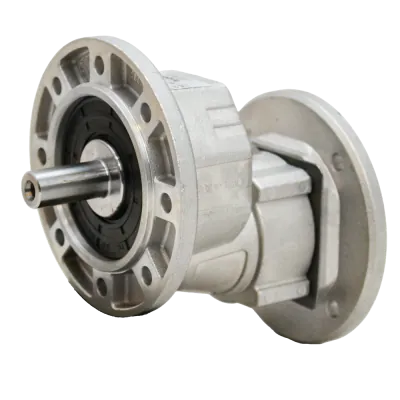

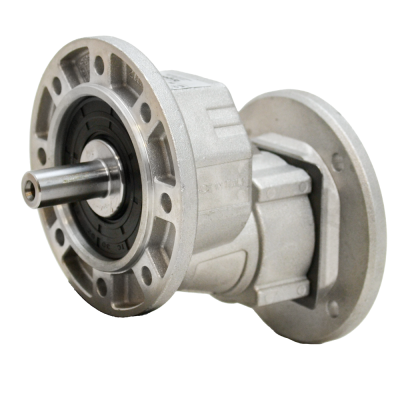

Hydromec 211A, 1 stage coaxial gear, 2,05:1, input 71B14, output 71B14, aluminium
HV80P211A-F01SI-QB3STThis model features a single-stage gear configuration, supporting reliable torque transfer with a gear ratio of 2.05:1. Both input and output shafts have a diameter of 14 mm, ensuring compatibility with standard couplings and alignment systems.The housing is made from aluminium, delivering a balance between structural integrity and low weight, making it suitable for applications where thermal conductivity and corrosion resistance are key factors.The unit is designed for integration with IEC 71B14 motor interfaces at both input and output ends, allowing seamless coupling with compatible gear motors or drive systems. With a gear size of 211A, the reducer supports system modularity and standardization across applications.The mechanical efficiency of 98% provides minimal power loss across the transmission, supporting energy-efficient operations. It accepts a BCD input of 85 mm and has a corresponding BCD output of 85 mm, ensuring a stable and aligned interface for mounting.Ideal for use in automation equipment, material handling systems, and other industrial machinery, this gear reducer prioritizes compatibility, durability, and efficiency without unnecessary complexity.
Specifications
Product description
Downloads
€173.00
Made to order
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Aluminium
Ratio
2,05:1
BCD input
85
BCD output
85
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
14
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
211A
Output speed at 1400 RPM
682
Max output torque (Nm)
10
Max kW input at 1400 rpm
0.73
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Product: Hydromec 211A, 1-Stage helical Gearbox, 2.05:1 Ratio, Input 71B14, Output 71B14, AluminiumProduct Description:
• High Efficiency – With an outstanding mechanical efficiency of up to 98%, the Hydromec 211A gearbox minimizes energy losses, making it ideal for applications seeking energy optimization in automation and production systems.
• Compact, One-Stage Design – This gearbox features a single-stage reduction mechanism, providing a compact footprint, reduced weight, and simplified installation for space-constrained industrial environments.
• Aluminium Housing – Constructed with high-grade aluminium, the gear unit offers a superior strength-to-weight ratio, excellent thermal conductivity, and natural corrosion resistance, well-suited for harsh or humid industrial settings.
• Precision Gear Ratio – The 2.05:1 ratio allows precise speed reduction or torque multiplication, making it suitable for synchronizing drive systems in materials handling, pumps, conveyors, and robotic applications.
• Standardized Gear Motor Interface – Designed with a 71B14 input and output flange, the gearbox ensures compatibility with a wide range of IEC-standard electric motors, allowing flexible integration into existing systems or retrofits.
• Dual Ø14 mm Shafts – Both input and output shafts feature standardized 14 mm diameters, allowing seamless coupling with keyed shafts, pulleys, or couplings in compact mechanical transmission setups.
• Gearbox Size 211A – The compact but robust 211A frame size balances performance with space efficiency, ideal where installation space is at a premium, such as on mobile machines and compact drive modules.
• BCD Matching – With matched bolt circle diameters (BCD input: 85; BCD output: 85), the gearbox ensures easy mounting alignment for maximum mechanical stability and fast installation.
• Versatile Applications – The Hydromec 211A is engineered for industrial automation, process control, packaging machinery, light-duty conveyors, and specialty machine-building tasks that require both efficiency and reliability.
• Low Maintenance Requirements – The gearbox's durable materials, precision engineering, and high-efficiency design contribute to minimal wear and extended service life under continuous-duty operations.
• Lightweight Design – The aluminium casing not only provides corrosion resistance but also helps reduce overall system weight in mobile platforms and automated systems.About the Brand – Hydro-Mec:
• Hydro-Mec is a European manufacturer renowned for its innovation, quality, and precision in gearbox and power transmission solutions. Based in Italy, Hydro-Mec specializes in modular and customizable geared motor units built with precision CNC-machined components. From automation and robotics to food & beverage processing and industrial machinery, Hydro-Mec blends Italian engineering with rugged industrial design to meet stringent performance demands.This technical gearbox is tailored to engineers and systems integrators who seek a high-performance, compact, and adaptable gear solution for automation tasks, mechanical drives, and energy-conscious installations.
• High Efficiency – With an outstanding mechanical efficiency of up to 98%, the Hydromec 211A gearbox minimizes energy losses, making it ideal for applications seeking energy optimization in automation and production systems.
• Compact, One-Stage Design – This gearbox features a single-stage reduction mechanism, providing a compact footprint, reduced weight, and simplified installation for space-constrained industrial environments.
• Aluminium Housing – Constructed with high-grade aluminium, the gear unit offers a superior strength-to-weight ratio, excellent thermal conductivity, and natural corrosion resistance, well-suited for harsh or humid industrial settings.
• Precision Gear Ratio – The 2.05:1 ratio allows precise speed reduction or torque multiplication, making it suitable for synchronizing drive systems in materials handling, pumps, conveyors, and robotic applications.
• Standardized Gear Motor Interface – Designed with a 71B14 input and output flange, the gearbox ensures compatibility with a wide range of IEC-standard electric motors, allowing flexible integration into existing systems or retrofits.
• Dual Ø14 mm Shafts – Both input and output shafts feature standardized 14 mm diameters, allowing seamless coupling with keyed shafts, pulleys, or couplings in compact mechanical transmission setups.
• Gearbox Size 211A – The compact but robust 211A frame size balances performance with space efficiency, ideal where installation space is at a premium, such as on mobile machines and compact drive modules.
• BCD Matching – With matched bolt circle diameters (BCD input: 85; BCD output: 85), the gearbox ensures easy mounting alignment for maximum mechanical stability and fast installation.
• Versatile Applications – The Hydromec 211A is engineered for industrial automation, process control, packaging machinery, light-duty conveyors, and specialty machine-building tasks that require both efficiency and reliability.
• Low Maintenance Requirements – The gearbox's durable materials, precision engineering, and high-efficiency design contribute to minimal wear and extended service life under continuous-duty operations.
• Lightweight Design – The aluminium casing not only provides corrosion resistance but also helps reduce overall system weight in mobile platforms and automated systems.About the Brand – Hydro-Mec:
• Hydro-Mec is a European manufacturer renowned for its innovation, quality, and precision in gearbox and power transmission solutions. Based in Italy, Hydro-Mec specializes in modular and customizable geared motor units built with precision CNC-machined components. From automation and robotics to food & beverage processing and industrial machinery, Hydro-Mec blends Italian engineering with rugged industrial design to meet stringent performance demands.This technical gearbox is tailored to engineers and systems integrators who seek a high-performance, compact, and adaptable gear solution for automation tasks, mechanical drives, and energy-conscious installations.
