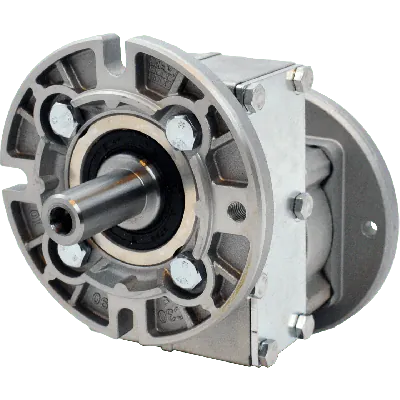

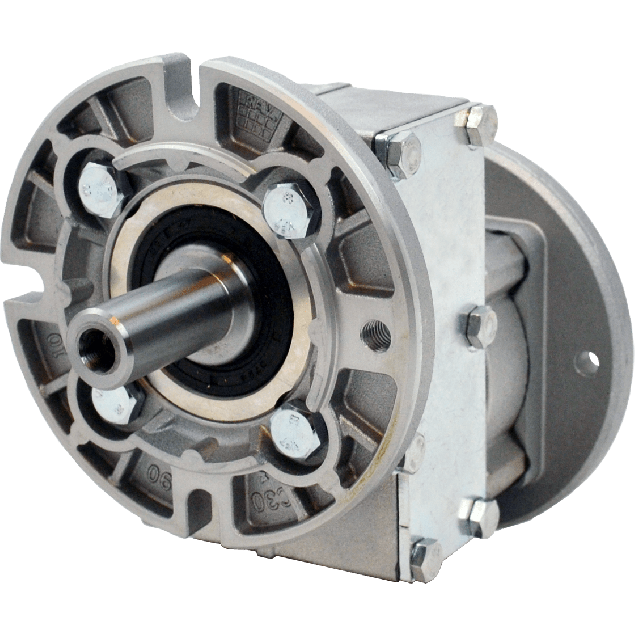

Hydro-Mec 411A, 1 stage coaxial gear, 8,22:1, input 90B14, output 80B14, aluminium

HV80P411A-F07C1-TB3ST

This gear unit is built with the following core specifications:- Gear size: 411A - Gear stages: 1 - Ratio: 8.22:1 - Gear motor interface: 90B14 - BCD input: 115 mm - BCD output: 100 mm - Gear input shaft diameter: 24 mm - Gear output shaft diameter: 19 mm - Efficiency: 98% - Gear material: Aluminium The unit’s housing in aluminium provides a good balance between strength and weight. The input flange is compliant with IEC 90B14 mounting standards, ensuring cross-compatibility with standardized motors, while the compact 1-stage gearing allows for simple integration where space is constrained.This product is suited for applications requiring high efficiency (98%) and a compact footprint while maintaining compatibility with common motor and shaft dimensions.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

HS-Code

84834021.000000

Material

Aluminium

Ratio

8,22:1

BCD input

115

BCD output

100

Gear stages

Efficiency (%)

Gear output shaft (mm)

Gear input shaft (mm)

Gear motor interface

90B14

Gear size

411A

Output speed at 1400 RPM

170

Max output torque (Nm)

Max kW input at 1400 rpm

0.69

Mounting position

Oil

Telium VSF 320

Producer

Hydro-Mec

Description

Hydro-Mec is a trusted Italian manufacturer renowned for its high-quality and modular gear solutions engineered for industrial automation, mechanical transmission, and energy-efficient motion systems. With an emphasis on precision, durability, and flexible configuration, Hydro-Mec products are widely utilized across diverse engineering and production sectors.This specific model, the Hydro-Mec 411A, features a high-performance single-stage helical gear reducer with a precise gear ratio of 8.22:1, designed to meet demanding mechanical requirements in industrial environments.Key Features & Application Benefits:
• High mechanical efficiency of 98% reduces energy losses, enabling optimized drive performance and low operational costs in continuous-duty applications.

• Gearbox body constructed from corrosion-resistant aluminium ensures durability, reduced weight, and excellent thermal conductivity, ideal for dynamic OEM applications and compact machine designs.

• Single-stage gearing (1 stage) provides maximum output torque with minimal complexity, reducing maintenance needs—suitable for conveyors, pumps, and processing machinery.

• Standardized B14 motor interface (input 90B14) simplifies integration with IEC-compatible motors, promoting fast installation, servicing, and motor exchange flexibility among various industrial setups.

• Input shaft diameter of 24 mm and output shaft of 19 mm accommodate typical industrial couplings and facilitate seamless mechanical power transfer.

• Output configuration B14 at 80 mm matches standard mounting flanges, ensuring quick drop-in replacement in existing systems.

• Precision-machined gear components support smooth, low-noise operation—ideal for high-speed automation lines and robotic cells.

• Gear size "411A" fits a wide range of installation footprints and load classes, giving design engineers adaptability across mechanical layouts.
This gearbox is a high-performance solution tailored for engineers and technical specialists seeking reliability, efficiency, and modularity in power transmission systems for manufacturing, automation, and processing industries.
