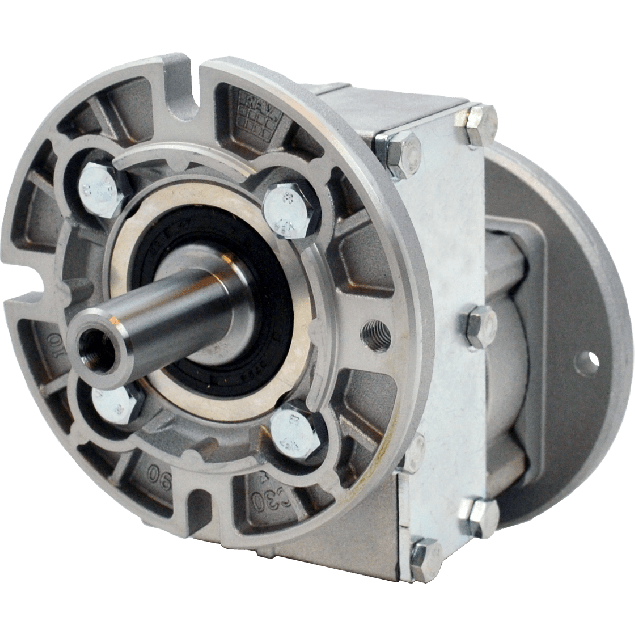

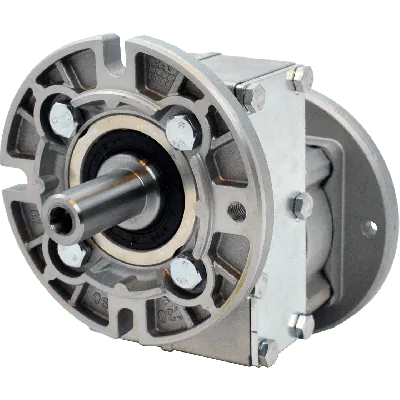

Hydro-Mec 411A, 1 stage coaxial gear, 8,22:1, input 80B14, output 80B14, aluminium
HV80P411A-F07C1-RB3STThis gear unit features a gear ratio of 8.22:1 and is built with a single gear stage, ensuring simple yet effective torque multiplication. It is equipped with a gear input shaft diameter of 19 mm and a gear output shaft diameter of 19 mm, aligning with standard application requirements.The efficiency of 98% supports high mechanical performance with minimal energy loss. The gear motor interface is 80B14, allowing direct connection with compatible IEC motors.With a gear size of 411A and constructed from aluminium, the housing offers a balance between strength and reduced weight, making it suitable for environments where system weight and space are constrained.Electrical interfacing is specified by BCD input: 100 and BCD output: 100, supporting standardised mechanical mounting configurations.This unit is intended for technical installations requiring reliable, minimal-maintenance gear solutions.
Specifications
Product description
Downloads
€213.00
Made to order
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Aluminium
Ratio
8,22:1
BCD input
100
BCD output
100
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
19
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
411A
Output speed at 1400 RPM
170
Max output torque (Nm)
38
Max kW input at 1400 rpm
0.69
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Hydro-Mec is a renowned Italian manufacturer known for producing high-efficiency, modular gear solutions designed for industrial automation, machinery, and process engineering. Their gearboxes offer excellent performance, durability, and versatility, making them a preferred choice among engineers and system designers worldwide. The Hydro-Mec 411A one-stage helical gearbox exemplifies this quality with precision manufacturing, high efficiency, and flexible integration.Key Features and Application Benefits:
High Efficiency of 98% – Provides excellent energy transfer with minimal losses, ideal for continuous-duty industrial applications where power savings and thermal performance are critical.
One-Stage Helical Gear Design – Ensures smooth and quiet operation with higher torque transmission efficiency, perfectly suited for conveyors, material handling, and package processing systems.
Aluminium Housing – Lightweight yet robust casing offers high resistance to corrosion and thermal stress, making it optimal for environments such as food processing, pharmaceutical, and light manufacturing industries.
Gear Ratio 8.22:1 – Precision gear ratio allows speed reduction for high-torque output; widely used in automation, robotics, pump systems, and OEM mechanical systems.
Compact Gear Size 411A – Fits easily into space-constrained applications while maintaining performance integrity, enabling design flexibility in compact machine layouts.
Input and Output Shaft Diameter 19 mm – Standardized shaft dimensions ensure compatibility with a wide range of motors and driven components, simplifying integration into existing systems.
Input & Output Interface 80B14 – B14 flange interface ensures fast mounting with IEC-standard motors, leading to modularity and reduced setup times in OEM and retrofit scenarios.
Hydro-Mec Engineering Compatibility – Modular design allows fast adaptation with other Hydro-Mec components, providing scalable drive systems with minimal redesign.This gearbox is ideal for demanding industrial systems requiring durability, energy efficiency, and precision torque performance.
High Efficiency of 98% – Provides excellent energy transfer with minimal losses, ideal for continuous-duty industrial applications where power savings and thermal performance are critical.
One-Stage Helical Gear Design – Ensures smooth and quiet operation with higher torque transmission efficiency, perfectly suited for conveyors, material handling, and package processing systems.
Aluminium Housing – Lightweight yet robust casing offers high resistance to corrosion and thermal stress, making it optimal for environments such as food processing, pharmaceutical, and light manufacturing industries.
Gear Ratio 8.22:1 – Precision gear ratio allows speed reduction for high-torque output; widely used in automation, robotics, pump systems, and OEM mechanical systems.
Compact Gear Size 411A – Fits easily into space-constrained applications while maintaining performance integrity, enabling design flexibility in compact machine layouts.
Input and Output Shaft Diameter 19 mm – Standardized shaft dimensions ensure compatibility with a wide range of motors and driven components, simplifying integration into existing systems.
Input & Output Interface 80B14 – B14 flange interface ensures fast mounting with IEC-standard motors, leading to modularity and reduced setup times in OEM and retrofit scenarios.
Hydro-Mec Engineering Compatibility – Modular design allows fast adaptation with other Hydro-Mec components, providing scalable drive systems with minimal redesign.This gearbox is ideal for demanding industrial systems requiring durability, energy efficiency, and precision torque performance.
