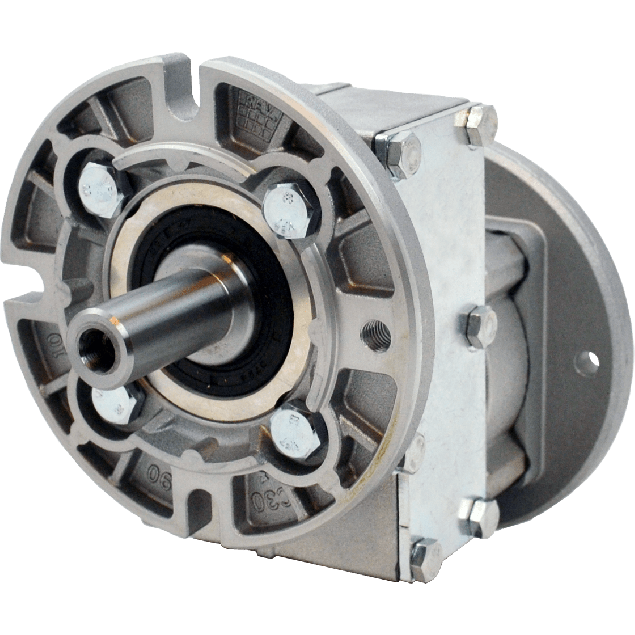

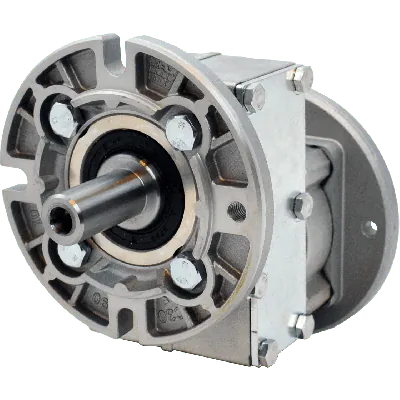

Hydro-Mec 411A, 1 stage coaxial gear, 6,3:1, input 80B14, output 80B14, aluminium

HV80P411A-F06C1-RB3ST

This model features a gear ratio of 6.3:1, providing reliable speed reduction for various drive system configurations. It is built with a single gear stage, ensuring straightforward mechanical layout and minimal maintenance.The gear housing is made of aluminium, allowing for reduced weight without compromising on durability. For input and output, the unit is equipped with a BCD input of 100 mm and a BCD output of 100 mm, enabling seamless interfacing with standard components.Both the input and output shafts measure 19 mm in diameter, contributing to compatibility across a wide range of applications. The unit connects using the gear motor interface 80B14, a common industrial flange size ensuring easy integration.The gear size is 411A, classifying it within Hydro-Mec’s modular product system. It offers a transmission efficiency of 98%, resulting in minimal energy loss during operation.This gear unit is suitable for use in systems where dimensions, mechanical compatibility, and efficiency are essential factors.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

HS-Code

84834021.000000

Material

Aluminium

Ratio

6,3:1

BCD input

100

BCD output

100

Gear stages

Efficiency (%)

Gear output shaft (mm)

Gear input shaft (mm)

Gear motor interface

80B14

Gear size

411A

Output speed at 1400 RPM

222

Max output torque (Nm)

Max kW input at 1400 rpm

1.1

Mounting position

Oil

Telium VSF 320

Producer

Hydro-Mec

Description

Hydro-Mec is a renowned Italian manufacturer specializing in precision-engineered gearboxes for industrial applications. Recognized for their high efficiency, durability, and modular design, Hydro-Mec products are widely trusted by engineers and system integrators across various industries including automation, materials handling, and process control.Key Features, Benefits, and Applications:
High efficiency (98%): Minimizes energy loss during transmission, making it ideal for energy-conscious industrial systems and continuous-duty operations.

Single-stage helical gearing: Ensures smooth, low-noise transmission, suited for high-performance applications such as conveyors, mixers, and motion control mechanisms.

6.3:1 gear ratio: Provides optimized torque-speed conversion, appropriate for moderate speed reduction needs in both dynamic and static load environments.

Gearbox size 411A: Provides compact dimensions while sustaining robust torque output, enabling easy integration in limited-space mechanical setups.

Aluminium housing: Lightweight yet corrosion-resistant design supports thermal efficiency and long product life in both indoor and outdoor installations.

80B14 motor interface: Standardized flange mounting simplifies coupling with a wide range of IEC motors, facilitating rapid assembly and replacement during maintenance.

19 mm input and output shafts: Ensures interchangeability with common transmission systems, simplifying design adaptations and reducing downtime.

Designed by Hydro-Mec: Built under strict quality control in Europe, ensuring reliability, modular flexibility, and compliance with industrial standards.

Application Suitability: Perfectly suited for use in automated production lines, packaging machinery, warehouse automation, OEM systems, and light-to-medium duty mechanical drives.
This gearbox combines precision engineering with practical adaptability, making it a solid choice for engineers seeking reliable, efficient, and easy-to-integrate drive solutions.
