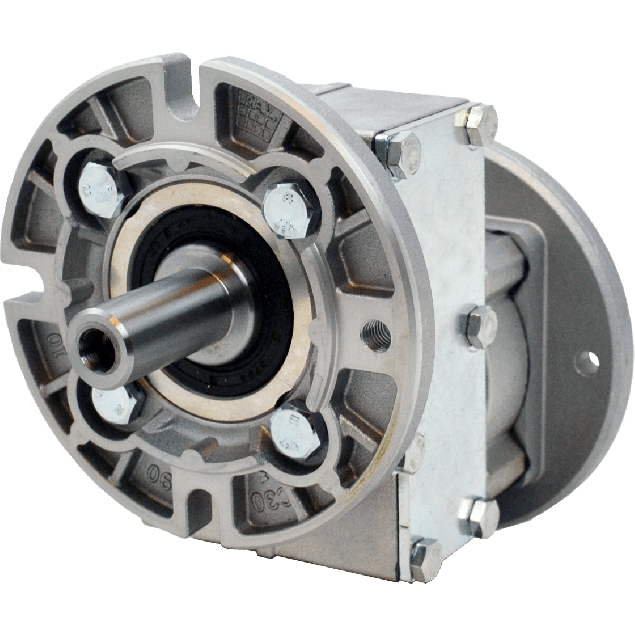

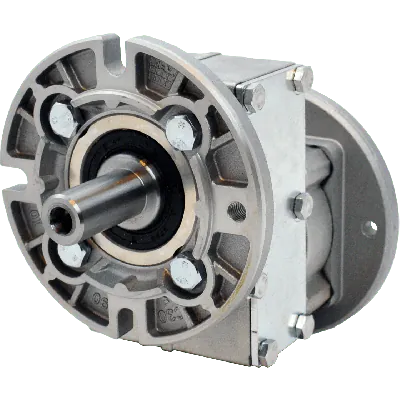

Hydro-Mec 411A, 1 stage coaxial gear, 4,62:1, input 71B14, output 80B14, aluminium
HV80P411A-F05C1-QB3STThis gear unit features a single-stage gear design with a gear ratio of 4.62:1, making it suitable for applications requiring moderate speed reduction with high mechanical efficiency. The mechanical efficiency is 98%, supporting energy-efficient system integration.The gearbox is manufactured with a housing made from aluminium, which provides a lightweight and corrosion-resistant solution. It uses a gear size of 411A and includes input and output shafts with diameters of 14 mm and 19 mm respectively.Other key specifications include:- Gear motor interface: 71B14 - Output compatibility: BCD 100 - Input bolt circle diameter (BCD): 85 - Output mounting BCD: 100 - Gear output interface: 80B14 - Number of gear stages: 1 The Hydro-Mec 411A gear unit is suitable for use in automation systems, machinery, and equipment where standardized motor interface and torque transmission are critical.
Specifications
Product description
Downloads
€213.00
Made to order
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Aluminium
Ratio
4,62:1
BCD input
85
BCD output
100
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
19
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
411A
Output speed at 1400 RPM
303
Max output torque (Nm)
47
Max kW input at 1400 rpm
1.5
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Hydro-Mec is a trusted European manufacturer renowned for its precision-engineered gear units and modular gear solutions, designed to meet demanding performance standards in industrial applications. With production rooted in Italy and a strong commitment to innovation and quality, Hydro-Mec products deliver reliability, versatility, and efficiency for engineers and technical specialists worldwide.Key features and application benefits:
High mechanical efficiency of 98% – ensures minimal power loss, maximizing energy transfer in high-performance industrial systems.
Compact one-stage gear construction (1 gear stage) – ideal for applications requiring low reduction ratios with limited installation space.
Gear ratio of 4.62:1 – optimized for torque conversion in automation, packaging, and light processing machinery.
Input interface 71B14 – compatible with standardized IEC motors, allowing seamless integration into existing drive systems.
Output interface 80B14 – provides flexibility and quick coupling with downstream mechanical systems.
Sturdy aluminium housing – lightweight yet durable, excellent for environments where weight and corrosion resistance are crucial (e.g. food processing, HVAC systems).
Input shaft diameter of 14 mm and output shaft diameter of 19 mm – sized for medium-load applications with consistent torque transmission.
Gear unit size 411A – balances performance with compact dimensions, perfect for decentralized drives.
Designed for industrial engineers – ideal solution for drive systems in conveyors, rotary tables, control systems, light robotics, and automated material handling.
Hydro-Mec’s modular gear design – accelerates system configuration and replacements, reducing maintenance time and operational downtime.This gear unit is engineered for technical experts seeking performance, compactness, and adaptability in modern industrial machinery.
High mechanical efficiency of 98% – ensures minimal power loss, maximizing energy transfer in high-performance industrial systems.
Compact one-stage gear construction (1 gear stage) – ideal for applications requiring low reduction ratios with limited installation space.
Gear ratio of 4.62:1 – optimized for torque conversion in automation, packaging, and light processing machinery.
Input interface 71B14 – compatible with standardized IEC motors, allowing seamless integration into existing drive systems.
Output interface 80B14 – provides flexibility and quick coupling with downstream mechanical systems.
Sturdy aluminium housing – lightweight yet durable, excellent for environments where weight and corrosion resistance are crucial (e.g. food processing, HVAC systems).
Input shaft diameter of 14 mm and output shaft diameter of 19 mm – sized for medium-load applications with consistent torque transmission.
Gear unit size 411A – balances performance with compact dimensions, perfect for decentralized drives.
Designed for industrial engineers – ideal solution for drive systems in conveyors, rotary tables, control systems, light robotics, and automated material handling.
Hydro-Mec’s modular gear design – accelerates system configuration and replacements, reducing maintenance time and operational downtime.This gear unit is engineered for technical experts seeking performance, compactness, and adaptability in modern industrial machinery.
