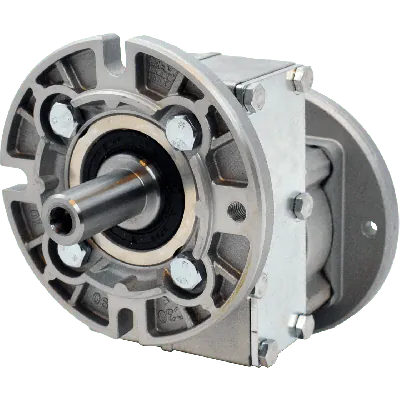

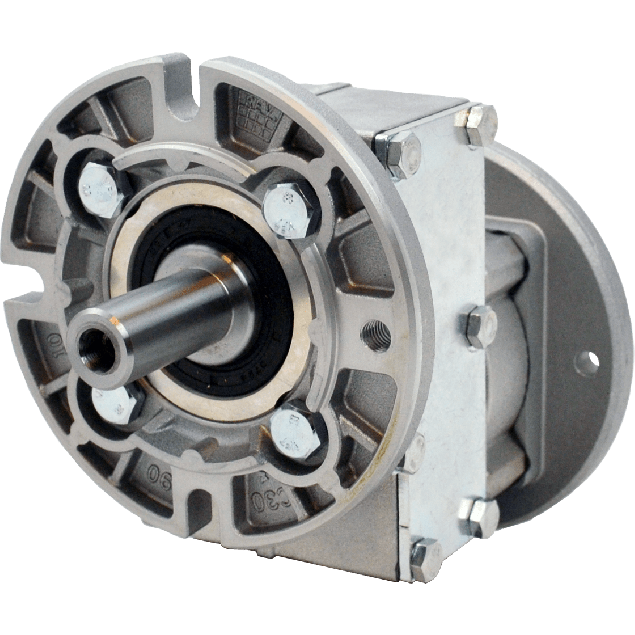

Hydro-Mec 411A, 1 stage coaxial gear, 3,87:1, input 90B14, output 80B14, aluminium
HV80P411A-F04C1-TB3STThis gearbox features a single gear stage, enabling a ratio of 3.87:1, which provides reliable torque transmission with minimal complexity. The efficiency of 98% ensures minimal power loss during operation, which is essential for energy-conscious systems.Constructed from aluminium, the housing provides a balance between strength and low weight, making it suitable for applications where thermal conductivity and corrosion resistance are important. The gearbox is built with a gear size of 411A and supports a BCD input of 115 mm and a BCD output of 100 mm.The gear input shaft measures 24 mm and interfaces with a 90B14 input flange, while the output shaft measures 19 mm and is designed for an 80B14 output flange. These standardized interfaces allow for easy integration with a wide range of motor configurations.The Hydro-Mec 411A is a practical choice for engineers looking for a robust, easy-to-integrate gear solution with proven reliability and efficient performance.
Specifications
Product description
Downloads
€215.00
Made to order
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Aluminium
Ratio
3,87:1
BCD input
115
BCD output
100
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
19
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
411A
Output speed at 1400 RPM
362
Max output torque (Nm)
40
Max kW input at 1400 rpm
1.5
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Below is a detailed breakdown of the key features, their benefits, and potential applications of the Hydro-Mec 411A single-stage gear unit:
High mechanical efficiency of 98% ensures minimal power loss, translating into enhanced energy savings and lower operational costs in continuous-duty cycles.
Single-stage gear design (1 stage) simplifies the transmission path, reducing mechanical complexity, increasing reliability, and minimizing maintenance requirements, ideal for compact industrial setups.
Gear ratio of 3.87:1 delivers efficient torque multiplication while maintaining steady speed control, making it suitable for conveyor systems, packaging lines, and automated handling equipment.
Aluminium housing provides excellent strength-to-weight ratio, optimizing weight reduction without sacrificing durability – perfect for dynamic mounting and mobile machinery.
Input shaft diameter of 24 mm and output shaft diameter of 19 mm allow precise integration with standardized drive components for streamlined mechanical compatibility.
Compatible with 90B14 motor flange on the input side, enabling fast installation with IEC standard motors commonly used in industrial environments.
Compact gear size 411A supports installations with limited footprint constraints while delivering high torque density.
Output interface 80B14 offers flexible downstream connectivity, streamlining design for modular systems and custom machinery.
Engineered for applications requiring stable, long-life operation, such as food processing equipment, light-duty automation, and pump systems.
Produced by Hydro-Mec, a trusted European brand with ISO-certified manufacturing processes and a strong reputation among OEMs and system integrators. This gear unit exemplifies high performance in a compact, service-friendly form, tailored to meet the rigorous standards of engineering-driven industries.
High mechanical efficiency of 98% ensures minimal power loss, translating into enhanced energy savings and lower operational costs in continuous-duty cycles.
Single-stage gear design (1 stage) simplifies the transmission path, reducing mechanical complexity, increasing reliability, and minimizing maintenance requirements, ideal for compact industrial setups.
Gear ratio of 3.87:1 delivers efficient torque multiplication while maintaining steady speed control, making it suitable for conveyor systems, packaging lines, and automated handling equipment.
Aluminium housing provides excellent strength-to-weight ratio, optimizing weight reduction without sacrificing durability – perfect for dynamic mounting and mobile machinery.
Input shaft diameter of 24 mm and output shaft diameter of 19 mm allow precise integration with standardized drive components for streamlined mechanical compatibility.
Compatible with 90B14 motor flange on the input side, enabling fast installation with IEC standard motors commonly used in industrial environments.
Compact gear size 411A supports installations with limited footprint constraints while delivering high torque density.
Output interface 80B14 offers flexible downstream connectivity, streamlining design for modular systems and custom machinery.
Engineered for applications requiring stable, long-life operation, such as food processing equipment, light-duty automation, and pump systems.
Produced by Hydro-Mec, a trusted European brand with ISO-certified manufacturing processes and a strong reputation among OEMs and system integrators. This gear unit exemplifies high performance in a compact, service-friendly form, tailored to meet the rigorous standards of engineering-driven industries.
