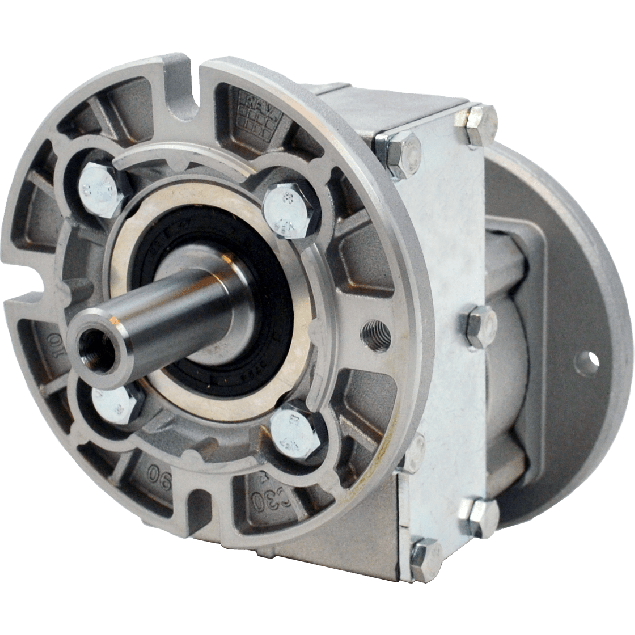

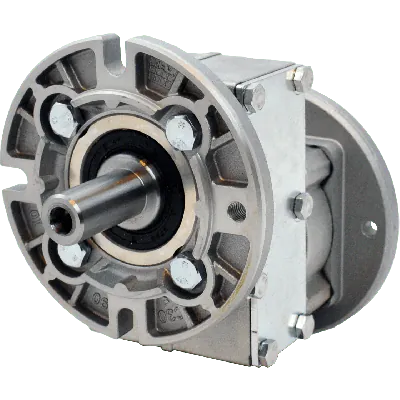

Hydro-Mec 411A, 1 stage coaxial gear, 3,87:1, input 80B14, output 80B14, aluminium

HV80P411A-F04C1-RB3ST

This gear reducer features a gear ratio of 3.87:1 and delivers a high mechanical efficiency of 98%, making it suitable for use in energy-sensitive environments.Both the gear input shaft and output shaft measure 19 mm, ensuring simplicity in mechanical integration. The unit uses a standard gear motor interface of type 80B14, facilitating compatibility with a broad range of IEC motors.Constructed with a gear housing made from aluminium, the Hydro-Mec 411A offers a lightweight and corrosion-resistant solution, while maintaining structural integrity during operation. It belongs to gear size code 411A and incorporates 1 gear stage for straightforward speed reduction and torque transmission.Designed with BCD input: 100 and BCD output: 100, it allows for easy mounting and alignment within standardized mechanical setups.This product is ideal for integration in systems requiring compact gearing with reliable performance and standard interface compatibility.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

HS-Code

84834021.000000

Material

Aluminium

Ratio

3,87:1

BCD input

100

BCD output

100

Gear stages

Efficiency (%)

Gear output shaft (mm)

Gear input shaft (mm)

Gear motor interface

80B14

Gear size

411A

Output speed at 1400 RPM

362

Max output torque (Nm)

Max kW input at 1400 rpm

1.5

Mounting position

Oil

Telium VSF 320

Producer

Hydro-Mec

Description

• High-Efficiency Performance: With an energy efficiency rating of 98%, the Hydro-Mec 411A minimizes energy loss, making it ideal for systems where long-hours operation and energy savings are a priority.

• Durable Aluminium Housing: The lightweight yet robust aluminium gear casing offers excellent thermal conductivity and corrosion resistance, making it suitable for use in both clean and moderately harsh environments.

• Versatile Gear Motor Interface (80B14): Standardized 80B14 input interface ensures seamless compatibility with IEC motors, reducing integration time and enabling flexible motor selection.

• Compact Gear Size (411A): The compact footprint makes the 411A perfect for installations with limited space without compromising on torque transmission capabilities.

• Precision Ratio (3.87:1): This optimized reduction ratio allows for effective speed modulation in conveyors, packaging equipment, and process machinery requiring controlled motion.

• Identical Input and Output Shaft Dimensions (19 mm): Simplifies alignment and coupling requirements in applications requiring co-axial or in-line drive configurations.

• Single-Stage Gear Design: Featuring a one-stage gear mechanism, the unit provides low backlash and high torque density, perfect for high-precision industrial settings.

• Application Scope: Well-suited for engineering systems in automation, material handling, food processing, and light to medium-duty drive systems where consistent torque and precision are required.
Hydro-Mec continues to be a preferred choice among technical professionals and OEMs across Europe due to its commitment to high-quality manufacturing and modular design flexibility. The 411A gearbox exemplifies this reputation with superior simplicity, adaptability, and performance in industrial drivetrain solutions.
