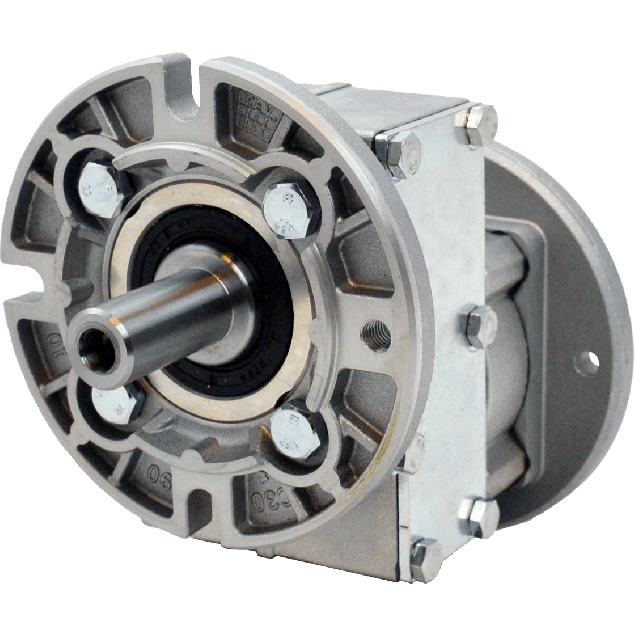

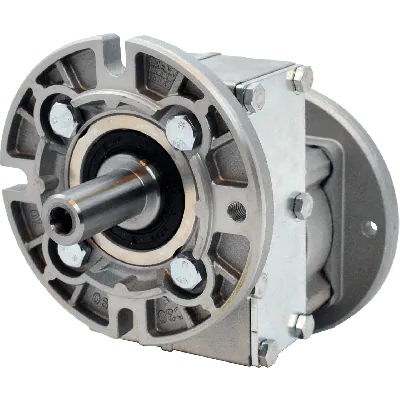

Hydro-Mec 411A, 1 stage coaxial gear, 2,84:1, input 90B14, output 80B14, aluminium
HV80P411A-F02C1-TB3STThis gear unit features a 1-stage transmission with a gear ratio of 2.84:1, delivering reliable torque conversion in a wide range of setups. It is built with a gear housing of aluminium, ensuring lightweight construction and corrosion resistance.The gear size is 411A, providing a balanced combination of performance and design envelope. The unit is equipped with a 90B14 gear motor interface on the input side and an 80B14 output flange configuration, enabling compatibility with standardized motor and driven components.The input shaft diameter is 24 mm while the output shaft diameter is 19 mm. The design includes BCD input and output dimensions of 115 and 100 mm respectively, allowing seamless system integration.With an operational efficiency of 98%, the Hydro-Mec 411A supports energy-efficient operation and reduced thermal losses. Its straightforward architecture and one gear stage reduce complexity and maintenance requirements.This gear unit is suitable for engineers seeking a reliable, no-excess option for machinery requiring basic speed reduction and torque adaptation in compact mechanical environments.
Specifications
Product description
Downloads
€215.00
Made to order
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Aluminium
Ratio
2,84:1
BCD input
115
BCD output
100
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
19
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
411A
Output speed at 1400 RPM
493
Max output torque (Nm)
35
Max kW input at 1400 rpm
1.8
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Below is an overview of the Hydro-Mec 411A 1-stage helical gearbox, highlighting key features, advantages, and potential application areas:
High Efficiency – With a mechanical efficiency of 98%, the Hydro-Mec 411A gearbox ensures minimal energy loss during power transmission, ideal for energy-sensitive applications and maximizing motor output.
High-Precision Gear Ratio – The 2.84:1 ratio allows precise speed reduction and torque multiplication, particularly suitable for automation systems, conveyors, and material handling equipment.
Durable Aluminium Housing – Constructed from lightweight yet corrosion-resistant aluminium, this gear unit is optimal for environments requiring both durability and weight reduction, such as robotics or mobile machinery.
Compact Build – The gear size 411A and integrated 1-stage setup make this a space-saving solution that fits seamlessly into machines with limited installation space.
Motor Interface Flexibility – Designed with a 90B14 input flange, it allows quick and accurate motor integration, reducing assembly time and ensuring alignment accuracy in OEM setups.
Robust Output Shaft – The 19 mm output shaft diameter supports seamless coupling with driven components and ensures consistent torque transmission even under load cycles.
High Input Capacity – The 24 mm input shaft and 115 BCD accommodate significant input torque, making it ideal for mid-sized electric motors used in modular systems.
Versatile Application Range – Suitable for use in packaging lines, automated production cells, light-duty conveyor systems, and process machinery across automotive, food processing, and material handling industries.
Italian Engineering Excellence – Manufactured by Hydro-Mec in compliance with international standards, ensuring a long service life, low noise operation, and minimal maintenance requirements.
High Efficiency – With a mechanical efficiency of 98%, the Hydro-Mec 411A gearbox ensures minimal energy loss during power transmission, ideal for energy-sensitive applications and maximizing motor output.
High-Precision Gear Ratio – The 2.84:1 ratio allows precise speed reduction and torque multiplication, particularly suitable for automation systems, conveyors, and material handling equipment.
Durable Aluminium Housing – Constructed from lightweight yet corrosion-resistant aluminium, this gear unit is optimal for environments requiring both durability and weight reduction, such as robotics or mobile machinery.
Compact Build – The gear size 411A and integrated 1-stage setup make this a space-saving solution that fits seamlessly into machines with limited installation space.
Motor Interface Flexibility – Designed with a 90B14 input flange, it allows quick and accurate motor integration, reducing assembly time and ensuring alignment accuracy in OEM setups.
Robust Output Shaft – The 19 mm output shaft diameter supports seamless coupling with driven components and ensures consistent torque transmission even under load cycles.
High Input Capacity – The 24 mm input shaft and 115 BCD accommodate significant input torque, making it ideal for mid-sized electric motors used in modular systems.
Versatile Application Range – Suitable for use in packaging lines, automated production cells, light-duty conveyor systems, and process machinery across automotive, food processing, and material handling industries.
Italian Engineering Excellence – Manufactured by Hydro-Mec in compliance with international standards, ensuring a long service life, low noise operation, and minimal maintenance requirements.
