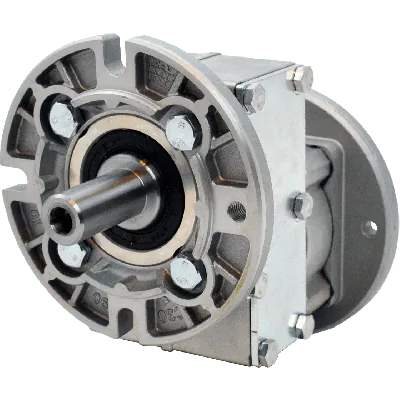

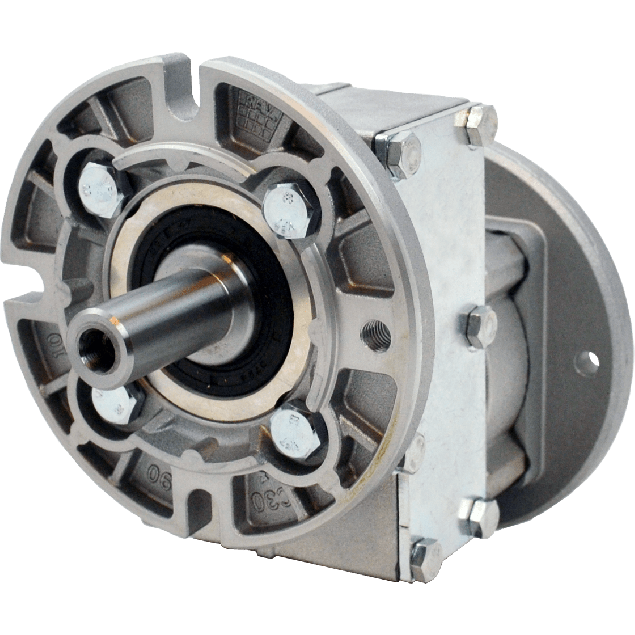

Hydro-Mec 411A, 1 stage coaxial gear, 10,86:1, input 80B14, output 80B14, aluminium
HV80P411A-F08C1-RB3STThis product features a gear ratio of 10.86:1, offering suitable speed reduction in demanding applications. With a single gear stage, it ensures minimal mechanical complexity.The unit is built with aluminium gear housing, providing a balance between low weight and structural integrity. Both the input and output shafts are 19 mm in diameter, enabling straightforward mechanical integration.Designed for compatibility with standard motor flanges, it offers a gear motor interface of 80B14 on both the input and output sides. The gear size is 411A, enabling installation in standardised envelope dimensions.The gearbox has a BCD input and output of 100 mm, providing consistent bolt circle compatibility. With a mechanical efficiency of 98%, the unit minimizes power loss during operation.This makes the Hydro-Mec 411A suitable for a wide range of industrial and automation systems where reliability, compactness, and straightforward integration are essential.
Specifications
Product description
Downloads
€213.00
Made to order
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Aluminium
Ratio
10,86:1
BCD input
100
BCD output
100
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
19
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
411A
Output speed at 1400 RPM
129
Max output torque (Nm)
28
Max kW input at 1400 rpm
0.39
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
The Hydro-Mec 411A is a high-efficiency, single-stage helical gear unit with a gear ratio of 10.86:1. Manufactured in Italy, Hydro-Mec is globally recognized for its modular gear solutions that combine precision, durability, and optimal performance in demanding industrial environments. With over 40 years of engineering excellence, Hydro-Mec provides gearboxes tailored to the needs of automation, mechanical handling, and process industries.
High Efficiency (98%): The unit’s exceptional mechanical efficiency helps reduce energy consumption across continuous-duty operations, contributing directly to system performance and cost savings in energy-intensive applications.
Compact Aluminium Housing: Lightweight yet rugged aluminium construction enables corrosion resistance and excellent heat dissipation, ideal for hygienic or washdown environments like food processing or pharmaceutical manufacturing.
Standardized B14 Flange Interface (Input/Output): Compatible with 80B14 motor flanges on both input and output sides for easy integration into existing motion systems, reducing installation time and increasing modularity in design workflows.
Precision-Ground Helical Gearing: The single-stage design ensures smooth torque transmission with minimal backlash, particularly suited for conveyor systems, automated machinery, and robotics.
Input/Output Shaft Diameter 19 mm: Optimized for medium-load applications in production lines, packaging systems, and indexing mechanisms, allowing for simple mechanical coupling with drive and driven components.
Ratio 10.86:1: Enables torque amplification while maintaining rotational speed control, offering precise motor adaptation in dynamic load conditions common in technical manufacturing operations.
Gear Size 411A: Designed to handle balanced radial loads and provide operational consistency in a broad range of industrial setups, from light-duty automation to mid-range mechanical schemes.
Hydro-Mec reliability: Manufactured under strict ISO certifications, Hydro-Mec gearboxes are trusted globally for their long lifecycle, minimal maintenance requirements, and modular interchangeability.
High Efficiency (98%): The unit’s exceptional mechanical efficiency helps reduce energy consumption across continuous-duty operations, contributing directly to system performance and cost savings in energy-intensive applications.
Compact Aluminium Housing: Lightweight yet rugged aluminium construction enables corrosion resistance and excellent heat dissipation, ideal for hygienic or washdown environments like food processing or pharmaceutical manufacturing.
Standardized B14 Flange Interface (Input/Output): Compatible with 80B14 motor flanges on both input and output sides for easy integration into existing motion systems, reducing installation time and increasing modularity in design workflows.
Precision-Ground Helical Gearing: The single-stage design ensures smooth torque transmission with minimal backlash, particularly suited for conveyor systems, automated machinery, and robotics.
Input/Output Shaft Diameter 19 mm: Optimized for medium-load applications in production lines, packaging systems, and indexing mechanisms, allowing for simple mechanical coupling with drive and driven components.
Ratio 10.86:1: Enables torque amplification while maintaining rotational speed control, offering precise motor adaptation in dynamic load conditions common in technical manufacturing operations.
Gear Size 411A: Designed to handle balanced radial loads and provide operational consistency in a broad range of industrial setups, from light-duty automation to mid-range mechanical schemes.
Hydro-Mec reliability: Manufactured under strict ISO certifications, Hydro-Mec gearboxes are trusted globally for their long lifecycle, minimal maintenance requirements, and modular interchangeability.
