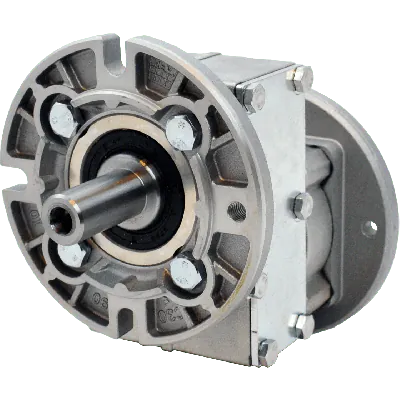

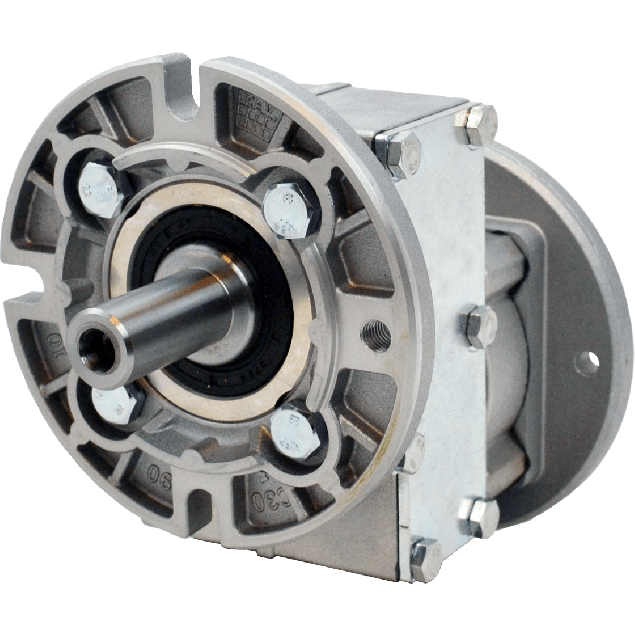

Hydro-Mec 411A, 1 stage coaxial gear, 1,57:1, input 90B14, output 80B14, aluminium

HV80P411A-F01C1-TB3ST

This unit offers a gear ratio of 1.57:1, enabling speed reduction and torque multiplication suitable for various applications with moderate torque demands. With only 1 gear stage, the design ensures low mechanical complexity and high reliability.The gear housing is constructed from aluminium, providing a robust and lightweight structure with good thermal dissipation. A key feature is the efficiency of 98%, reducing energy loss and contributing to overall system performance.It features a BCD input of 115 and a gear input shaft diameter of 24 mm, supporting compatibility with standard IEC motor flanges. The gear motor interface is 90B14, and the output side is configured with an output BCD of 100 and a gear output shaft diameter of 19 mm, facilitating straightforward integration with downstream equipment.The unit is part of the 411A gear size series, which offers standardized geometries and mounting patterns for modular adaptability across applications.This gear unit is designed for engineers and technical professionals requiring a durable, high-efficiency solution with minimal footprint and ease of installation.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

HS-Code

84834021.000000

Material

Aluminium

Ratio

1,57:1

BCD input

115

BCD output

100

Gear stages

Efficiency (%)

Gear output shaft (mm)

Gear input shaft (mm)

Gear motor interface

90B14

Gear size

411A

Output speed at 1400 RPM

891

Max output torque (Nm)

Max kW input at 1400 rpm

1.9

Mounting position

Oil

Telium VSF 320

Producer

Hydro-Mec

Description

Below is a detailed product overview of the Hydro-Mec 411A single-stage helical gearbox (SKU: Hydro-Mec 411A, 1 trins tandhjulsgear, 1,57:1, indgang 90B14, afgang 80B14, aluminium), focusing on its features, advantages, and application areas:
High Efficiency of 98% minimizes energy loss and heat generation, making the gearbox ideal for continuous-duty industrial applications.

Single gear stage design with a 1.57:1 ratio ensures compact installation with low backlash—perfect for precision-driven processes and servo systems.

Robust 411A size housing made of durable aluminum provides excellent corrosion resistance, reducing maintenance in harsh environments such as food processing or chemical plants.

Input interface via standard 90B14 flange allows easy integration with IEC motors and servo drives for quick assembly and modularity in automation systems.

Output shaft diameter of 19 mm combines strength and compatibility with a wide range of driven components like conveyors, pumps, and rotary devices.

Input shaft diameter of 24 mm ensures secure power transmission even at high torque loads, making it suitable for mechanical handling systems and packing machines.

High precision gear grinding and alignment guarantee minimal vibration and extended lifetime—ideal for precision machinery, robotics, and CNC applications.

BCD Input of 115 mm and BCD Output of 100 mm ensures compatibility with industry-standard thermally stable encoder mounts and couplings.

Lightweight aluminum housing reduces overall system weight, supporting mobile machinery and transport systems.

Modular construct enables quick replacement or upgrading of components on-site, increasing uptime in production environments.
This gearbox is engineered for professionals demanding performance, efficiency, and configurability across sectors such as automation, packaging, materials handling, and OEM machinery design.
