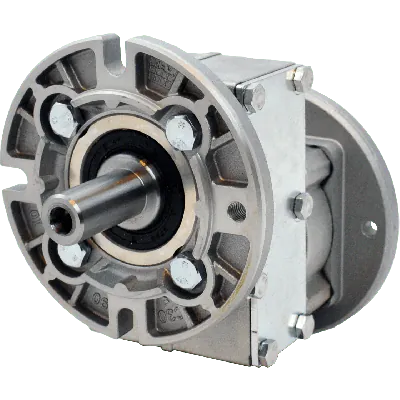

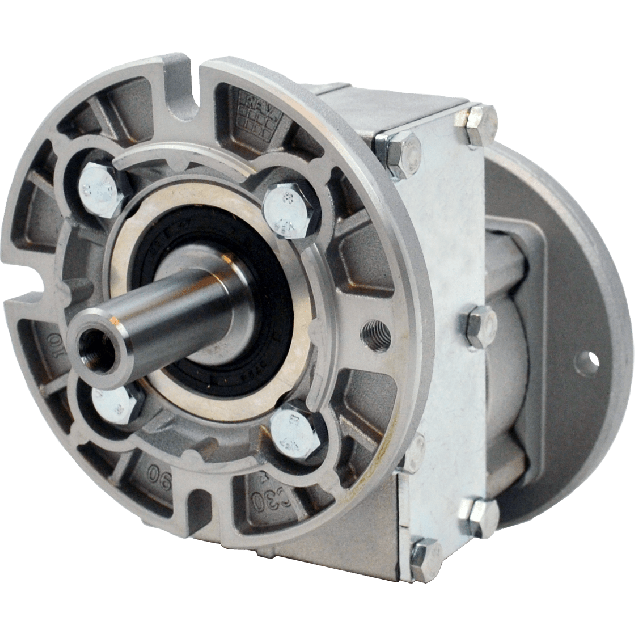

Hydro-Mec 411A, 1 stage coaxial gear, 1,57:1, input 80B14, output 80B14, aluminium
HV80P411A-F01C1-RB3STThis gear unit features a gear ratio of 1.57:1, allowing for calibrated speed reduction in drive systems. It comes with a single gear stage, ensuring straightforward operation and minimal internal complexity.Constructed with a gear housing made from aluminium, it combines low weight with adequate structural strength. The gear size is 411A, which supports standardized mechanical integration across multiple drive configurations.The input and output shafts both measure 19 mm in diameter, facilitating direct coupling to compatible motor and driven components. Designed for modularity, the unit supports a gear motor interface of 80B14 on both the input and output for efficient assembly and interchangeability.Hydro-Mec 411A delivers high operating efficiency with a measured efficiency of 98%, minimizing energy loss and heat generation during operation.Both the BCD input and BCD output are 100 mm, providing standard bolt circle diameters for ease of mounting and alignment in system designs.This gear unit is suitable for integration in industrial automation, material handling, and process equipment where consistent torque transmission and space-efficient installation are required.
Specifications
Product description
Downloads
€213.00
Made to order
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Aluminium
Ratio
1,57:1
BCD input
100
BCD output
100
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
19
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
411A
Output speed at 1400 RPM
891
Max output torque (Nm)
20
Max kW input at 1400 rpm
1.9
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Developed by Hydro-Mec, a recognized European leader in precision gearbox engineering, the 411A helical gearbox embodies the brand’s commitment to durability, efficiency, and seamless modular integration. Hydro-Mec is known for manufacturing highly adaptable and robust gear solutions designed for demanding industrial automation and mechanical systems. This gearbox is made in compliance with international quality standards and optimized for operational excellence in compact spaces.
Single-Stage Helical Reduction (Ratio 1.57:1): Enables direct speed reduction with minimal loss in performance, ideal for applications requiring high input speeds with controlled output torque.
High Mechanical Efficiency (98%): Reduces energy consumption while maximizing output effectiveness, contributing to overall plant efficiency in continuous-duty industrial systems.
Precision-Cut Gears in Aluminium Housing: Lightweight but robust construction provides excellent corrosion resistance and thermal conductivity, making it suitable for both dynamic and stationary installations in aggressive environmental conditions.
Compact Size – Gearbox Type 411A: Offers space-saving installation in control cabinets or limited spatial environments, without compromising mechanical stability or thermal performance.
Standardized Gear Motor Interface – 80B14: Ensures universal compatibility with IEC-standard motors, accelerating installation times and simplifying maintenance for OEMs and integrators.
Identical Input and Output Shaft Diameters (⌀19 mm): Allows straightforward alignment in applications demanding symmetrical rotary components, such as conveyor systems or pump drives.
BCD-Compatible Input and Output (100 mm): Facilitates modular configuration and direct mounting flexibility for engineers building custom machinery or retrofitting current systems.
Ideal for Automation, Packaging and Processing Industries: Serves in high-speed applications where reliability, efficiency, and compact design are critical, such as robotic joints, labeling machines, or light-duty material handling.
Single-Stage Helical Reduction (Ratio 1.57:1): Enables direct speed reduction with minimal loss in performance, ideal for applications requiring high input speeds with controlled output torque.
High Mechanical Efficiency (98%): Reduces energy consumption while maximizing output effectiveness, contributing to overall plant efficiency in continuous-duty industrial systems.
Precision-Cut Gears in Aluminium Housing: Lightweight but robust construction provides excellent corrosion resistance and thermal conductivity, making it suitable for both dynamic and stationary installations in aggressive environmental conditions.
Compact Size – Gearbox Type 411A: Offers space-saving installation in control cabinets or limited spatial environments, without compromising mechanical stability or thermal performance.
Standardized Gear Motor Interface – 80B14: Ensures universal compatibility with IEC-standard motors, accelerating installation times and simplifying maintenance for OEMs and integrators.
Identical Input and Output Shaft Diameters (⌀19 mm): Allows straightforward alignment in applications demanding symmetrical rotary components, such as conveyor systems or pump drives.
BCD-Compatible Input and Output (100 mm): Facilitates modular configuration and direct mounting flexibility for engineers building custom machinery or retrofitting current systems.
Ideal for Automation, Packaging and Processing Industries: Serves in high-speed applications where reliability, efficiency, and compact design are critical, such as robotic joints, labeling machines, or light-duty material handling.
