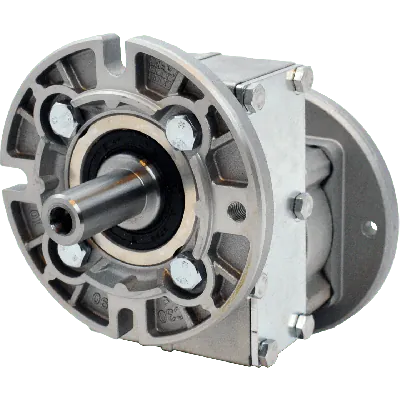

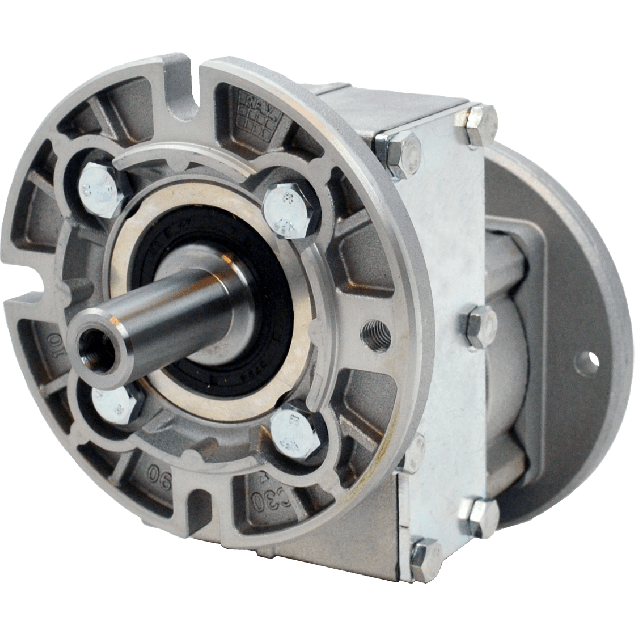

Hydro-Mec 411A, 1 stage coaxial gear, 1,57:1, input 71B14, output 80B14, aluminium
HV80P411A-F01C1-QB3STThis gear unit features a 1-stage configuration, providing a gear ratio of 1.57:1 for balanced speed and torque conversion. It offers 98% efficiency, ensuring minimal power loss during transmission.Constructed with a gear housing material: aluminium, the unit offers a lightweight yet rigid structure suitable for a wide range of applications. The gear size is 411A, offering compatibility with standard motor and drive systems.The input connection is designed for a gear motor interface: 71B14 and features a gear input shaft diameter: 14 mm. The output side is configured for BCD output: 100 mm with a gear output shaft diameter: 19 mm, while the BCD input is 85 mm.This gearbox is well-suited for use in automation systems, mechanical plant setups, and custom drive assemblies requiring consistent performance.
Specifications
Product description
Downloads
€213.00
Made to order
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Aluminium
Ratio
1,57:1
BCD input
85
BCD output
100
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
19
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
411A
Output speed at 1400 RPM
891
Max output torque (Nm)
20
Max kW input at 1400 rpm
1.9
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Hydro-Mec is a renowned European manufacturer known for its high-quality, modular design gearboxes, offering quick customization, reliability, and excellent performance. Designed and produced in Italy, Hydro-Mec products adhere to strict manufacturing standards, ensuring precision and long operational life. The Hydro-Mec 411A gearbox exemplifies these values through its high efficiency, compact design, and broad compatibility with industrial motors.This gearbox is tailored for demanding industrial applications, where size, weight, and durability matter. With an impressive efficiency of 98% and a robust aluminium housing, the Hydro-Mec 411A is ideal for precision motion control and drive systems across sectors including automation, material handling, packaging, and machinery engineering.Key Features, Functions & Application Benefits:
• High mechanical efficiency (98%) ensures minimal energy loss, maximizing energy transfer and reducing operating costs over long-term use.
• Single-stage gear configuration (ratio 1.57:1) offers quick speed reduction while maintaining torque, ideal for high-speed motor-driven systems requiring moderate reduction.
• Compact and lightweight aluminium housing ensures strength and corrosion resistance, enabling use in space-constrained and harsh industrial environments.
• Gear input shaft diameter of 14 mm supports reliable connection to standard motors, reducing need for custom couplings.
• Gear output shaft diameter of 19 mm allows for high torque transfer to driven components, such as conveyors, pumps, or mechanical actuators.
• Compatible with standard IEC motor flanges (input: 71B14 / output: 80B14), simplifying integration into existing motor-driven systems.
• Modular gearbox design allows easy swaps or upgrades without extensive redesigns, lowering maintenance time and costs in industrial settings.
• Optimal for use in automated production systems, conveyors, processing equipment, and linear drive systems requiring compact and reliable gear drives.Experience the Italian-engineered precision of Hydro-Mec – where modularity meets performance.
• High mechanical efficiency (98%) ensures minimal energy loss, maximizing energy transfer and reducing operating costs over long-term use.
• Single-stage gear configuration (ratio 1.57:1) offers quick speed reduction while maintaining torque, ideal for high-speed motor-driven systems requiring moderate reduction.
• Compact and lightweight aluminium housing ensures strength and corrosion resistance, enabling use in space-constrained and harsh industrial environments.
• Gear input shaft diameter of 14 mm supports reliable connection to standard motors, reducing need for custom couplings.
• Gear output shaft diameter of 19 mm allows for high torque transfer to driven components, such as conveyors, pumps, or mechanical actuators.
• Compatible with standard IEC motor flanges (input: 71B14 / output: 80B14), simplifying integration into existing motor-driven systems.
• Modular gearbox design allows easy swaps or upgrades without extensive redesigns, lowering maintenance time and costs in industrial settings.
• Optimal for use in automated production systems, conveyors, processing equipment, and linear drive systems requiring compact and reliable gear drives.Experience the Italian-engineered precision of Hydro-Mec – where modularity meets performance.
