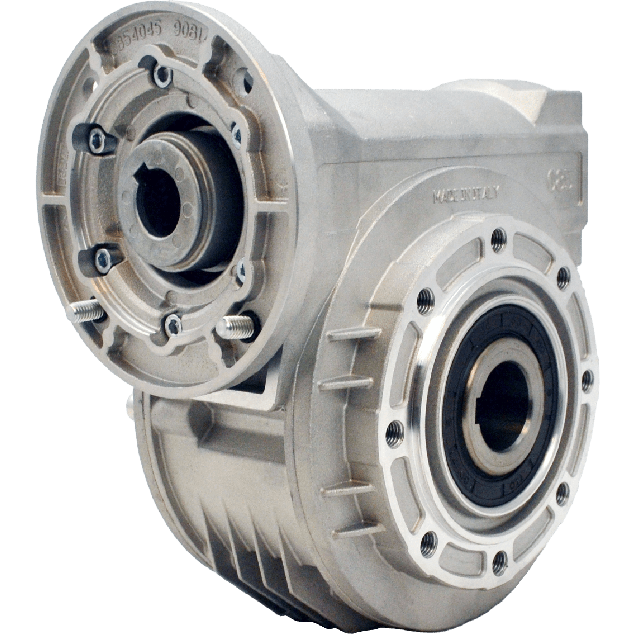

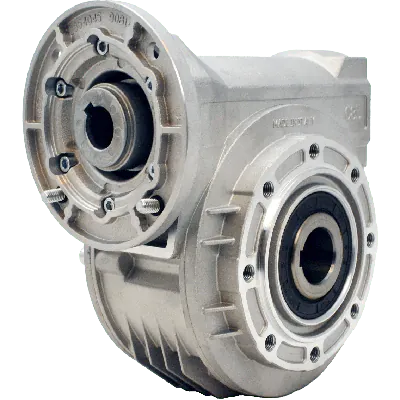

Hydro-Mec 085, worm gear Ø35 SS hollow shaft, 7:1, input 100/112B14, aluminium
HV80P085FB01I0-UB3-F-OFKey features include a 35 mm stainless steel hollow output shaft, 28 mm gear input shaft, and a gearbox ratio of 7:1. The unit offers 88% efficiency and is equipped with a BCD input and output of 130 mm. The gear housing is made of aluminium, ensuring a balance between weight and durability. Designed with a 100/112B14 motor interface, the gear unit is classified in gear size 085.Engineered for reliability, this gear unit integrates seamlessly into automation systems demanding consistent torque output and space efficiency.
Specifications
Product description
Downloads
€907.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
7:1
BCD input
130
BCD output
130
Efficiency (%)
88
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
085
Output speed at 1400 RPM
200
Max output torque (Nm)
257
Max kW input at 1400 rpm
6.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Brand/Manufacturer:Hydro-Mec is a renowned Italian manufacturer known for its precision-engineered gearboxes and power transmission components. Their worm gears are favored across a wide range of industrial applications due to their modular design, durability, and adaptability. Hydro-Mec emphasizes quick delivery, superior quality, and exceptional flexibility—making their gear units ideal for demanding engineering environments.Key Features, Benefits, and Applications:
• Constructed with an aluminium housing, providing a lightweight, corrosion-resistant solution suitable for environments requiring clean surfaces, such as food, beverage, and pharmaceutical industries.
• Integrated Ø35 mm stainless steel hollow output shaft (SS), ensuring excellent resistance to corrosion and suitable for hygiene-critical or harsh chemical environments.
• Gear input designed to accept 100/112B14 IEC-standard motor flanges, enabling easy integration with standard electric motors and enhancing modularity in machine setup.
• Gear input shaft dimension Ø28 mm ensures compatibility with a range of drive systems, providing design flexibility.
• 7:1 gear ratio delivers reliable speed reduction and torque multiplication, ideal for conveying systems, mixers, and other motion control applications.
• High mechanical efficiency of 88%, optimizing energy usage and reducing operational costs compared to traditional worm gear systems.
• Gearbox size 085 strikes a balance between power output and compact installation footprint—well-suited for industry applications with limited space.
• BCD 130 mm for both input and output flanges allows for direct mounting in modular systems and seamless integration into existing or OEM-designed equipment.
• Hydro-Mec’s modular design approach enables rapid customization and replacement, minimizing downtime and simplifying maintenance.
• Ideal for use in automation, packaging, logistics, and wastewater treatment—anywhere reliability, compact design, and resistance to environmental factors are essential. This unit is a flexible, durable, and efficient gearbox solution, designed with engineering precision from Hydro-Mec to meet the performance and environmental demands of modern industrial applications.
• Constructed with an aluminium housing, providing a lightweight, corrosion-resistant solution suitable for environments requiring clean surfaces, such as food, beverage, and pharmaceutical industries.
• Integrated Ø35 mm stainless steel hollow output shaft (SS), ensuring excellent resistance to corrosion and suitable for hygiene-critical or harsh chemical environments.
• Gear input designed to accept 100/112B14 IEC-standard motor flanges, enabling easy integration with standard electric motors and enhancing modularity in machine setup.
• Gear input shaft dimension Ø28 mm ensures compatibility with a range of drive systems, providing design flexibility.
• 7:1 gear ratio delivers reliable speed reduction and torque multiplication, ideal for conveying systems, mixers, and other motion control applications.
• High mechanical efficiency of 88%, optimizing energy usage and reducing operational costs compared to traditional worm gear systems.
• Gearbox size 085 strikes a balance between power output and compact installation footprint—well-suited for industry applications with limited space.
• BCD 130 mm for both input and output flanges allows for direct mounting in modular systems and seamless integration into existing or OEM-designed equipment.
• Hydro-Mec’s modular design approach enables rapid customization and replacement, minimizing downtime and simplifying maintenance.
• Ideal for use in automation, packaging, logistics, and wastewater treatment—anywhere reliability, compact design, and resistance to environmental factors are essential. This unit is a flexible, durable, and efficient gearbox solution, designed with engineering precision from Hydro-Mec to meet the performance and environmental demands of modern industrial applications.
