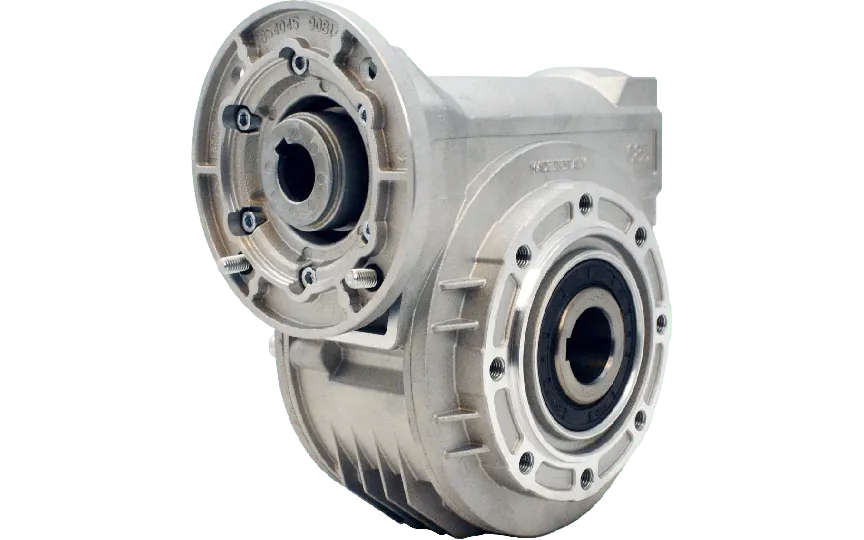

Hydro-Mec 085, worm gear Ø35 SS hollow shaft, 52:1, input 90B14, aluminium
HV80P085FB09I0-TB3-E-OFThis unit features a stainless steel Ø35 mm hollow output shaft for corrosion resistance, and an input shaft diameter of 24 mm. The gear material is aluminium, offering a balance between weight and strength. It is built to fit a 90B14 motor interface, and the gearbox size is 085. The gear ratio is 52:1, supporting applications requiring high torque reduction. Performance data includes a bearing centre distance of 115 mm (input) and 130 mm (output), delivering 66% efficiency under standard load conditions.
Specifications
Product description
Downloads
€905.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
52:1
BCD input
115
BCD output
130
Efficiency (%)
66
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
085
Output speed at 1400 RPM
27
Max output torque (Nm)
289
Max kW input at 1400 rpm
1.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a renowned manufacturer known across Europe for high-quality, modular transmission solutions. Their gearboxes are engineered with precision and flexibility, offering robust durability and performance for industrial applications. With manufacturing based in Italy, Hydro-Mec combines innovative design with strict quality control to meet the demands of engineers and technical professionals in a wide range of sectors.Product Name: Hydro-Mec 085, Worm Gearbox Ø35 Stainless Steel Hollow Shaft, 52:1 Ratio, Input 90B14, Aluminium HousingKey Product Description and Application-Oriented Benefits:
High Precision 52:1 Gear Ratio – Ideal for applications requiring significant speed reduction and torque multiplication, such as conveyor systems, mixers, and lifting equipment.
Stainless Steel Ø35 mm Hollow Output Shaft – Provides superior corrosion resistance, making it highly suitable for food industry, chemical plants, and marine environments where hygiene or resistance to aggressive environments is crucial.
Aluminium Gearbox Housing – Lightweight yet robust, suitable for applications where weight reduction is desired without sacrificing strength; excellent thermal conductivity for efficient heat dissipation during continuous operation.
Input Shaft Ø24 mm – Compatible with standard B14 motor connections, simplifying the installation and integration into existing drive systems.
90B14 Motor Mount Interface – Standardised motor interface ensures quick assembly with IEC-compatible motors, reducing downtime and system complexity.
Hydro-Mec Modular Design – Offers flexibility for engineers to integrate the gearbox into a larger system with possible configuration changes, allowing customization for unique design requirements.
Efficiency Rating of 66% – Optimized for torque delivery in intermittent or low-speed motion control applications where maximum gearbox efficiency is not paramount.
Compact Gear Size 085 – Suitable for installations with space constraints while still delivering high torque output for demanding industrial tasks.
Corrosion-Resistant Build Components – Combines aluminium with stainless steel output to extend service life in harsh environments, minimizing maintenance needs and increasing operational uptime.This Hydro-Mec worm gearbox is specifically engineered for industrial automation systems, packaging lines, and processing machinery where reliability, modular compatibility, and resistance to environmental factors are essential.
High Precision 52:1 Gear Ratio – Ideal for applications requiring significant speed reduction and torque multiplication, such as conveyor systems, mixers, and lifting equipment.
Stainless Steel Ø35 mm Hollow Output Shaft – Provides superior corrosion resistance, making it highly suitable for food industry, chemical plants, and marine environments where hygiene or resistance to aggressive environments is crucial.
Aluminium Gearbox Housing – Lightweight yet robust, suitable for applications where weight reduction is desired without sacrificing strength; excellent thermal conductivity for efficient heat dissipation during continuous operation.
Input Shaft Ø24 mm – Compatible with standard B14 motor connections, simplifying the installation and integration into existing drive systems.
90B14 Motor Mount Interface – Standardised motor interface ensures quick assembly with IEC-compatible motors, reducing downtime and system complexity.
Hydro-Mec Modular Design – Offers flexibility for engineers to integrate the gearbox into a larger system with possible configuration changes, allowing customization for unique design requirements.
Efficiency Rating of 66% – Optimized for torque delivery in intermittent or low-speed motion control applications where maximum gearbox efficiency is not paramount.
Compact Gear Size 085 – Suitable for installations with space constraints while still delivering high torque output for demanding industrial tasks.
Corrosion-Resistant Build Components – Combines aluminium with stainless steel output to extend service life in harsh environments, minimizing maintenance needs and increasing operational uptime.This Hydro-Mec worm gearbox is specifically engineered for industrial automation systems, packaging lines, and processing machinery where reliability, modular compatibility, and resistance to environmental factors are essential.
