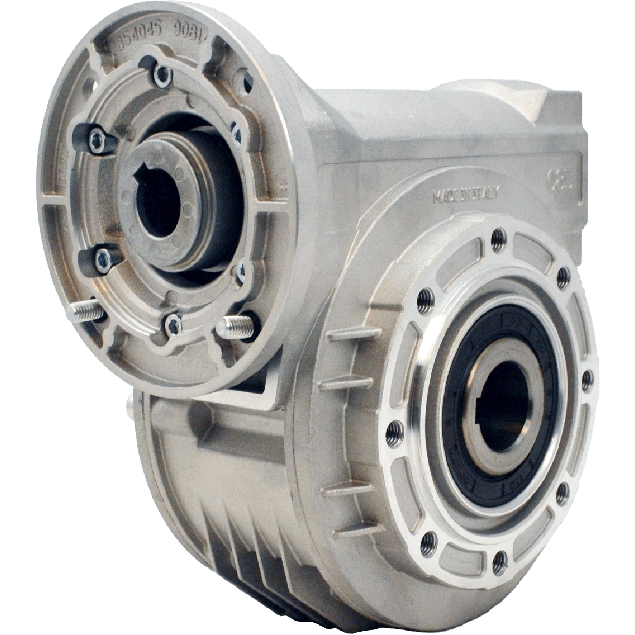

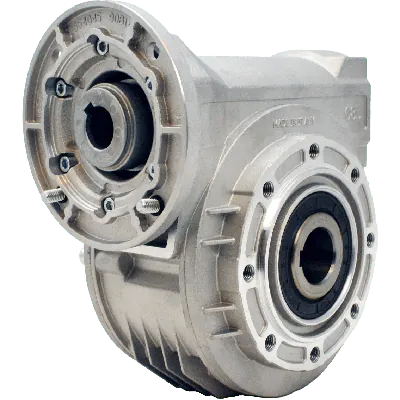

Hydro-Mec 085, worm gear Ø35 SS hollow shaft, 52:1, input 80B14, aluminium
HV80P085FB09I0-RB3-D-OFThe Hydro-Mec 085, worm gearbox Ø35 SS hollow shaft, 52:1, input 80B14, aluminium is built for demanding industrial applications. It features a gear ratio of 52:1 and an efficiency of 66%, making it suitable for controlled speed reduction. The unit includes a 19 mm gear input shaft and a 35 mm stainless steel (SS) hollow output shaft for corrosion resistance and durability. The gearbox has a gear motor interface of 80B14 and a gear size of 085. Constructed with a gear housing in aluminium, it combines weight efficiency with structural strength. The unit supports a BCD input of 100 mm and a BCD output of 130 mm.
Specifications
Product description
Downloads
€897.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
52:1
BCD input
100
BCD output
130
Efficiency (%)
66
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
085
Output speed at 1400 RPM
27
Max output torque (Nm)
289
Max kW input at 1400 rpm
1.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Product: Hydro-Mec 085, Worm Gear Ø35 SS Hollow Shaft, 52:1 Ratio, Input 80B14, Aluminium Key Features, Benefits & Application Possibilities:
• Stainless Steel Ø35 mm Hollow Output Shaft – Ideal for use in wet, corrosive, or hygienically critical environments such as food processing, beverage production, and pharmaceutical machinery. Resistant to aggressive cleaning agents and high humidity, extending product life.
• Aluminium Housing – Provides a lightweight yet durable gear body, excellent for mobile and stationary industrial applications where corrosion resistance and compact installation are critical.
• Gearbox Ratio 52:1 – Enables significant torque amplification, making it suitable for low-speed, high-load equipment such as conveyors, packaging systems, and lifting mechanisms.
• IEC B14 Input Mounting (80B14) – Allows quick and precise motor coupling with standard IEC motors, enhancing integration flexibility across a wide range of OEM equipment and production lines.
• 66% Transmission Efficiency – Optimized for medium-duty performance with minimal energy loss, beneficial in continuous operations within automated manufacturing systems.
• Input Shaft Ø19 mm – Standardized size compatible with industrial drive systems for seamless integration into existing setups or new designs.
• Gear Size 085 – Compact design allows for installation in confined spaces, making it perfect for decentralized drive units and embedded automation applications.Applications span across conveyor systems, automated machinery, material handling equipment, packaging lines, and food industry equipment—especially where corrosion resistance and hygienic design are required. This unit excels in moderate-duty industrial applications demanding precision and durability.
• Stainless Steel Ø35 mm Hollow Output Shaft – Ideal for use in wet, corrosive, or hygienically critical environments such as food processing, beverage production, and pharmaceutical machinery. Resistant to aggressive cleaning agents and high humidity, extending product life.
• Aluminium Housing – Provides a lightweight yet durable gear body, excellent for mobile and stationary industrial applications where corrosion resistance and compact installation are critical.
• Gearbox Ratio 52:1 – Enables significant torque amplification, making it suitable for low-speed, high-load equipment such as conveyors, packaging systems, and lifting mechanisms.
• IEC B14 Input Mounting (80B14) – Allows quick and precise motor coupling with standard IEC motors, enhancing integration flexibility across a wide range of OEM equipment and production lines.
• 66% Transmission Efficiency – Optimized for medium-duty performance with minimal energy loss, beneficial in continuous operations within automated manufacturing systems.
• Input Shaft Ø19 mm – Standardized size compatible with industrial drive systems for seamless integration into existing setups or new designs.
• Gear Size 085 – Compact design allows for installation in confined spaces, making it perfect for decentralized drive units and embedded automation applications.Applications span across conveyor systems, automated machinery, material handling equipment, packaging lines, and food industry equipment—especially where corrosion resistance and hygienic design are required. This unit excels in moderate-duty industrial applications demanding precision and durability.
