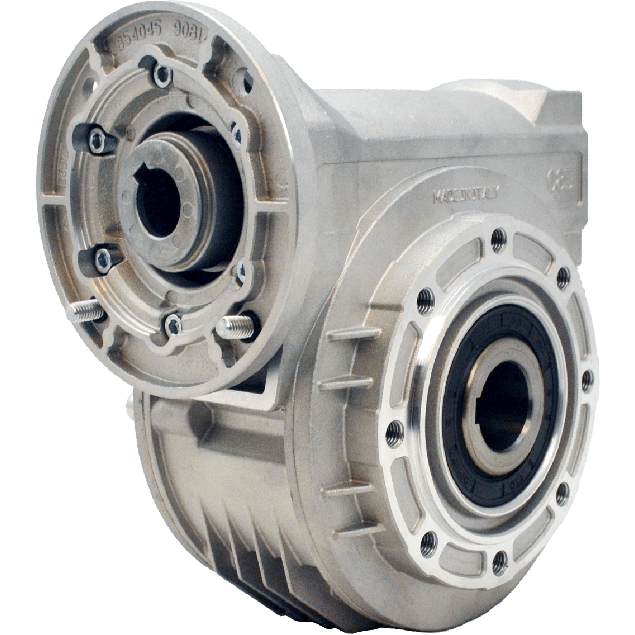

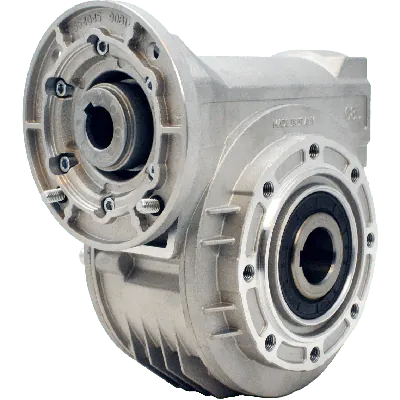

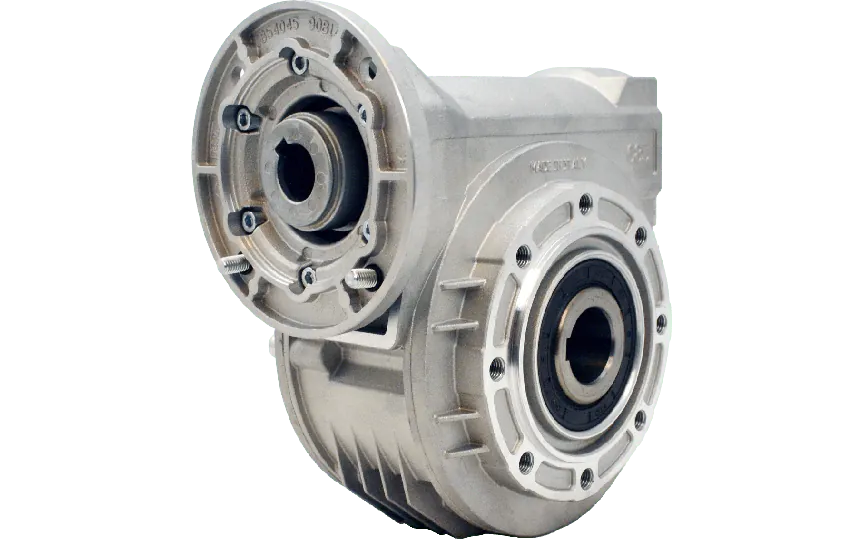

Hydro-Mec 085, worm gear Ø35 SS hollow shaft, 38:1, input 80B14, aluminium
HV80P085FB07I0-RB3-D-OFThe Hydro-Mec 085, worm gear Ø35 SS hollow shaft, 38:1, input 80B14, aluminium is a compact worm gearbox designed for technical and industrial applications. It features a stainless steel Ø35 mm hollow output shaft for enhanced corrosion resistance in demanding environments. The gear housing is made of aluminium, offering a balance between strength and light weight. The input shaft measures 19 mm and interfaces via a standard 80B14 flange. With a gear ratio of 38:1, it delivers the necessary torque conversion efficiently. The BCD input is 100 mm and the BCD output is 130 mm. The efficiency is rated at 71% and the gear size is 085.
Specifications
Product description
Downloads
€897.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
38:1
BCD input
100
BCD output
130
Efficiency (%)
71
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
085
Output speed at 1400 RPM
37
Max output torque (Nm)
336
Max kW input at 1400 rpm
1.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
The Hydro-Mec 085 worm gearbox is a high-performance power transmission unit, specifically engineered for industrial applications that demand durability, efficiency, and corrosion resistance. Manufactured by Hydro-Mec – a renowned Italian producer known for their flexible modular design and precision-engineered gear solutions – this gear unit delivers consistent performance even under demanding operational conditions.Key Features, Functional Benefits, and Application Possibilities:
• Equipped with a Ø35 mm stainless steel hollow output shaft (SS), offering superior corrosion resistance — ideal for applications in food processing, chemical handling, and marine environments
• Gear housing made of die-cast aluminium: lightweight yet robust structure minimizes weight without compromising mechanical strength — beneficial in mobile or elevated installations
• Compact 085 gear size ensures space-efficient integration into automated systems or machinery with limited assembly space
• Input shaft diameter of 19 mm and B14 flange mounting (80B14) allows standardized, quick installation with IEC standard motors — boosting modularity and reducing downtime
• Optimized for an input/output BCD conversion from 100 to 130 mm, enabling seamless interface with a wide range of components in manufacturing and automation workflows
• Offers a 38:1 reduction ratio — suitable for torque-intensive applications requiring speed reduction such as conveyors, lifters, and rotary tables
• Delivers an operational efficiency of 71%, serving industrial needs where consistent energy transfer and torque delivery are essential
• Mounting-compatible with standard gear motor assemblies, making it adaptable across sectors like packaging machinery, material handling, and wastewater treatment plants Hydro-Mec’s unique modular gearbox concept ensures fast customization, easy maintenance, and global availability — making the Hydro-Mec 085 an optimal choice for engineers and technical specialists pursuing reliability and system integration flexibility.
• Equipped with a Ø35 mm stainless steel hollow output shaft (SS), offering superior corrosion resistance — ideal for applications in food processing, chemical handling, and marine environments
• Gear housing made of die-cast aluminium: lightweight yet robust structure minimizes weight without compromising mechanical strength — beneficial in mobile or elevated installations
• Compact 085 gear size ensures space-efficient integration into automated systems or machinery with limited assembly space
• Input shaft diameter of 19 mm and B14 flange mounting (80B14) allows standardized, quick installation with IEC standard motors — boosting modularity and reducing downtime
• Optimized for an input/output BCD conversion from 100 to 130 mm, enabling seamless interface with a wide range of components in manufacturing and automation workflows
• Offers a 38:1 reduction ratio — suitable for torque-intensive applications requiring speed reduction such as conveyors, lifters, and rotary tables
• Delivers an operational efficiency of 71%, serving industrial needs where consistent energy transfer and torque delivery are essential
• Mounting-compatible with standard gear motor assemblies, making it adaptable across sectors like packaging machinery, material handling, and wastewater treatment plants Hydro-Mec’s unique modular gearbox concept ensures fast customization, easy maintenance, and global availability — making the Hydro-Mec 085 an optimal choice for engineers and technical specialists pursuing reliability and system integration flexibility.
