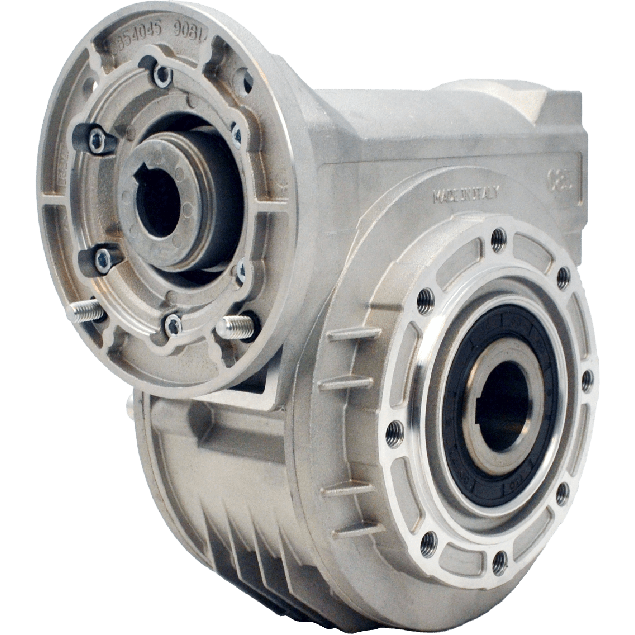

Hydro-Mec 085, worm gear Ø35 SS hollow shaft, 28:1, input 90B14, aluminium
HV80P085FB06I0-TB3-E-OFFeaturing a gear ratio of 28:1 and efficiency of 75%, it ensures consistent torque conversion. The input shaft diameter is 24 mm with a 90B14 gear motor interface for easy integration. The output shaft is a Ø35 mm stainless steel hollow shaft, offering corrosion resistance and durability. Built with a gear housing in aluminium, it provides a lightweight yet robust structure. The gear size is 085, the BCD input is 115, and the BCD output is 130, enabling precise mechanical alignment.
Specifications
Product description
Downloads
€905.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
28:1
BCD input
115
BCD output
130
Efficiency (%)
75
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
085
Output speed at 1400 RPM
50
Max output torque (Nm)
347
Max kW input at 1400 rpm
2.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a renowned Italian manufacturer known for its modular gearbox solutions, combining high-quality materials, precision engineering, and versatility. Designed to meet demanding industrial standards, Hydro-Mec gearboxes are ideal for technical specialists and engineers who require optimized power transmission for varied applications.This specific worm gearbox model — Hydro-Mec 085 — features a robust yet lightweight aluminium housing and a stainless-steel hollow output shaft, making it ideal for corrosion-prone environments and high-duty applications. With a gear ratio of 28:1 and an input interface suitable for a 90B14 motor flange, this unit is built to deliver reliable performance and high torque in compact dimensions.Key Features and Application Benefits:
• Gear housing made of aluminium – offers excellent corrosion resistance, reduced weight, and efficient heat dissipation, ideal for environments with space or weight constraints.
• 35 mm stainless steel hollow output shaft – ensures resistance to corrosion and provides a hygienic surface, perfect for food processing equipment, chemical industries, or outdoor installations.
• Reduction ratio of 28:1 – enables precise speed reduction, making it suitable for conveyor systems, automation processes, and heavy-duty mechanical operations.
• Compatible with 90B14 motor interface – simplifies integration with standard IEC motors without additional adapters, reducing installation time and costs.
• Gearbox size 085 – a versatile mid-size unit balancing torque capacity and compact footprint for applications in manufacturing, packaging, and handling systems.
• Input shaft diameter 24 mm / Output shaft diameter 35 mm – ensures compatibility and torque transmission for various shaft coupling and load demands.
• Efficiency approximately 75% – a reliable value for worm gear technology, delivering effective power transfer while maintaining mechanical simplicity and low noise operation.Hydro-Mec gearboxes are engineered for high adaptability and performance in multi-industry use, including machine building, conveyor systems, material handling, food and beverage environments, and more.
• Gear housing made of aluminium – offers excellent corrosion resistance, reduced weight, and efficient heat dissipation, ideal for environments with space or weight constraints.
• 35 mm stainless steel hollow output shaft – ensures resistance to corrosion and provides a hygienic surface, perfect for food processing equipment, chemical industries, or outdoor installations.
• Reduction ratio of 28:1 – enables precise speed reduction, making it suitable for conveyor systems, automation processes, and heavy-duty mechanical operations.
• Compatible with 90B14 motor interface – simplifies integration with standard IEC motors without additional adapters, reducing installation time and costs.
• Gearbox size 085 – a versatile mid-size unit balancing torque capacity and compact footprint for applications in manufacturing, packaging, and handling systems.
• Input shaft diameter 24 mm / Output shaft diameter 35 mm – ensures compatibility and torque transmission for various shaft coupling and load demands.
• Efficiency approximately 75% – a reliable value for worm gear technology, delivering effective power transfer while maintaining mechanical simplicity and low noise operation.Hydro-Mec gearboxes are engineered for high adaptability and performance in multi-industry use, including machine building, conveyor systems, material handling, food and beverage environments, and more.
