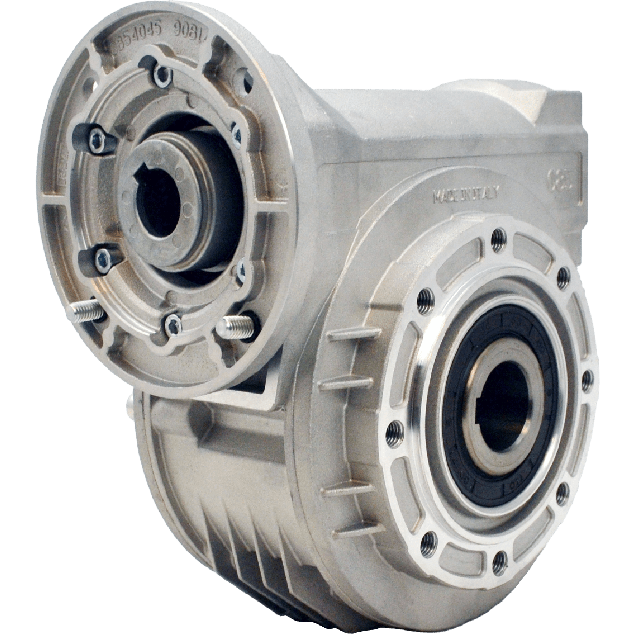

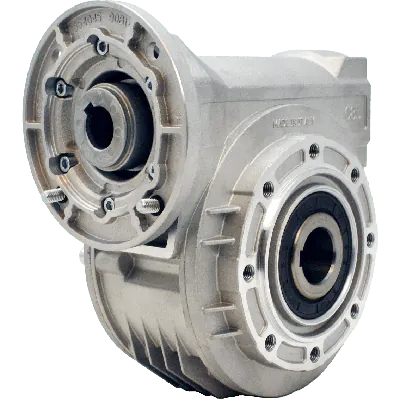

Hydro-Mec 085, worm gear Ø35 SS hollow shaft, 22:1, input 80B14, aluminium
HV80P085FB05I0-RB3-D-OFIt features a 22:1 gear ratio and a gear size 085. The input shaft diameter is 19 mm with a gear motor interface of 80B14. The output shaft is a Ø35 mm stainless steel hollow shaft, meeting corrosion resistance requirements. The housing is made of aluminium for reduced weight. The gearbox offers 78% efficiency under standard load. Signal integration is supported with BCD input: 100 and BCD output: 130. Suitable for systems requiring compact worm gear solutions with a stainless steel output shaft.
Specifications
Product description
Downloads
€897.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
22:1
BCD input
100
BCD output
130
Efficiency (%)
78
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
085
Output speed at 1400 RPM
64
Max output torque (Nm)
294
Max kW input at 1400 rpm
2.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a premier Italian manufacturer known for its high-performance gear units and modular gear motor solutions, designed specifically to meet the demands of modern industrial applications. With a strong focus on durability, efficiency, and configurability, Hydro-Mec is a trusted partner among engineers and plant designers worldwide.Key Features and Benefits:
Robust aluminium gearbox housing — delivers excellent corrosion resistance and lightweight construction, ideal for both indoor and outdoor industrial settings.
Stainless steel (SS) Ø35 mm hollow output shaft — ensures maximum corrosion protection in demanding environments such as food processing plants, chemical facilities, and marine applications.
22:1 gear ratio — provides effective torque multiplication and speed reduction, making it ideal for conveyor systems, mixers, and lifting equipment.
High efficiency rating of 78% — optimizes energy usage, improving overall system performance and reducing operational costs.
Input shaft Ø19 mm — compatible with a wide range of standard motor couplings, allowing for flexible integration into existing drive systems.
Gear motor interface 80B14 — supports standard IEC B14 motor flanges, simplifying motor installation and replacement.
Compact gear size 085 — suitable for applications with space constraints while still delivering high performance and load capacity.
Precisely machined internal components — ensure smooth operation, reduced wear, and extended service life in continuous-duty settings.Applications:
Ideal for automation systems in manufacturing and processing sectors requiring compact, high-efficiency drive units.
Suitable for conveyor drives in bottling plants, packaging lines, and food-grade environments thanks to the stainless steel hollow shaft.
Excellent for use in marine duty, outdoor hoists, and wastewater treatment due to its corrosion-resistant construction and reliable torque output.Hydro-Mec gear units combine modular flexibility with Italian engineering precision, making them a solid choice for integration into custom power transmission applications across industries.
Robust aluminium gearbox housing — delivers excellent corrosion resistance and lightweight construction, ideal for both indoor and outdoor industrial settings.
Stainless steel (SS) Ø35 mm hollow output shaft — ensures maximum corrosion protection in demanding environments such as food processing plants, chemical facilities, and marine applications.
22:1 gear ratio — provides effective torque multiplication and speed reduction, making it ideal for conveyor systems, mixers, and lifting equipment.
High efficiency rating of 78% — optimizes energy usage, improving overall system performance and reducing operational costs.
Input shaft Ø19 mm — compatible with a wide range of standard motor couplings, allowing for flexible integration into existing drive systems.
Gear motor interface 80B14 — supports standard IEC B14 motor flanges, simplifying motor installation and replacement.
Compact gear size 085 — suitable for applications with space constraints while still delivering high performance and load capacity.
Precisely machined internal components — ensure smooth operation, reduced wear, and extended service life in continuous-duty settings.Applications:
Ideal for automation systems in manufacturing and processing sectors requiring compact, high-efficiency drive units.
Suitable for conveyor drives in bottling plants, packaging lines, and food-grade environments thanks to the stainless steel hollow shaft.
Excellent for use in marine duty, outdoor hoists, and wastewater treatment due to its corrosion-resistant construction and reliable torque output.Hydro-Mec gear units combine modular flexibility with Italian engineering precision, making them a solid choice for integration into custom power transmission applications across industries.
