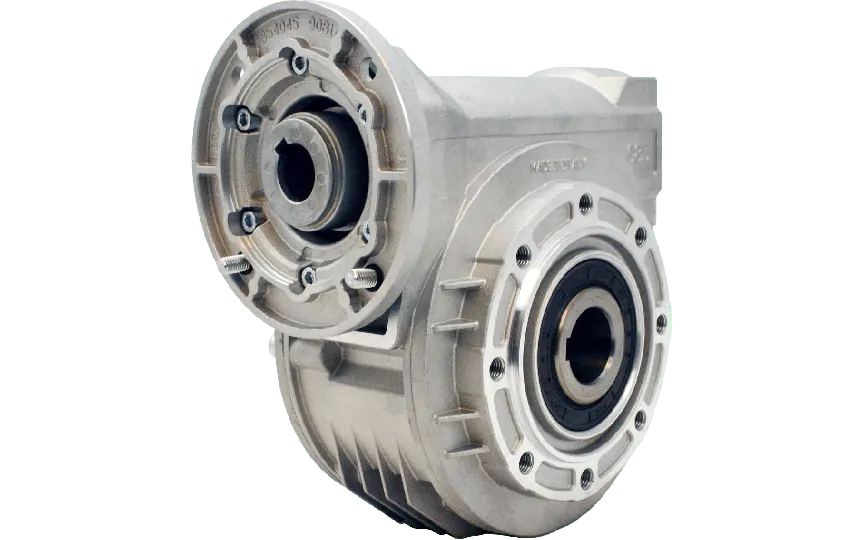

Hydro-Mec 085, worm gear Ø35 SS hollow shaft, 20:1, input 100/112B14, aluminium
HV80P085FB04I0-UB3-F-OFGear size: 085 Ratio: 20:1 Efficiency (%): 79 Gear material: Aluminium Gear motor interface: 100/112B14 Gear input shaft (mm): 28 Gear output shaft (mm): 35 Output shaft type: Stainless Steel hollow shaft BCD input (mm): 130 BCD output (mm): 130 This configuration supports efficient torque transmission with corrosion-resistant stainless steel at the output, making it suitable for demanding environments.
Specifications
Product description
Downloads
€907.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
20:1
BCD input
130
BCD output
130
Efficiency (%)
79
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
085
Output speed at 1400 RPM
70
Max output torque (Nm)
294
Max kW input at 1400 rpm
2.7
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a well-established Italian manufacturer specializing in high-efficiency gearboxes and geared motors. With a focus on modularity, durability, and fast delivery, Hydro-Mec provides optimal solutions tailored for demanding industrial applications. All components are made in Europe, ensuring high precision, reliability, and long service life.This Hydro-Mec 085 worm gearbox is designed to deliver robust torque transmission with compact dimensions. Built with a lightweight aluminium housing and equipped with a stainless steel Ø35 mm hollow output shaft, it is especially well-suited for environments requiring corrosion resistance and hygienic design, such as food processing, pharmaceutical, and marine industries.
• High corrosion resistance due to stainless steel (SS) Ø35 mm hollow output shaft — ideal for harsh or hygienic environments
• 20:1 gear ratio ensures significant speed reduction with increased torque output — suitable for heavy-duty conveyor systems, lifting equipment, and processing lines
• Aluminium housing provides strength while keeping overall weight low — perfect for applications where weight savings improve machine efficiency
• Compatible with standardized 100/112B14 motor interface — enables easy integration with IEC motors, reducing installation time
• 28 mm input shaft diameter supports reliable power transmission from the motor — engineered for versatility across various mechanical systems
• Compact Gear Size 085 — fits well into space-constrained installations, allowing more efficient use of machine layout
• Efficiency rating of 79% — delivers energy-saving performance over long operational periods, reducing energy costs
• BCD 130 mm input/output flanges — ensures strong coupling compatibility with industry-standard components
• Long service life and low maintenance — high-quality European manufacturing ensures reliable, uninterrupted operationThis gearbox is a versatile and reliable component engineered for professionals seeking durable, precise motion control in industrial automation, material handling, and specialized equipment design.
• High corrosion resistance due to stainless steel (SS) Ø35 mm hollow output shaft — ideal for harsh or hygienic environments
• 20:1 gear ratio ensures significant speed reduction with increased torque output — suitable for heavy-duty conveyor systems, lifting equipment, and processing lines
• Aluminium housing provides strength while keeping overall weight low — perfect for applications where weight savings improve machine efficiency
• Compatible with standardized 100/112B14 motor interface — enables easy integration with IEC motors, reducing installation time
• 28 mm input shaft diameter supports reliable power transmission from the motor — engineered for versatility across various mechanical systems
• Compact Gear Size 085 — fits well into space-constrained installations, allowing more efficient use of machine layout
• Efficiency rating of 79% — delivers energy-saving performance over long operational periods, reducing energy costs
• BCD 130 mm input/output flanges — ensures strong coupling compatibility with industry-standard components
• Long service life and low maintenance — high-quality European manufacturing ensures reliable, uninterrupted operationThis gearbox is a versatile and reliable component engineered for professionals seeking durable, precise motion control in industrial automation, material handling, and specialized equipment design.
