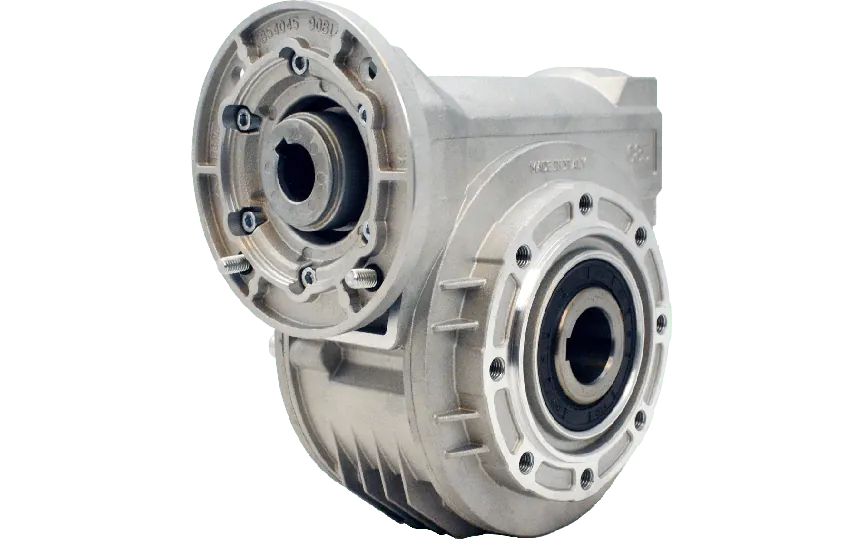

Hydro-Mec 085, worm gear Ø35 SS hollow shaft, 14:1, input 90B14, aluminium
HV80P085FB03I0-TB3-E-OFThis unit features a gear size: 085 and a 14:1 ratio, suitable for torque multiplication and speed reduction. It comes with a 90B14 gear motor interface and a 24 mm gear input shaft. The output shaft diameter is 35 mm and constructed as a stainless steel hollow shaft for corrosion resistance and easy integration in hygienic or corrosive environments.The housing is made from aluminium, ensuring light weight and thermal conductivity. The gearbox delivers a mechanical efficiency of 78%, with a BCD input of 115 mm and BCD output of 130 mm.
Specifications
Product description
Downloads
€905.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
14:1
BCD input
115
BCD output
130
Efficiency (%)
78
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
085
Output speed at 1400 RPM
100
Max output torque (Nm)
305
Max kW input at 1400 rpm
4.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
The Hydro-Mec 085 Worm Gearbox with a 14:1 reduction ratio and stainless steel Ø35 mm hollow output shaft is engineered for reliable power transmission in demanding industrial environments. Manufactured by Hydro-Mec, a renowned Italian brand recognized for its modular design, durability, and compliance with international quality standards, this gearbox is ideally suited for engineers and technical specialists seeking efficient and corrosion-resistant drive solutions.
High Performance Gearbox: With a 14:1 ratio and 78% efficiency, this unit delivers a balanced combination of torque increase and speed reduction for medium to heavy-duty applications.
Stainless Steel Hollow Output Shaft (Ø35 mm): Ensures excellent corrosion resistance, making it suitable for hygienic or corrosive environments such as food processing, chemical industries, and marine applications.
Aluminium Gear Housing: Lightweight yet durable, the aluminium construction provides high thermal conductivity and corrosion resistance, ideal for continuous operation and variable climates.
90B14 Input Flange: The standardized input allows fast and seamless integration with IEC-compatible motors, streamlining design and installation processes in automated systems.
Input Shaft Ø24 mm: Precision-machined for optimized mechanical fit and torque transmission, ensuring stable engagement with the motor and minimal mechanical loss.
Compact Size 085: Fits efficiently in spaces where installation dimensions are limited, enhancing versatility across many engineering applications.
Modular Configuration: Hydro-Mec’s modular approach supports easy customization, allowing for multiple mounting positions, shaft configurations, and motor adaptors without compromising performance.
Industry Applications: Ideal for conveyors, mixers, packaging machines, dosing systems, and other automation or mechanical drive solutions requiring compact, efficient, and rust-resistant gear units.The Hydro-Mec 085 stainless steel hollow shaft worm gearbox is a premium choice for professionals needing a moisture- and chemical-resistant drive train component that offers flexibility and reliable mechanical performance.
High Performance Gearbox: With a 14:1 ratio and 78% efficiency, this unit delivers a balanced combination of torque increase and speed reduction for medium to heavy-duty applications.
Stainless Steel Hollow Output Shaft (Ø35 mm): Ensures excellent corrosion resistance, making it suitable for hygienic or corrosive environments such as food processing, chemical industries, and marine applications.
Aluminium Gear Housing: Lightweight yet durable, the aluminium construction provides high thermal conductivity and corrosion resistance, ideal for continuous operation and variable climates.
90B14 Input Flange: The standardized input allows fast and seamless integration with IEC-compatible motors, streamlining design and installation processes in automated systems.
Input Shaft Ø24 mm: Precision-machined for optimized mechanical fit and torque transmission, ensuring stable engagement with the motor and minimal mechanical loss.
Compact Size 085: Fits efficiently in spaces where installation dimensions are limited, enhancing versatility across many engineering applications.
Modular Configuration: Hydro-Mec’s modular approach supports easy customization, allowing for multiple mounting positions, shaft configurations, and motor adaptors without compromising performance.
Industry Applications: Ideal for conveyors, mixers, packaging machines, dosing systems, and other automation or mechanical drive solutions requiring compact, efficient, and rust-resistant gear units.The Hydro-Mec 085 stainless steel hollow shaft worm gearbox is a premium choice for professionals needing a moisture- and chemical-resistant drive train component that offers flexibility and reliable mechanical performance.
