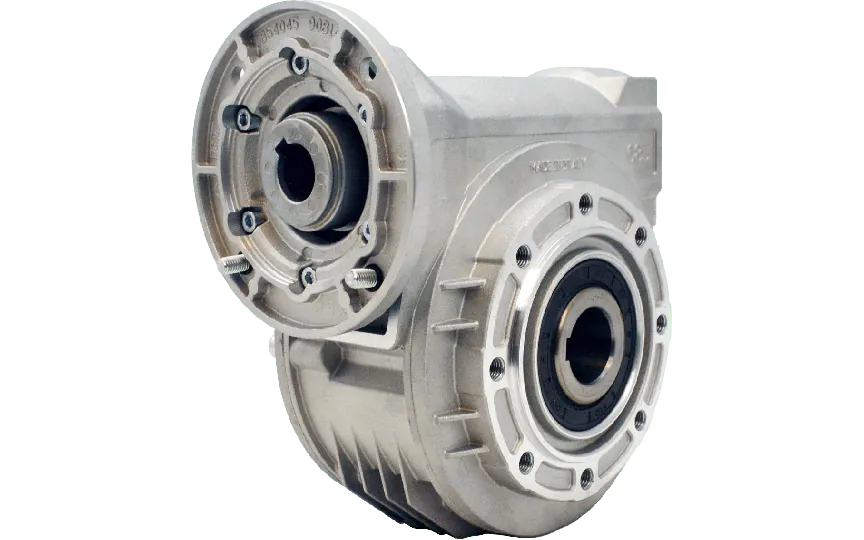

Hydro-Mec 085, worm gear Ø35 hollow shaft, 52:1, input 80B14, aluminium
HV80P085FB09C0-RB3-DBCD input: 100 BCD output: 130 Efficiency: 66% Input shaft diameter: 19 mm Output shaft diameter: 35 mm Gear ratio: 52:1 Gear size: 085 Gear motor interface: 80B14 Gear housing material: Aluminium This model is suitable for integration into applications requiring standard B14 mountings and offers a compact footprint with a durable aluminium housing. Engineered for efficient torque transmission with a 35 mm hollow output shaft, it supports high load capacity in space-constrained setups.
Specifications
Product description
Downloads
€572.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
52:1
BCD input
100
BCD output
130
Efficiency (%)
66
Gear output shaft (mm)
35
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
085
Output speed at 1400 RPM
27
Max output torque (Nm)
289
Max kW input at 1400 rpm
1.2
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
The Hydro-Mec 085 worm gearbox represents Italian engineering quality, produced by Hydro-Mec—an internationally recognized brand known for its modular, high-reliability power transmission solutions. Designed for industrial performance, Hydro-Mec gear units are compliant with major international standards and emphasize fast delivery, durable materials, and versatile configurations.Key Features and Industrial Application Benefits:
• High gear ratio of 52:1 allows significant torque multiplication, ideal for low-speed, high-torque applications such as conveyors, mixers, and material handling systems.
• Hollow output shaft Ø35 mm supports direct shaft mounting, simplifying installation and reducing alignment complexity—perfect for heavy-load driven components where rigidity and reliability are key factors.
• Input flange B14 (IEC 80) ensures compatibility with a wide range of standard electric motors, allowing for flexible motor selection and easy replacement in MRO environments.
• Constructed with an aluminium housing for lightweight design and corrosion resistance—especially suitable for clean or mildly corrosive environments such as food production, packaging, and light chemical applications.
• Stainless steel (SS) hollow shaft enhances resistance to wear and corrosion, which is optimal for washdown areas or outdoor installations where environmental exposure challenges standard steel components.
• Gearbox size 085 offers a compact footprint, ideal for systems requiring space-efficient installations without compromising mechanical performance.
• Input shaft diameter of 19 mm allows precise torque transfer and is compatible with standard coupling and drive configurations.
• System efficiency at 66% ensures adequate power transmission for less demanding duty cycles where high reduction ratios are prioritized over maximum drivetrain efficiency.
• Hydro-Mec gearboxes are modular by design, allowing interchangeable mounting options and simplified maintenance through easy component replacement—ideal for industrial environments prioritizing uptime and serviceability.The Hydro-Mec 085 worm gearbox is the preferred solution among engineers and machine designers who demand compact strength, modular flexibility, and corrosion protection in medium-to-heavy-duty applications.
• High gear ratio of 52:1 allows significant torque multiplication, ideal for low-speed, high-torque applications such as conveyors, mixers, and material handling systems.
• Hollow output shaft Ø35 mm supports direct shaft mounting, simplifying installation and reducing alignment complexity—perfect for heavy-load driven components where rigidity and reliability are key factors.
• Input flange B14 (IEC 80) ensures compatibility with a wide range of standard electric motors, allowing for flexible motor selection and easy replacement in MRO environments.
• Constructed with an aluminium housing for lightweight design and corrosion resistance—especially suitable for clean or mildly corrosive environments such as food production, packaging, and light chemical applications.
• Stainless steel (SS) hollow shaft enhances resistance to wear and corrosion, which is optimal for washdown areas or outdoor installations where environmental exposure challenges standard steel components.
• Gearbox size 085 offers a compact footprint, ideal for systems requiring space-efficient installations without compromising mechanical performance.
• Input shaft diameter of 19 mm allows precise torque transfer and is compatible with standard coupling and drive configurations.
• System efficiency at 66% ensures adequate power transmission for less demanding duty cycles where high reduction ratios are prioritized over maximum drivetrain efficiency.
• Hydro-Mec gearboxes are modular by design, allowing interchangeable mounting options and simplified maintenance through easy component replacement—ideal for industrial environments prioritizing uptime and serviceability.The Hydro-Mec 085 worm gearbox is the preferred solution among engineers and machine designers who demand compact strength, modular flexibility, and corrosion protection in medium-to-heavy-duty applications.
