Description

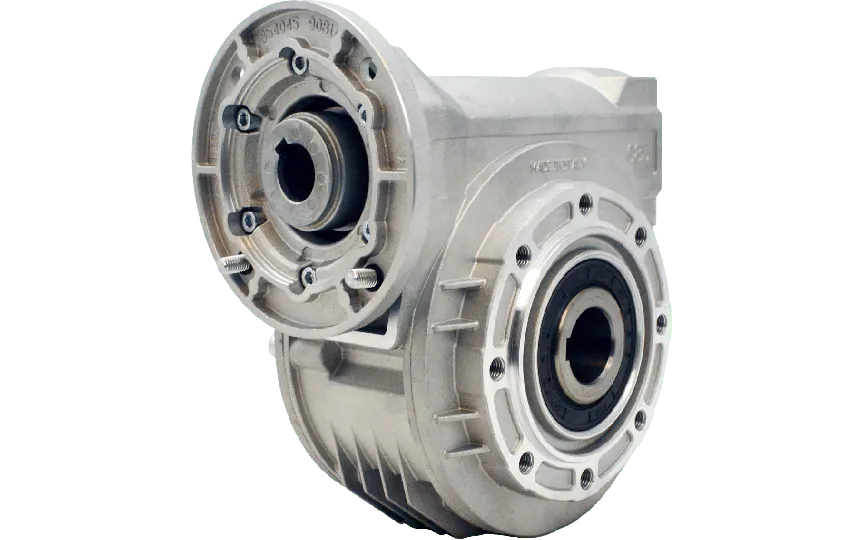

Product: Hydro-Mec 085, Worm Gearbox Ø35 Hollow Shaft, 28:1 Ratio, Input 100/112B14, Aluminium Key Features and Application Benefits:
High Gear Ratio of 28:1 ensures significant speed reduction, supporting applications with high torque and low output speeds such as conveyor systems, mixers, and automation equipment.
Ø35 mm Hollow Output Shaft enables direct mounting with driven shafts, eliminating the need for couplings and reducing mechanical complexity in industrial machines.
B14 Flange Input Interface (100/112B14) provides compatibility with IEC motor frames, simplifying motor integration and allowing use with standard electric motors for various drives.
Aluminium Housing offers high corrosion resistance and optimal thermal dissipation, making it ideal for demanding environments like food processing, packaging, and light to medium-duty material handling.
Ø28 mm Input Shaft designed for precision alignment and efficient torque transmission from the motor, reducing backlash and vibration in mechanical systems.
High Versatility due to modular construction allows quick adaptation to different machine configurations and simplified maintenance, easing integration into automated production systems.
Compact Gear Size 085 suitable for installations with limited space without compromising performance, beneficial in robotics and compact industrial machinery.
Efficiency Rating of 75% ensures balanced performance and energy usage in continuous duty operations such as pumps, lifts, and dosing systems.
Robust Design paired with Hydro-Mec’s engineering ensures long-lasting performance under consistent loads, minimizing downtime in process-intensive industries.Hydro-Mec gearboxes are engineered for precision-driven professionals and industries demanding durable, flexible gearing solutions that perform reliably in dynamic operational environments.
High Gear Ratio of 28:1 ensures significant speed reduction, supporting applications with high torque and low output speeds such as conveyor systems, mixers, and automation equipment.
Ø35 mm Hollow Output Shaft enables direct mounting with driven shafts, eliminating the need for couplings and reducing mechanical complexity in industrial machines.
B14 Flange Input Interface (100/112B14) provides compatibility with IEC motor frames, simplifying motor integration and allowing use with standard electric motors for various drives.
Aluminium Housing offers high corrosion resistance and optimal thermal dissipation, making it ideal for demanding environments like food processing, packaging, and light to medium-duty material handling.
Ø28 mm Input Shaft designed for precision alignment and efficient torque transmission from the motor, reducing backlash and vibration in mechanical systems.
High Versatility due to modular construction allows quick adaptation to different machine configurations and simplified maintenance, easing integration into automated production systems.
Compact Gear Size 085 suitable for installations with limited space without compromising performance, beneficial in robotics and compact industrial machinery.
Efficiency Rating of 75% ensures balanced performance and energy usage in continuous duty operations such as pumps, lifts, and dosing systems.
Robust Design paired with Hydro-Mec’s engineering ensures long-lasting performance under consistent loads, minimizing downtime in process-intensive industries.Hydro-Mec gearboxes are engineered for precision-driven professionals and industries demanding durable, flexible gearing solutions that perform reliably in dynamic operational environments.
Specifications
Material
Aluminium
Ratio
28:1
BCD input
130
BCD output
130
Efficiency (%)
75
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
085
Output speed at 1400 RPM
50
Max output torque (Nm)
347
Max kW input at 1400 rpm
2.4
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
11.00
Country of origin
ITA
