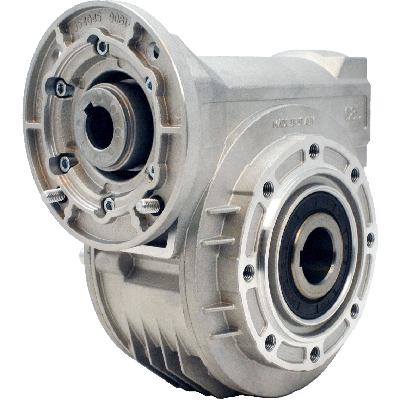

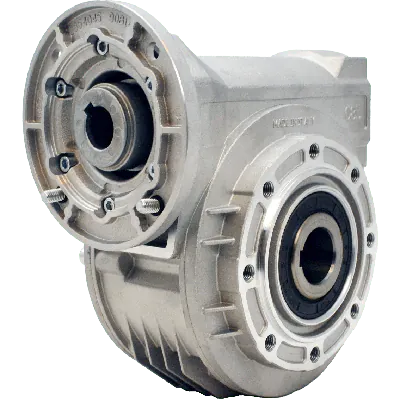

Hydro-Mec 085, worm gear Ø35 hollow shaft, 22:1, input 90B14, aluminium
HV80P085FB05C0-TB3-EThe Hydro-Mec 085 worm gearbox Ø35 hollow shaft, 22:1, input 90B14, aluminium is designed for compact and efficient power transmission. It features a gear ratio of 22:1, with a gear size 085. The input shaft diameter is 24 mm and connects via a 90B14 gear motor interface, while the output is a 35 mm hollow shaft. Built with a robust aluminium gear housing, the unit ensures a balance of weight and structural strength. It provides an input power rating of 115 and an output power rating of 130, with an overall efficiency of 78%, making it suitable for a wide range of industrial applications.
Specifications
Product description
Downloads
€580.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
22:1
BCD input
115
BCD output
130
Efficiency (%)
78
Gear output shaft (mm)
35
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
085
Output speed at 1400 RPM
64
Max output torque (Nm)
294
Max kW input at 1400 rpm
2.5
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Product name: Hydro-Mec 085, worm gearbox Ø35 hollow shaft, 22:1, input 90B14, aluminumTechnical Product Description in Use-Oriented Bullet Points:
Robust aluminium gear housing ensures a lightweight yet corrosion-resistant structure, ideal for integration in industrial automation and OEM machinery across sectors such as food processing, packaging, and intralogistics.
High-efficiency worm gear with 78% efficiency enables lower energy consumption and reduced heat generation under continuous or intermittent duty cycles in process control systems.
Integrated 35 mm hollow output shaft allows for direct shaft-mount installation, minimizing alignment issues and simplifying mechanical design in conveyor drives and rotating equipment.
Modular B14 flange interface (size 90) facilitates seamless motor coupling, supporting IEC-standard motors for rapid assembly in MRO operations or custom machinery builds.
22:1 gear ratio provides precise torque multiplication and speed reduction, making it ideal for load-driving applications such as lifting systems, mixers, or dosing mechanisms.
24 mm input shaft dimension compatible with a wide selection of motors and couplings, enhancing mechanical flexibility and enabling easy adaptation in retrofits and new-build applications.
Gearbox size 085 offers a balanced combination of compact footprint and power transmission capacity, suitable for space-constrained installations without compromising on durability.
Optimized gear geometry ensures smoother operation and reduced noise levels, facilitating use in sensitive production environments, laboratories, or locations requiring low acoustic emissions.This Hydro-Mec gear unit is designed to serve engineers and technical specialists looking for a reliable and easily integrable gearbox solution with proven performance in industrial automation and mechanical drive systems.
Robust aluminium gear housing ensures a lightweight yet corrosion-resistant structure, ideal for integration in industrial automation and OEM machinery across sectors such as food processing, packaging, and intralogistics.
High-efficiency worm gear with 78% efficiency enables lower energy consumption and reduced heat generation under continuous or intermittent duty cycles in process control systems.
Integrated 35 mm hollow output shaft allows for direct shaft-mount installation, minimizing alignment issues and simplifying mechanical design in conveyor drives and rotating equipment.
Modular B14 flange interface (size 90) facilitates seamless motor coupling, supporting IEC-standard motors for rapid assembly in MRO operations or custom machinery builds.
22:1 gear ratio provides precise torque multiplication and speed reduction, making it ideal for load-driving applications such as lifting systems, mixers, or dosing mechanisms.
24 mm input shaft dimension compatible with a wide selection of motors and couplings, enhancing mechanical flexibility and enabling easy adaptation in retrofits and new-build applications.
Gearbox size 085 offers a balanced combination of compact footprint and power transmission capacity, suitable for space-constrained installations without compromising on durability.
Optimized gear geometry ensures smoother operation and reduced noise levels, facilitating use in sensitive production environments, laboratories, or locations requiring low acoustic emissions.This Hydro-Mec gear unit is designed to serve engineers and technical specialists looking for a reliable and easily integrable gearbox solution with proven performance in industrial automation and mechanical drive systems.
