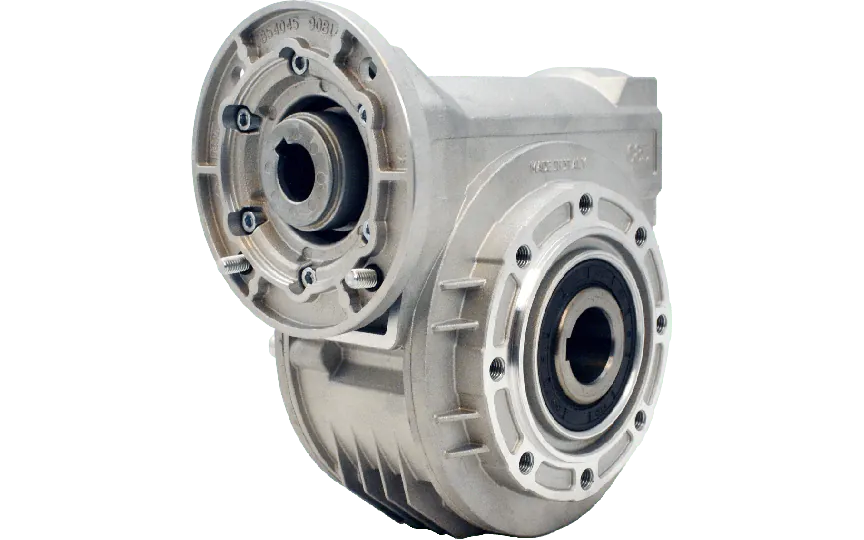

Hydro-Mec 085, worm gear Ø35 hollow shaft, 22:1, input 100/112B14, aluminium
HV80P085FB05C0-UB3-FIt features a gear size of 085 and a gear ratio of 22:1. The unit includes a Ø28 mm gear input shaft and a Ø35 mm gear output shaft in hollow configuration. Constructed with a gear housing made of aluminium, it provides reduced weight and corrosion resistance. The gearbox offers 78% efficiency and is equipped with a 100/112B14 gear motor interface. Both the BCD input and BCD output are 130 mm, aligning with standard mounting dimensions for integration flexibility.
Specifications
Product description
Downloads
€583.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
Supplier product ID
P085FB05C0-UB3-F
HS-Code
84834025.000000
Material
Aluminium
Ratio
22:1
BCD input
130
BCD output
130
Efficiency (%)
78
Gear output shaft (mm)
35
Gear input shaft (mm)
28
Gear motor interface
100/112B14
Gear size
085
Output speed at 1400 RPM
64
Max output torque (Nm)
294
Max kW input at 1400 rpm
2.5
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Product: Hydro-Mec 085, worm gearbox Ø35 mm hollow shaft, 22:1, input 100/112B14, aluminium housingKey features, benefits, and applications:
• Compact design with gear size 085 enables integration into tight mechanical assemblies, making it ideal for space-restricted installations in conveyor systems and automated production lines.
• Gear housing made of lightweight and corrosion-resistant aluminium ensures high thermal conductivity and durability even in moderately harsh industrial environments, such as food processing or packaging plants.
• Stainless steel Ø35 mm hollow output shaft (SS hollow shaft) offers superior corrosion resistance, suitable for hygienic or outdoor applications including chemical processing and wash-down environments.
• Standardized motor interface (100/112 B14) provides compatibility with a wide range of IEC motors, reducing downtime during installation and maintenance.
• 22:1 gear ratio delivers high torque at reduced output speed, optimizing mechanical performance in lifting systems, rotary actuators, and precise positioning equipment.
• 28 mm input shaft dimension ensures mechanical compatibility with a variety of coupling and power transmission configurations, simplifying integration into existing drive trains.
• Operational efficiency of 78% helps to minimize energy loss, supporting energy-conscious designs in continuous-duty applications.
• Suitable for reverse operation and featuring backlash-resistant mechanics, making it suitable for indexing mechanisms and reversible drives. This gear unit exemplifies Hydro-Mec's commitment to reliability, customization, and performance, aligning it with the high demands of industrial and engineering professionals.
• Compact design with gear size 085 enables integration into tight mechanical assemblies, making it ideal for space-restricted installations in conveyor systems and automated production lines.
• Gear housing made of lightweight and corrosion-resistant aluminium ensures high thermal conductivity and durability even in moderately harsh industrial environments, such as food processing or packaging plants.
• Stainless steel Ø35 mm hollow output shaft (SS hollow shaft) offers superior corrosion resistance, suitable for hygienic or outdoor applications including chemical processing and wash-down environments.
• Standardized motor interface (100/112 B14) provides compatibility with a wide range of IEC motors, reducing downtime during installation and maintenance.
• 22:1 gear ratio delivers high torque at reduced output speed, optimizing mechanical performance in lifting systems, rotary actuators, and precise positioning equipment.
• 28 mm input shaft dimension ensures mechanical compatibility with a variety of coupling and power transmission configurations, simplifying integration into existing drive trains.
• Operational efficiency of 78% helps to minimize energy loss, supporting energy-conscious designs in continuous-duty applications.
• Suitable for reverse operation and featuring backlash-resistant mechanics, making it suitable for indexing mechanisms and reversible drives. This gear unit exemplifies Hydro-Mec's commitment to reliability, customization, and performance, aligning it with the high demands of industrial and engineering professionals.
