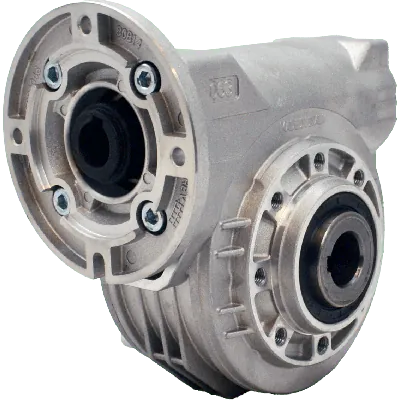

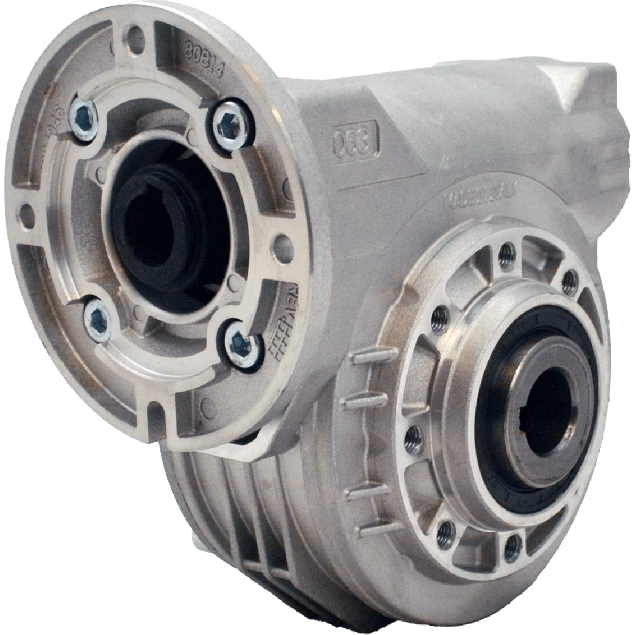

Hydro-Mec 063, worm gear Ø25 SS hollow shaft, 7:1, input 80B14, aluminium
HV80P063FB01I0-RB3-D-OFGear size: 063 Ratio: 7:1 Gear material: Aluminium Gear motor interface: 80B14 Gear input shaft: 19 mm Gear output shaft: 25 mm Output shaft type: Ø25 mm stainless steel hollow shaft Efficiency: 83% BCD input: 100 BCD output: 90 Constructed with an aluminium housing and a stainless steel hollow output shaft, this unit offers a standard 7:1 gear ratio suitable for general power transmission in industrial setups. Interface matches standard IEC motor flange 80B14.
Specifications
Product description
Downloads
€451.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
7:1
BCD input
100
BCD output
90
Efficiency (%)
83
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
063
Output speed at 1400 RPM
200
Max output torque (Nm)
125
Max kW input at 1400 rpm
3.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Product: Hydro-Mec 063, Worm Gearbox Ø25 SS Hollow Shaft, 7:1 Ratio, Input 80B14, AluminiumKey Features, Benefits & Application Use Cases:
Rugged Ø25 mm Stainless Steel Hollow Shaft – Delivers superior corrosion resistance, ideal for food processing, pharmaceutical, and wash-down environments
High-Efficiency Worm Gear Design – Provides 83% mechanical efficiency for reduced energy losses and increased system performance
Optimized 7:1 Gear Ratio – Perfect for systems requiring moderate torque multiplication with compact dimensions, such as conveyors, mixers, and dosing units
80B14 Gear Motor Interface – Widely compatible with IEC standard motors, enabling seamless integration into existing automation setups
Corrosion-Resistant Aluminium Housing – Lightweight yet robust housing for easy handling and excellent thermal dissipation, suitable for both stationary and mobile installations
19 mm Input Shaft – Precisely machined for smooth power transmission from electric motors or drive units
Compact Gear Size 063 – Facilitates installation in space-constrained systems without compromising torque output
Modular Design – Offers flexibility for retrofitting and component replacement, reducing downtime in maintenance-intensive environments
Trusted Hydro-Mec Engineering – Italian-made quality with strong global support for long-lasting performance and technical reliability This Hydro-Mec worm gearbox is engineered for demanding industrial sectors including automation, food technology, chemical processing, and OEM equipment, where reliability, precision, and cleanability are paramount.
Rugged Ø25 mm Stainless Steel Hollow Shaft – Delivers superior corrosion resistance, ideal for food processing, pharmaceutical, and wash-down environments
High-Efficiency Worm Gear Design – Provides 83% mechanical efficiency for reduced energy losses and increased system performance
Optimized 7:1 Gear Ratio – Perfect for systems requiring moderate torque multiplication with compact dimensions, such as conveyors, mixers, and dosing units
80B14 Gear Motor Interface – Widely compatible with IEC standard motors, enabling seamless integration into existing automation setups
Corrosion-Resistant Aluminium Housing – Lightweight yet robust housing for easy handling and excellent thermal dissipation, suitable for both stationary and mobile installations
19 mm Input Shaft – Precisely machined for smooth power transmission from electric motors or drive units
Compact Gear Size 063 – Facilitates installation in space-constrained systems without compromising torque output
Modular Design – Offers flexibility for retrofitting and component replacement, reducing downtime in maintenance-intensive environments
Trusted Hydro-Mec Engineering – Italian-made quality with strong global support for long-lasting performance and technical reliability This Hydro-Mec worm gearbox is engineered for demanding industrial sectors including automation, food technology, chemical processing, and OEM equipment, where reliability, precision, and cleanability are paramount.
