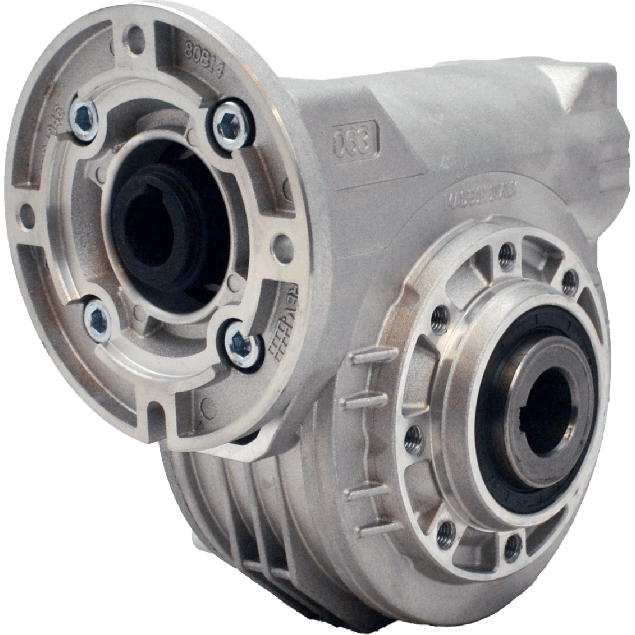

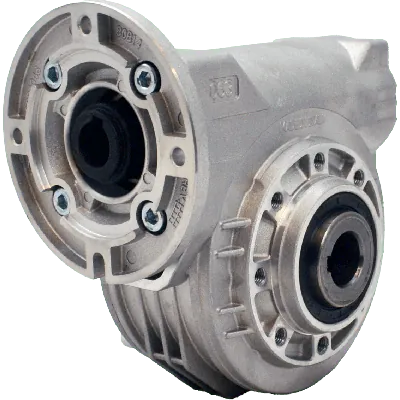

Hydro-Mec 063, worm gear Ø25 SS hollow shaft, 67:1, input 80B14, aluminium
HV80P063FB09I0-RB3-D-OFThe Hydro-Mec 063 worm gearbox Ø25 SS hollow shaft, 67:1, input 80B14, aluminium is designed for demanding power transmission applications. Key features include a gear input shaft diameter of 19 mm and a gear output shaft diameter of 25 mm. The hollow output shaft is made of stainless steel (Ø25 SS), ensuring corrosion resistance in harsh environments. The unit offers a gear ratio of 67:1 and efficiency of 60%. It is built with a gear housing made from aluminium for a balance of weight and durability and features a gear motor interface type 80B14. The gearbox size is 063. It accepts a BCD input of 100 mm and provides a BCD output of 90 mm.
Specifications
Product description
Downloads
€451.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
67:1
BCD input
100
BCD output
90
Efficiency (%)
60
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
063
Output speed at 1400 RPM
21
Max output torque (Nm)
124
Max kW input at 1400 rpm
0.45
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a reputable Italian manufacturer known for its precision-engineered power transmission components. With a strong emphasis on modular design, high performance, and corrosion-resistant materials, Hydro-Mec products are widely used in demanding industrial applications where durability and reliability are critical.This Hydro-Mec 063 worm gearbox offers a robust, compact, and highly capable gear reduction solution that is tailored for engineering professionals and industrial specialists looking for reliable, space-saving drivetrain systems.Key Features, Benefits, and Applications:
• Constructed from lightweight but durable aluminium housing – provides excellent heat dissipation and corrosion resistance, ideal for both indoor and light outdoor environments.
• Ø25 mm stainless steel (SS) hollow output shaft – ensures enhanced corrosion resistance, particularly beneficial in food processing, wastewater, or marine applications.
• Gear input shaft with Ø19 mm dimension – allows compatibility with a wide range of standard motor couplings, making system integration easy for engineers.
• Gear motor interface of size 80B14 – supports direct motor mounting, facilitating compact system layouts and reducing assembly time.
• High gear reduction ratio of 67:1 – enables precise torque control in applications with low speed and high torque requirements such as conveyors, mixers, and lifting mechanisms.
• Efficiency of 60% – typical for worm gearbox technology, suitable for intermittent or medium-duty cycles where space-saving outweighs continuous high-efficiency needs.
• Compact gear size 063 – optimal for space-constrained mechanical assemblies, including automated production lines, packaging machines, and material handling systems.
• Designed for horizontal and vertical mounting – adds flexibility to meet various installation requirements.Whether it’s used in automated production systems, the food industry, or water treatment facilities, the Hydro-Mec 063 worm gearbox offers the reliability and quality engineers demand in versatile and rugged transmission solutions.
• Constructed from lightweight but durable aluminium housing – provides excellent heat dissipation and corrosion resistance, ideal for both indoor and light outdoor environments.
• Ø25 mm stainless steel (SS) hollow output shaft – ensures enhanced corrosion resistance, particularly beneficial in food processing, wastewater, or marine applications.
• Gear input shaft with Ø19 mm dimension – allows compatibility with a wide range of standard motor couplings, making system integration easy for engineers.
• Gear motor interface of size 80B14 – supports direct motor mounting, facilitating compact system layouts and reducing assembly time.
• High gear reduction ratio of 67:1 – enables precise torque control in applications with low speed and high torque requirements such as conveyors, mixers, and lifting mechanisms.
• Efficiency of 60% – typical for worm gearbox technology, suitable for intermittent or medium-duty cycles where space-saving outweighs continuous high-efficiency needs.
• Compact gear size 063 – optimal for space-constrained mechanical assemblies, including automated production lines, packaging machines, and material handling systems.
• Designed for horizontal and vertical mounting – adds flexibility to meet various installation requirements.Whether it’s used in automated production systems, the food industry, or water treatment facilities, the Hydro-Mec 063 worm gearbox offers the reliability and quality engineers demand in versatile and rugged transmission solutions.
