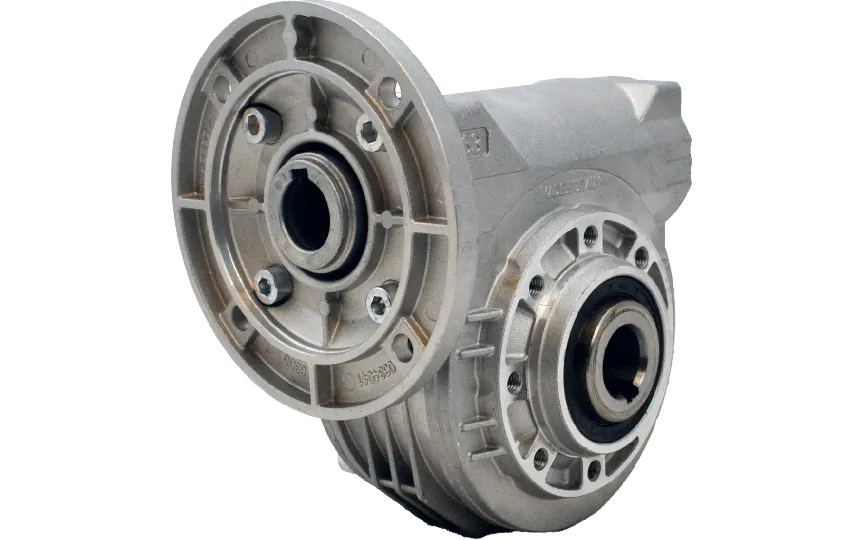

Hydro-Mec 063, worm gear Ø25 SS hollow shaft, 36:1, input 90B14, aluminium
HV80P063FB07I0-TB3-E-OFThe Hydro-Mec 063, worm gearbox Ø25 stainless steel hollow shaft, 36:1, input 90B14, aluminium is designed for efficient and space-saving power transmission. With a gear size of 063 and a 36:1 ratio, this unit is suitable for applications requiring high torque and low output speed. The input shaft diameter is 24 mm and connects via a 90B14 gear motor interface. Output is delivered through a 25 mm stainless steel hollow shaft, ensuring corrosion resistance and durability. The gearbox is constructed from aluminium, providing strength with low weight. System performance is supported by a 68% efficiency and a 115 Nm input / 90 Nm output torque capacity.
Specifications
Product description
Downloads
€456.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
36:1
BCD input
115
BCD output
90
Efficiency (%)
68
Gear output shaft (mm)
25
Gear input shaft (mm)
24
Gear motor interface
90B14
Gear size
063
Output speed at 1400 RPM
39
Max output torque (Nm)
147
Max kW input at 1400 rpm
0.88
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a renowned Italian manufacturer known for its high-performance and modular gearbox solutions, tailored to meet the demands of industrial automation, material handling, and mechanical engineering applications. With a focus on precision, efficiency, and durability, Hydro-Mec gearboxes are engineered to perform reliably under rigorous operating conditions.Key features, benefits, and application possibilities:
• Stainless Steel Hollow Output Shaft Ø25 mm: Offers high corrosion resistance, making it ideal for applications in food processing, chemical environments, and outdoor installations where moisture or aggressive agents are present.
• Housing Material: Aluminium – Lightweight yet robust structure ensures excellent heat dissipation and corrosion resistance, suited for weight-sensitive mechanical frames or mobile machinery.
• Input Interface 90B14: Compatible with standard IEC motors, enabling seamless integration into existing drive setups and reducing system reconfiguration costs.
• Gear Input Shaft Ø24 mm: Standard diameter allows for direct coupling with various motor setups and other transmission components.
• Transmission Ratio 36:1: Offers significant torque multiplication, ideal for positioning systems, conveyors, and actuators requiring precise motion control and speed reduction.
• Efficiency 68%: Delivers balanced performance between torque output and energy consumption — optimized for medium-duty industrial applications.
• Gear Size 063: Compact dimensions suited for space-critical installations such as in automated production lines and robotics.
• Durable Worm Gear Design: Minimizes backlash, making it favorable for synchronized drive solutions and applications requiring shock-load tolerance.
• Versatile Industrial Applications: Ideal for use in packaging systems, belt conveyors, lifting platforms, food machinery, and environmental control equipment.This Hydro-Mec 063 worm gearbox is engineered for technical specialists requiring a blend of power density, configurability, and environmental resistance — making it an optimal choice for industrial sectors relying on robust and flexible drive systems.
• Stainless Steel Hollow Output Shaft Ø25 mm: Offers high corrosion resistance, making it ideal for applications in food processing, chemical environments, and outdoor installations where moisture or aggressive agents are present.
• Housing Material: Aluminium – Lightweight yet robust structure ensures excellent heat dissipation and corrosion resistance, suited for weight-sensitive mechanical frames or mobile machinery.
• Input Interface 90B14: Compatible with standard IEC motors, enabling seamless integration into existing drive setups and reducing system reconfiguration costs.
• Gear Input Shaft Ø24 mm: Standard diameter allows for direct coupling with various motor setups and other transmission components.
• Transmission Ratio 36:1: Offers significant torque multiplication, ideal for positioning systems, conveyors, and actuators requiring precise motion control and speed reduction.
• Efficiency 68%: Delivers balanced performance between torque output and energy consumption — optimized for medium-duty industrial applications.
• Gear Size 063: Compact dimensions suited for space-critical installations such as in automated production lines and robotics.
• Durable Worm Gear Design: Minimizes backlash, making it favorable for synchronized drive solutions and applications requiring shock-load tolerance.
• Versatile Industrial Applications: Ideal for use in packaging systems, belt conveyors, lifting platforms, food machinery, and environmental control equipment.This Hydro-Mec 063 worm gearbox is engineered for technical specialists requiring a blend of power density, configurability, and environmental resistance — making it an optimal choice for industrial sectors relying on robust and flexible drive systems.
