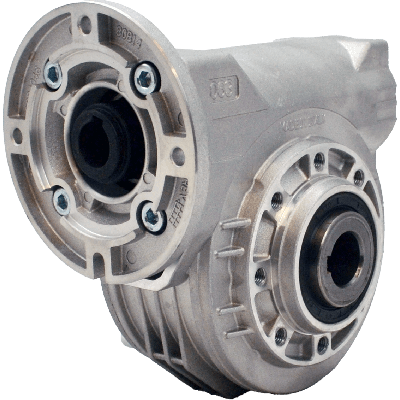

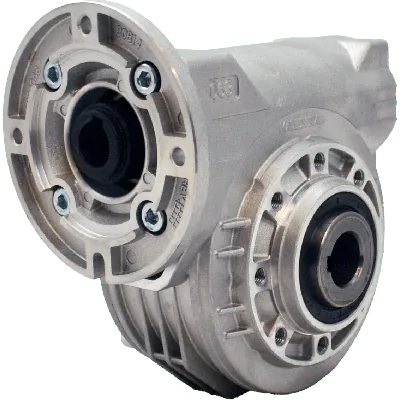

Hydro-Mec 063, worm gear Ø25 SS hollow shaft, 30:1, input 71B14, aluminium
HV80P063FB06I0-QB3-C-OFKey attributes include a 30:1 ratio for effective torque conversion and a stainless steel Ø25 mm hollow output shaft offering corrosion resistance and durability. It features a 14 mm input shaft and a 71B14 motor interface for standardised mounting. The housing is made of aluminium, ensuring low weight and high thermal conductivity. The gear size is 063, with a backward center distance (BCD) input: 85 mm and output: 90 mm. The unit operates at 74% efficiency, suitable for general-purpose drive applications.
Specifications
Product description
Downloads
€450.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
30:1
BCD input
85
BCD output
90
Efficiency (%)
74
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
063
Output speed at 1400 RPM
47
Max output torque (Nm)
146
Max kW input at 1400 rpm
0.96
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec 063 Worm Gearbox with Ø25 mm Stainless Steel Hollow Shaft, 30:1 Ratio, Input 71B14, Aluminium:
• Robust aluminium housing ensures a lightweight yet corrosion-resistant structure, ideal for integration in systems with limited load-bearing capacity or corrosive environments like food processing or chemical applications.
• Stainless steel Ø25 mm hollow output shaft offers exceptional durability and corrosion resistance, crucial for hygiene-critical or harsh environments such as marine, pharmaceutical, and wastewater treatment industries.
• 30:1 gear ratio delivers efficient torque multiplication and speed reduction, perfect for conveyors, mixers, or any industrial process requiring slow, controlled rotational output.
• Compatible with 71B14 motor interface for seamless integration in standard IEC motor systems, enhancing interchangeability and ease of system design or retrofitting.
• Input shaft diameter of 14 mm accommodates standard couplings, supporting flexible mechanical integration across various industrial configurations.
• Output efficiency of 74% ensures minimal energy loss during operation, contributing to lower operational costs and reduced heat generation during prolonged use.
• Gear size 063 enables a compact footprint while maintaining adequate torque transmission, especially beneficial in applications where space is constrained.
• Ideal for automated equipment, packaging lines, and material handling mechanisms where high reliability, compact size, and corrosion resistance are essential design parameters.Hydro-Mec gearboxes combine precision Italian engineering with modular construction, offering flexible configurations without compromising durability or performance.
• Robust aluminium housing ensures a lightweight yet corrosion-resistant structure, ideal for integration in systems with limited load-bearing capacity or corrosive environments like food processing or chemical applications.
• Stainless steel Ø25 mm hollow output shaft offers exceptional durability and corrosion resistance, crucial for hygiene-critical or harsh environments such as marine, pharmaceutical, and wastewater treatment industries.
• 30:1 gear ratio delivers efficient torque multiplication and speed reduction, perfect for conveyors, mixers, or any industrial process requiring slow, controlled rotational output.
• Compatible with 71B14 motor interface for seamless integration in standard IEC motor systems, enhancing interchangeability and ease of system design or retrofitting.
• Input shaft diameter of 14 mm accommodates standard couplings, supporting flexible mechanical integration across various industrial configurations.
• Output efficiency of 74% ensures minimal energy loss during operation, contributing to lower operational costs and reduced heat generation during prolonged use.
• Gear size 063 enables a compact footprint while maintaining adequate torque transmission, especially beneficial in applications where space is constrained.
• Ideal for automated equipment, packaging lines, and material handling mechanisms where high reliability, compact size, and corrosion resistance are essential design parameters.Hydro-Mec gearboxes combine precision Italian engineering with modular construction, offering flexible configurations without compromising durability or performance.
