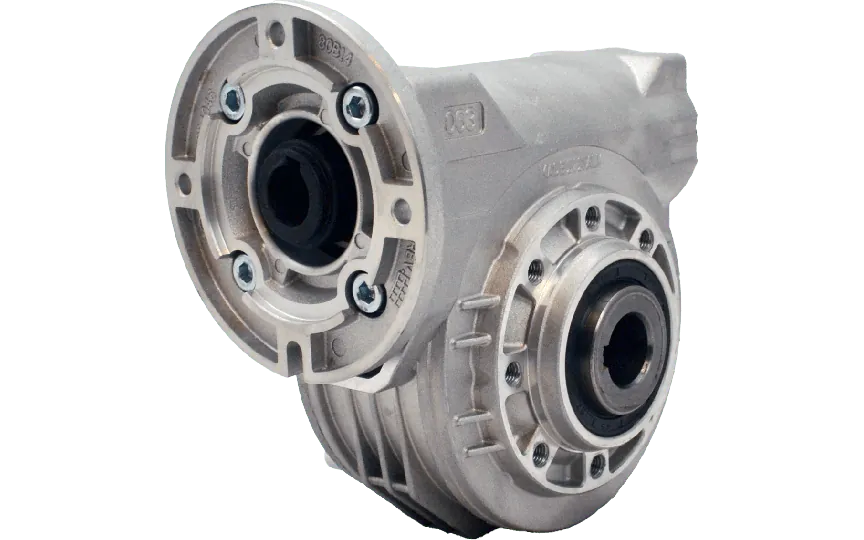

Hydro-Mec 063, worm gear Ø25 SS hollow shaft, 19:1, input 80B14, aluminium
HV80P063FB04I0-RB3-D-OFKey attributes include: Input BCD: 100 Output BCD: 90 Efficiency: 78% Gear input shaft: 19 mm Gear output shaft: 25 mm Gear ratio: 19:1 Gear size: 063 Gear housing material: Aluminium Gear motor interface: 80B14 Output shaft type: Ø25 mm stainless steel hollow shaftThis configuration offers compatibility with standard motor flanges and corrosion resistance via the stainless steel hollow shaft, making it suitable for demanding environments.
Specifications
Product description
Downloads
€451.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
19:1
BCD input
100
BCD output
90
Efficiency (%)
78
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
063
Output speed at 1400 RPM
74
Max output torque (Nm)
138
Max kW input at 1400 rpm
1.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a trusted Italian manufacturer known for its high-performance gearboxes and modular drive solutions. With a focus on innovation, durability, and integration flexibility, Hydro-Mec delivers advanced gear technologies tailored for demanding industrial environments. The Hydro-Mec 063 worm gearbox is engineered to meet the expectations of technical specialists, engineers, and OEMs across industrial automation, robotics, and processing systems.Product Key Features & Application Benefits:
● High-performance worm gearbox with a 19:1 gear ratio – ideal for torque multiplication in low-speed, high-torque applications such as material handling systems, conveyors, and rotary positioning mechanisms.
● Stainless Steel Hollow Output Shaft Ø25 mm – provides excellent corrosion resistance and durability in harsh environments; perfect for food processing, pharmaceutical, and outdoor industrial applications.
● Lightweight yet robust Aluminium Housing – ensures thermal efficiency and corrosion resistance while reducing system weight; optimal for mobile systems and compact machinery with strict weight constraints.
● Standard Input Flange 80B14 Interface – compatible with most IEC standard motors for easy integration and reduced downtime during installation or maintenance.
● Input Shaft Ø19 mm – accommodates various motor coupling options, enhancing flexibility in mechanical design and motor selection.
● Gearbox Size 063 – compact form factor suited for space-limited installations without compromising torque performance.
● Mechanical Efficiency of 78% – ensures reliable torque transmission while minimizing energy losses, contributing to overall system efficiency in applications such as screw jacks, packaging machines, and lifting devices.
● Precision-engineered by Hydro-Mec – manufactured with tight tolerances for smooth operation, extended service life, and optimal gear meshing under continuous load conditions.This modular and corrosion-resistant gearbox is designed to provide reliable performance and longevity in complex industrial tasks, making it a preferred choice for engineers requiring robust and compact power transmission solutions.
● High-performance worm gearbox with a 19:1 gear ratio – ideal for torque multiplication in low-speed, high-torque applications such as material handling systems, conveyors, and rotary positioning mechanisms.
● Stainless Steel Hollow Output Shaft Ø25 mm – provides excellent corrosion resistance and durability in harsh environments; perfect for food processing, pharmaceutical, and outdoor industrial applications.
● Lightweight yet robust Aluminium Housing – ensures thermal efficiency and corrosion resistance while reducing system weight; optimal for mobile systems and compact machinery with strict weight constraints.
● Standard Input Flange 80B14 Interface – compatible with most IEC standard motors for easy integration and reduced downtime during installation or maintenance.
● Input Shaft Ø19 mm – accommodates various motor coupling options, enhancing flexibility in mechanical design and motor selection.
● Gearbox Size 063 – compact form factor suited for space-limited installations without compromising torque performance.
● Mechanical Efficiency of 78% – ensures reliable torque transmission while minimizing energy losses, contributing to overall system efficiency in applications such as screw jacks, packaging machines, and lifting devices.
● Precision-engineered by Hydro-Mec – manufactured with tight tolerances for smooth operation, extended service life, and optimal gear meshing under continuous load conditions.This modular and corrosion-resistant gearbox is designed to provide reliable performance and longevity in complex industrial tasks, making it a preferred choice for engineers requiring robust and compact power transmission solutions.
