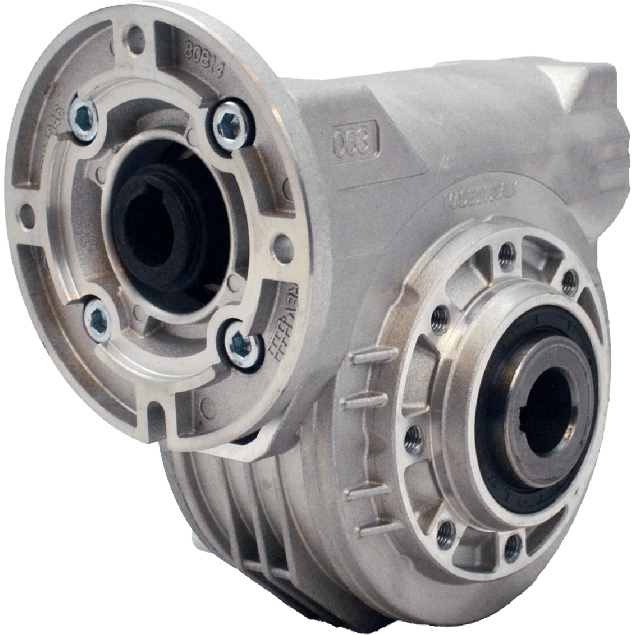

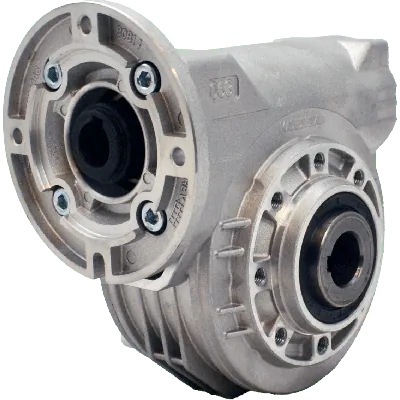

Hydro-Mec 063, worm gear Ø25 SS hollow shaft, 19:1, input 71B14, aluminium
HV80P063FB04I0-QB3-C-OFThis gearbox features a gear ratio of 19:1, ensuring effective speed reduction. It has a gear input shaft diameter of 14 mm and a gear output shaft diameter of 25 mm. The output shaft is a stainless steel hollow type, enhancing durability and corrosion resistance. The gear motor interface is 71B14, compatible with standard IEC motors. Constructed with a gear housing made of aluminium, the unit offers a good balance between strength and weight. The gear size is 063, with a mechanical efficiency of 78%. Input and output BCDs are 85 mm and 90 mm, respectively.
Specifications
Product description
Downloads
€450.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
19:1
BCD input
85
BCD output
90
Efficiency (%)
78
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
063
Output speed at 1400 RPM
74
Max output torque (Nm)
138
Max kW input at 1400 rpm
1.4
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Manufacturer: Hydro-Mec Hydro-Mec is a renowned Italian manufacturer specializing in precision gearboxes and transmission components. Known for their modular design philosophy and high-quality materials, Hydro-Mec products are engineered for industrial durability, flexibility, and efficiency. With a strong focus on innovation and customization, Hydro-Mec offers gear solutions for demanding applications across mechanical industries.Key Features and Application Benefits:
• Stainless Steel Hollow Output Shaft Ø25 mm – Ensures high corrosion resistance, making the gearbox suitable for hygienic environments such as food & beverage processing, chemical handling, or marine applications.
• Worm Gear Ratio 19:1 – Provides high torque output with compact design. Ideal for applications requiring speed reduction and precise control in automation, conveyor systems, and lifting mechanisms.
• Input Interface 71B14 – Standardized motor connection allows easy and fast integration with IEC B14 motors. Perfect for modular setups in machinery design and quick maintenance swaps.
• Gearbox Material: Aluminium Housing – Lightweight yet robust, offering excellent heat dissipation and corrosion resistance. Suited for installations where weight-saving is critical without compromising structural integrity.
• Gear Size 063 – Compact dimensions allow for installation in space-constrained mechanical assemblies, robotics, or mobile industrial equipment.
• Input Shaft Ø14 mm – Compatible with various motor configurations, facilitating flexible design schemes in automated systems and drives.
• Overall Efficiency at 78% – Optimized performance for worm gear configuration, balancing torque transmission with minimal energy loss. Suitable for continuous-duty industrial environments.
• BCD Input 85 / BCD Output 90 – Simplifies mechanical alignment in modular frameworks by offering standardized bolt circle diameters for mounting. Engineered for industrial applications, the Hydro-Mec 063 worm gearbox delivers a reliable, corrosion-resistant, and compact power transmission solution for engineers and technical specialists across automation, transport systems, and processing industries.
• Stainless Steel Hollow Output Shaft Ø25 mm – Ensures high corrosion resistance, making the gearbox suitable for hygienic environments such as food & beverage processing, chemical handling, or marine applications.
• Worm Gear Ratio 19:1 – Provides high torque output with compact design. Ideal for applications requiring speed reduction and precise control in automation, conveyor systems, and lifting mechanisms.
• Input Interface 71B14 – Standardized motor connection allows easy and fast integration with IEC B14 motors. Perfect for modular setups in machinery design and quick maintenance swaps.
• Gearbox Material: Aluminium Housing – Lightweight yet robust, offering excellent heat dissipation and corrosion resistance. Suited for installations where weight-saving is critical without compromising structural integrity.
• Gear Size 063 – Compact dimensions allow for installation in space-constrained mechanical assemblies, robotics, or mobile industrial equipment.
• Input Shaft Ø14 mm – Compatible with various motor configurations, facilitating flexible design schemes in automated systems and drives.
• Overall Efficiency at 78% – Optimized performance for worm gear configuration, balancing torque transmission with minimal energy loss. Suitable for continuous-duty industrial environments.
• BCD Input 85 / BCD Output 90 – Simplifies mechanical alignment in modular frameworks by offering standardized bolt circle diameters for mounting. Engineered for industrial applications, the Hydro-Mec 063 worm gearbox delivers a reliable, corrosion-resistant, and compact power transmission solution for engineers and technical specialists across automation, transport systems, and processing industries.
