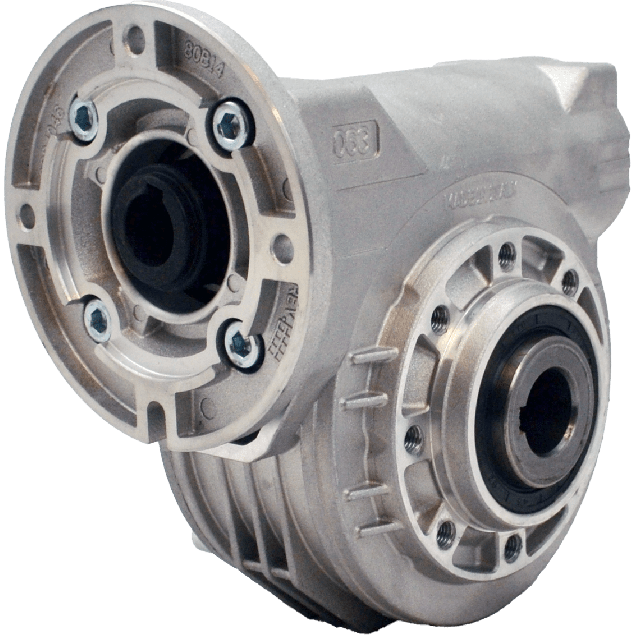

Hydro-Mec 063, worm gear Ø25 hollow shaft, 94:1, input 80B14, aluminium
HV80P063FB11C0-RB3-DThe Hydro-Mec 063, worm gearbox Ø25 hollow shaft, 94:1, input 80B14, aluminium is a compact and efficient right-angle gear solution. Designed with key technical specifications, it features a gear ratio of 94:1 and a gear size of 063. The unit offers a BCD input of 100 mm and a BCD output of 90 mm. The input shaft diameter is 19 mm, while the output shaft is a Ø25 mm hollow shaft. The gear housing is made of aluminium, ensuring lightweight construction and corrosion resistance. Compatible with 80B14 motor interface and offering mechanical efficiency of 52%, this gearbox is suitable for a range of industrial motion applications.
Specifications
Product description
Downloads
€327.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
94:1
BCD input
100
BCD output
90
Efficiency (%)
52
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
063
Output speed at 1400 RPM
14.9
Max output torque (Nm)
119
Max kW input at 1400 rpm
0.36
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Hydro-Mec is a reputable Italian manufacturer recognized across industries for its modular gearbox solutions combining high performance, compact size, and reliable operation. Known for precision and quality manufacturing, Hydro-Mec gearboxes are widely used in demanding industrial settings, offering reliable power transmission and easy integration with IEC motors.
High Gear Ratio – 94:1: Suitable for applications requiring significant torque multiplication and speed reduction, commonly used in conveyors, lifting devices, and process automation systems.
Compact Gear Size – 063: Enables integration in space-constrained environments without sacrificing performance, ideal for OEM designs and retrofitting.
Lightweight Aluminium Housing: Offers excellent corrosion resistance combined with low weight, making it ideal for mobile units and environments requiring optimal thermal dissipation.
Input Configuration – IEC 80B14 Flange: Ensures easy coupling with standard IEC electric motors for flexible system integration across various automation platforms.
Hollow Output Shaft Ø25 mm: Allows simple and direct coupling to driven parts using keyed or shrink-disc locking systems – minimizes backlash in motion systems.
Stainless Steel Hollow Shaft: Designed for environments where hygiene and corrosion resistance are paramount, such as pharmaceuticals, food processing, or offshore applications.
Input Shaft Ø19 mm: Facilitates direct motor input when not using flange-mounted motors, offering installation flexibility.
Overall Efficiency – 52%: Optimized for intermittent or low-duty operation scenarios, where the application demands high torque at moderate speeds rather than round-the-clock processing.
Versatile Mounting Options: Can be mounted in multiple orientations, enabling tailored setups for vertical, horizontal, or inclined equipment installations.This Hydro-Mec 063 worm gearbox delivers robust mechanical performance and application versatility in a compact footprint—perfect for engineering systems in automation, conveying, lifting, and more.
High Gear Ratio – 94:1: Suitable for applications requiring significant torque multiplication and speed reduction, commonly used in conveyors, lifting devices, and process automation systems.
Compact Gear Size – 063: Enables integration in space-constrained environments without sacrificing performance, ideal for OEM designs and retrofitting.
Lightweight Aluminium Housing: Offers excellent corrosion resistance combined with low weight, making it ideal for mobile units and environments requiring optimal thermal dissipation.
Input Configuration – IEC 80B14 Flange: Ensures easy coupling with standard IEC electric motors for flexible system integration across various automation platforms.
Hollow Output Shaft Ø25 mm: Allows simple and direct coupling to driven parts using keyed or shrink-disc locking systems – minimizes backlash in motion systems.
Stainless Steel Hollow Shaft: Designed for environments where hygiene and corrosion resistance are paramount, such as pharmaceuticals, food processing, or offshore applications.
Input Shaft Ø19 mm: Facilitates direct motor input when not using flange-mounted motors, offering installation flexibility.
Overall Efficiency – 52%: Optimized for intermittent or low-duty operation scenarios, where the application demands high torque at moderate speeds rather than round-the-clock processing.
Versatile Mounting Options: Can be mounted in multiple orientations, enabling tailored setups for vertical, horizontal, or inclined equipment installations.This Hydro-Mec 063 worm gearbox delivers robust mechanical performance and application versatility in a compact footprint—perfect for engineering systems in automation, conveying, lifting, and more.
