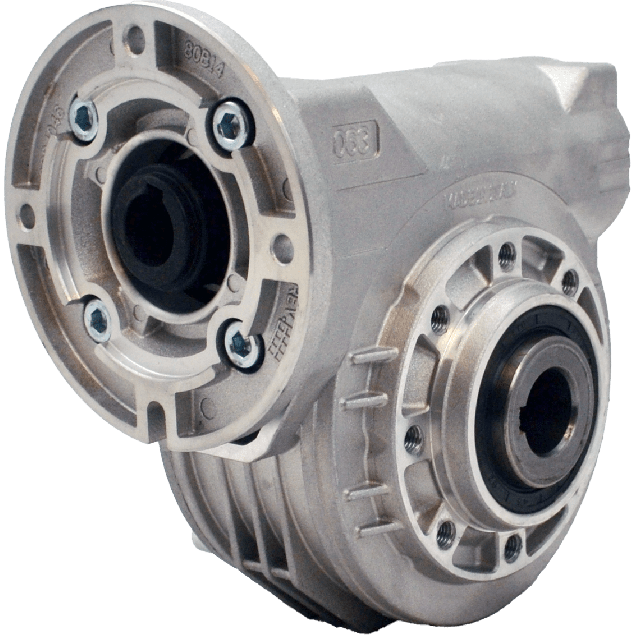

Hydro-Mec 063, worm gear Ø25 hollow shaft, 36:1, input 71B14, aluminium
HV80P063FB07C0-QB3-CFeaturing a gear size of 063 and a 36:1 ratio, it delivers reliable speed reduction. The housing is built from aluminium, offering a balance between weight and mechanical strength. The input shaft diameter is 14 mm, while the output shaft is Ø25 mm hollow, compatible with standard applications. This unit interfaces via IEC 71B14 motor mounting. Performance efficiency reaches 68%, with a input BCD of 85 mm and output BCD of 90 mm for precise alignment. Ideal for integration in engineered systems where space and efficiency matter.
Specifications
Product description
Downloads
€326.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
36:1
BCD input
85
BCD output
90
Efficiency (%)
68
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
063
Output speed at 1400 RPM
39
Max output torque (Nm)
147
Max kW input at 1400 rpm
0.88
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Hydro-Mec is a renowned European manufacturer known for producing high-precision, modular gearboxes and gear drives. With a strong reputation in industrial drive technology, Hydro-Mec delivers reliable and efficient power transmission solutions engineered for versatility across multiple sectors. Their gearboxes are proudly made to meet stringent European quality standards and are built to ensure longevity even in demanding environments.Product: Hydro-Mec 063 Worm Gearbox Ø25 Hollow Shaft, 36:1 Ratio, Input Flange 71B14, Aluminium HousingKey Features and Applications:
• Aluminium housing offers lightweight construction without compromising durability, making it ideal for automation systems and mobile machinery applications.
• Gear ratio of 36:1 provides high torque output at reduced speeds, suitable for precision motion control, conveyor systems, and lifting mechanisms.
• Integrated B14 flange interface (size 71) ensures compatibility with standardized IEC electric motors, simplifying integration into existing industrial setups.
• Input shaft diameter of 14 mm is optimized for precise coupling with low to medium-power motors, commonly used in packaging machines and assembly lines.
• Output hollow shaft with a 25 mm diameter enables direct mounting onto driven shafts, reducing alignment issues and mechanical strain in compact layouts.
• Constructed with stainless steel (SS) hollow shaft for superior corrosion resistance, making it a robust solution for food processing, chemical plants, and marine environments.
• Operational efficiency of 68% supports energy-saving initiatives while maintaining reliable power transmission in continuous-duty industrial applications.
• Compact size (063) makes it ideal for space-constrained installations such as automated manufacturing cells and robotic arms.
• Proven Hydro-Mec modular design allows easy adaptation in mixed-gear setups, supporting customization and scalability for changing production needs. Engineered for high-performance under industrial conditions, this Hydro-Mec 063 worm gearbox is a powerful and adaptable drive component tailored for technical specialists and engineers seeking efficient motion and torque control solutions.
• Aluminium housing offers lightweight construction without compromising durability, making it ideal for automation systems and mobile machinery applications.
• Gear ratio of 36:1 provides high torque output at reduced speeds, suitable for precision motion control, conveyor systems, and lifting mechanisms.
• Integrated B14 flange interface (size 71) ensures compatibility with standardized IEC electric motors, simplifying integration into existing industrial setups.
• Input shaft diameter of 14 mm is optimized for precise coupling with low to medium-power motors, commonly used in packaging machines and assembly lines.
• Output hollow shaft with a 25 mm diameter enables direct mounting onto driven shafts, reducing alignment issues and mechanical strain in compact layouts.
• Constructed with stainless steel (SS) hollow shaft for superior corrosion resistance, making it a robust solution for food processing, chemical plants, and marine environments.
• Operational efficiency of 68% supports energy-saving initiatives while maintaining reliable power transmission in continuous-duty industrial applications.
• Compact size (063) makes it ideal for space-constrained installations such as automated manufacturing cells and robotic arms.
• Proven Hydro-Mec modular design allows easy adaptation in mixed-gear setups, supporting customization and scalability for changing production needs. Engineered for high-performance under industrial conditions, this Hydro-Mec 063 worm gearbox is a powerful and adaptable drive component tailored for technical specialists and engineers seeking efficient motion and torque control solutions.
