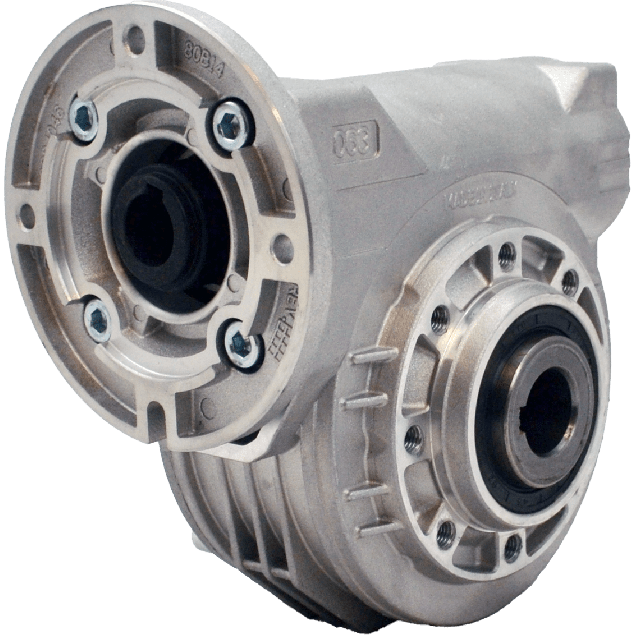

Hydro-Mec 063, worm gear Ø25 hollow shaft, 30:1, input 80B14, aluminium
HV80P063FB06C0-RB3-DGear size: 063 Ratio: 30:1 Input interface: 80B14 Gear input shaft diameter: 19 mm Gear output shaft diameter: 25 mm Gear material: Aluminium Input BCD: 100 mm Output BCD: 90 mm Efficiency: 74%This gear unit is suitable for applications requiring compact dimensions and consistent torque transmission. The aluminium housing provides a lightweight yet durable structure, and the Ø25 mm hollow output shaft allows for straightforward mechanical integration.
Specifications
Product description
Downloads
€327.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
30:1
BCD input
100
BCD output
90
Efficiency (%)
74
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
063
Output speed at 1400 RPM
47
Max output torque (Nm)
146
Max kW input at 1400 rpm
0.96
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Hydro-Mec is a trusted Italian manufacturer known for its precision-engineered gearboxes, offering high modularity, durability, and easy integration into industrial automation systems. With a strong focus on innovation and mechanical robustness, Hydro-Mec products are widely used in demanding technical environments by OEMs and engineers globally.This specific unit, the Hydro-Mec 063 worm gearbox with a 30:1 gear ratio, offers compact efficiency and rugged material construction, making it ideal for various industrial applications.
High-precision gear ratio of 30:1 — Enables significant torque multiplication and speed reduction for efficient power transmission in automated systems and handling equipment.
Input interface: IEC 80B14 flange — Ensures easy integration with standard motor interfaces commonly used across industrial machinery.
Output shaft: Ø25 mm hollow shaft — Allows direct mounting on driven elements such as conveyors, rotary actuators, or agitators, minimizing mechanical tolerance and misalignment.
Material: High-strength aluminium housing — Provides excellent corrosion resistance and lightweight durability, suitable for food processing, packaging, and chemical industries.
Stainless steel hollow shaft (SS) — Offers additional resistance against chemical exposure and moisture, ideal for hygienic and washdown environments.
Efficiency rating of 74% — Delivers reliable energy transfer, suitable for continuous operational cycles in manufacturing and conveyance systems.
Compact size 063 frame — Ideal for space-constrained installations without compromising on performance or mechanical stability.
Input shaft Ø19 mm — Standardized dimension facilitates coupling with a wide range of motors or intermediate mechanical systems.
Suitable for use in automated lines, lifting systems, mixers, and belt-driven transport systems — Ensures versatile fit across multiple sectors, including food processing, material handling, and mechanical engineering.The Hydro-Mec 063 gearbox combines reliability, efficiency, and adaptability, meeting the exacting demands of technical professionals in high-performance industrial settings.
High-precision gear ratio of 30:1 — Enables significant torque multiplication and speed reduction for efficient power transmission in automated systems and handling equipment.
Input interface: IEC 80B14 flange — Ensures easy integration with standard motor interfaces commonly used across industrial machinery.
Output shaft: Ø25 mm hollow shaft — Allows direct mounting on driven elements such as conveyors, rotary actuators, or agitators, minimizing mechanical tolerance and misalignment.
Material: High-strength aluminium housing — Provides excellent corrosion resistance and lightweight durability, suitable for food processing, packaging, and chemical industries.
Stainless steel hollow shaft (SS) — Offers additional resistance against chemical exposure and moisture, ideal for hygienic and washdown environments.
Efficiency rating of 74% — Delivers reliable energy transfer, suitable for continuous operational cycles in manufacturing and conveyance systems.
Compact size 063 frame — Ideal for space-constrained installations without compromising on performance or mechanical stability.
Input shaft Ø19 mm — Standardized dimension facilitates coupling with a wide range of motors or intermediate mechanical systems.
Suitable for use in automated lines, lifting systems, mixers, and belt-driven transport systems — Ensures versatile fit across multiple sectors, including food processing, material handling, and mechanical engineering.The Hydro-Mec 063 gearbox combines reliability, efficiency, and adaptability, meeting the exacting demands of technical professionals in high-performance industrial settings.
