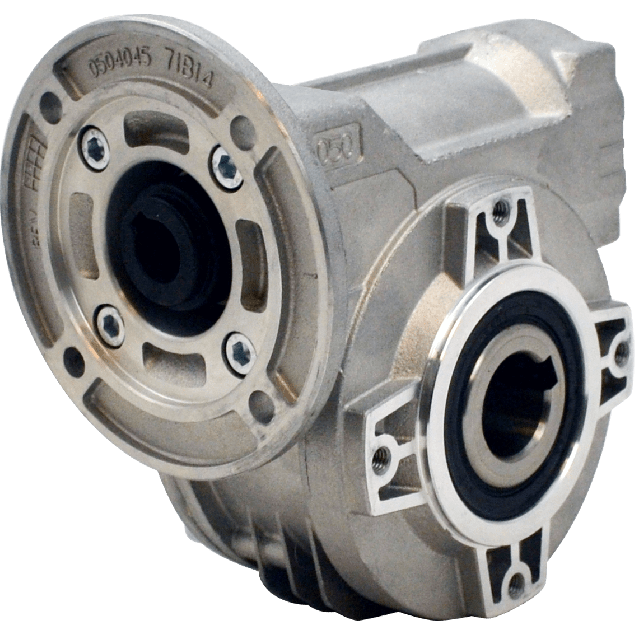

Hydro-Mec 050, worm gear Ø25 SS hollow shaft, 80:1, input 71B14, aluminium
HV80P050FB10I0QB3-C-OFThis unit features a gear ratio of 80:1 and is equipped with a Ø25 mm stainless steel hollow output shaft, suitable for applications requiring corrosion resistance. The gearbox has a Ø14 mm input shaft and uses a 71B14 motor interface. Its gear housing is made of aluminium for reduced weight and ease of handling. The gearbox size is specified as 050, with an input BCD of 85 mm and output BCD of 94 mm. The efficiency is measured at 54%, as typical for worm gear configurations.
Specifications
Product description
Downloads
€324.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
80:1
BCD input
85
BCD output
94
Efficiency (%)
54
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
050
Output speed at 1400 RPM
17.5
Max output torque (Nm)
57
Max kW input at 1400 rpm
0.19
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a well-established Italian manufacturer known for producing high-performance gear systems with precise machining and robust materials. Their products cater to demanding industrial applications, ensuring long-lasting performance and reliability even under harsh conditions. Hydro-Mec gearboxes are modular, compact, and designed for easy integration, which makes them a preferred choice among industrial engineers and automation experts.Key Features and Application Benefits:
Constructed from lightweight yet durable aluminium, the gearbox ensures corrosion resistance and efficient heat dissipation, making it ideal for humid or moderate corrosive environments.
Equipped with a 25 mm stainless steel (SS) hollow output shaft, offering exceptional corrosion resistance, especially suitable for use in food processing, pharmaceuticals, and wash-down areas in hygiene-sensitive industries.
Features a high torque transmission ratio of 80:1, ideal for heavy-duty operations requiring speed reduction and torque multiplication, such as conveyors, packaging machinery, and dosing systems.
Compatible with standard IEC 71B14 motor flanges, enabling smooth mechanical integration into existing setups without additional adapters—ideal for OEMs and machine builders.
Compact gear size 050 allows implementation in space-constrained installations while maintaining necessary mechanical strength, enhancing design flexibility.
Input shaft diameter of 14 mm supports stable connection to a wide range of drive systems, improving compatibility across industrial platforms.
Operates at 54% mechanical efficiency, optimized for low-speed, high-torque applications where power loss is acceptable and control precision outweighs energy consumption.
Ideal for automation systems, lifting units, rotating platforms, and slow-speed industrial applications where durability and consistent performance are critical.The Hydro-Mec 050 worm gear with stainless steel hollow shaft is engineered to meet the needs of technical professionals requiring reliability, modularity, and corrosion resistance in a compact footprint.
Constructed from lightweight yet durable aluminium, the gearbox ensures corrosion resistance and efficient heat dissipation, making it ideal for humid or moderate corrosive environments.
Equipped with a 25 mm stainless steel (SS) hollow output shaft, offering exceptional corrosion resistance, especially suitable for use in food processing, pharmaceuticals, and wash-down areas in hygiene-sensitive industries.
Features a high torque transmission ratio of 80:1, ideal for heavy-duty operations requiring speed reduction and torque multiplication, such as conveyors, packaging machinery, and dosing systems.
Compatible with standard IEC 71B14 motor flanges, enabling smooth mechanical integration into existing setups without additional adapters—ideal for OEMs and machine builders.
Compact gear size 050 allows implementation in space-constrained installations while maintaining necessary mechanical strength, enhancing design flexibility.
Input shaft diameter of 14 mm supports stable connection to a wide range of drive systems, improving compatibility across industrial platforms.
Operates at 54% mechanical efficiency, optimized for low-speed, high-torque applications where power loss is acceptable and control precision outweighs energy consumption.
Ideal for automation systems, lifting units, rotating platforms, and slow-speed industrial applications where durability and consistent performance are critical.The Hydro-Mec 050 worm gear with stainless steel hollow shaft is engineered to meet the needs of technical professionals requiring reliability, modularity, and corrosion resistance in a compact footprint.
