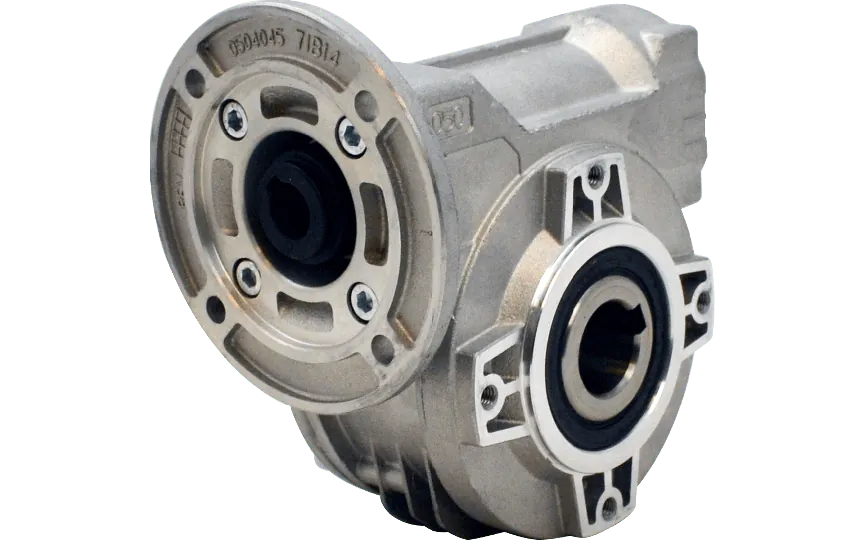

Hydro-Mec 050, worm gear Ø25 SS hollow shaft, 7:1, input 80B14, aluminium
HV80P050FB01I0RB3-D-OFThe Hydro-Mec 050, worm gearbox Ø25 SS hollow shaft, 7:1, input 80B14, aluminium is designed for compact and efficient power transmission. It features a gear input shaft diameter of 19 mm and a gear output shaft diameter of 25 mm in stainless steel. With a reduction ratio of 7:1, it delivers an efficiency of 82%. The gear motor interface is 80B14 and the gear size is 050. Constructed from aluminium, it ensures durability and low weight. The unit supports up to 100 BCD input positions and provides 94 BCD output positions, suitable for integration into a wide range of mechanical systems.
Specifications
Product description
Downloads
€326.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
7:1
BCD input
100
BCD output
94
Efficiency (%)
82
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
050
Output speed at 1400 RPM
200
Max output torque (Nm)
57
Max kW input at 1400 rpm
1.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a leading European manufacturer known for its advanced gearbox solutions that combine robust engineering with modular flexibility. With production and assembly in compliance with ISO 9001 standards, Hydro-Mec components are trusted across demanding industrial applications where precision, durability, and adaptability are essential.Key Features and Application Benefits:
Rugged Aluminium Gear Housing – Offers an optimal strength-to-weight ratio, making it suitable for high-performance environments while minimizing overall equipment weight for easier integration in machinery.
7:1 Gear Ratio – Delivers effective torque multiplication, making it ideal for applications requiring controlled speed reduction and increased torque such as conveyors, mixers, and automation systems.
Stainless Steel Ø25 mm Hollow Output Shaft – Provides rust resistance and high durability even in harsh environments, including food processing, chemical handling, and outdoor installations.
IEC 80B14 Gear Motor Interface – Ensures seamless compatibility with standard IEC electric motors, simplifying configuration and enabling quick substitution in repair or upgrade scenarios.
Output Torque Optimization – Driven through a worm gear system that supports soft operation with excellent shock resistance; fits well in material handling, packaging lines, and indexing machinery.
Efficiency Rating of 82% – Balancing energy consumption with output power, this gearbox ensures reliable performance with minimized operational costs for continuous-duty industrial operations.
Compact Gearbox Size 050 – A space-saving configuration that simplifies integration into tight installation areas common in industrial cabinets or machine frames.
Ø19 mm Input Shaft – Engineered to accommodate typical drive coupling standards, facilitating straightforward mechanical integration with electric motors and drive units.
Backlash-Reducing Worm Drive Design – Improves motion control precision, ideal for automated systems, CNC machines, and robotics needing accurate stop/start cycles.Hydro-Mec 050 gearboxes provide exceptional modular adaptability, enabling engineers and system integrators to tailor drive solutions for varied industrial applications while maintaining simplicity, reliability, and long operational life.
Rugged Aluminium Gear Housing – Offers an optimal strength-to-weight ratio, making it suitable for high-performance environments while minimizing overall equipment weight for easier integration in machinery.
7:1 Gear Ratio – Delivers effective torque multiplication, making it ideal for applications requiring controlled speed reduction and increased torque such as conveyors, mixers, and automation systems.
Stainless Steel Ø25 mm Hollow Output Shaft – Provides rust resistance and high durability even in harsh environments, including food processing, chemical handling, and outdoor installations.
IEC 80B14 Gear Motor Interface – Ensures seamless compatibility with standard IEC electric motors, simplifying configuration and enabling quick substitution in repair or upgrade scenarios.
Output Torque Optimization – Driven through a worm gear system that supports soft operation with excellent shock resistance; fits well in material handling, packaging lines, and indexing machinery.
Efficiency Rating of 82% – Balancing energy consumption with output power, this gearbox ensures reliable performance with minimized operational costs for continuous-duty industrial operations.
Compact Gearbox Size 050 – A space-saving configuration that simplifies integration into tight installation areas common in industrial cabinets or machine frames.
Ø19 mm Input Shaft – Engineered to accommodate typical drive coupling standards, facilitating straightforward mechanical integration with electric motors and drive units.
Backlash-Reducing Worm Drive Design – Improves motion control precision, ideal for automated systems, CNC machines, and robotics needing accurate stop/start cycles.Hydro-Mec 050 gearboxes provide exceptional modular adaptability, enabling engineers and system integrators to tailor drive solutions for varied industrial applications while maintaining simplicity, reliability, and long operational life.
