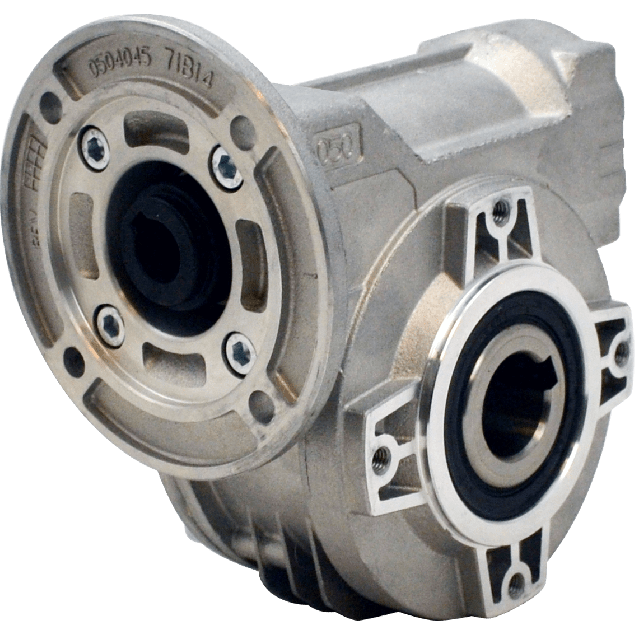

Hydro-Mec 050, worm gear Ø25 SS hollow shaft, 68:1, input 71B14, aluminium
HV80P050FB09I0QB3-C-OFThe Hydro-Mec 050, worm gear Ø25 stainless steel hollow shaft, 68:1, input 71B14, aluminium, is a compact gear unit designed for technical applications demanding durability and compatibility. It features a gear size: 050 and a gear ratio: 68:1, delivering a mechanical efficiency: 57%. The unit is built with a gear housing material: aluminium for weight reduction and corrosion resistance in moderate environments. It includes a gear input shaft: 14 mm and a gear output shaft: 25 mm in stainless steel (SS hollow shaft), minimizing wear in demanding setups. Compatible with gear motor interface: 71B14. Input and output BCD are 85 mm and 94 mm respectively.
Specifications
Product description
Downloads
€324.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
68:1
BCD input
85
BCD output
94
Efficiency (%)
57
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
050
Output speed at 1400 RPM
21
Max output torque (Nm)
58
Max kW input at 1400 rpm
0.22
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a renowned Italian manufacturer known for its high-performance gearboxes and gearmotors, tailored for industrial automation, process engineering, and demanding mechanical environments. By combining innovative design, corrosion-resistant materials, and precision-engineered components, Hydro-Mec delivers reliable power transmission solutions that meet the rigorous standards of engineers and technical specialists across various industries.Product: Hydro-Mec 050, Worm Gearbox Ø25 Stainless Steel Hollow Shaft, 68:1 Ratio, Input 71B14, Aluminium HousingKey Functions, Advantages & Applications:
• Compact gear size 050 ensures easy integration into systems with limited space, ideal for conveyor systems, automated storage solutions, and robotics.
• High gear ratio of 68:1 enables significant torque increase from low-speed, high-load applications such as lifting equipment, processing machinery, and dosing pumps.
• Stainless steel Ø25 mm hollow output shaft offers enhanced corrosion resistance for use in food processing, pharmaceutical plants, and marine environments.
• Gear housing made from lightweight yet durable aluminium ensures ease of handling without compromising structural strength, suitable for mobile industrial equipment and modular machinery.
• Input interface 71B14 allows compatibility with IEC B14 standard motors, delivering flexible integration for OEMs and maintenance-friendly replacements.
• Ø14 mm input shaft dimension provides a robust mechanical connection for electric motors while maintaining compact design standards.
• 57% mechanical efficiency provides adequate energy use performance in low-duty and intermittent applications, such as agitators, mixers, and precision positioning devices.
• Designed and assembled by Hydro-Mec, ensuring compliance with European quality standards and consistent, durable performance in mission-critical industrial applications.This gearbox is especially suited for technical projects requiring corrosion resistance, precise torque control, and modular adaptability.
• Compact gear size 050 ensures easy integration into systems with limited space, ideal for conveyor systems, automated storage solutions, and robotics.
• High gear ratio of 68:1 enables significant torque increase from low-speed, high-load applications such as lifting equipment, processing machinery, and dosing pumps.
• Stainless steel Ø25 mm hollow output shaft offers enhanced corrosion resistance for use in food processing, pharmaceutical plants, and marine environments.
• Gear housing made from lightweight yet durable aluminium ensures ease of handling without compromising structural strength, suitable for mobile industrial equipment and modular machinery.
• Input interface 71B14 allows compatibility with IEC B14 standard motors, delivering flexible integration for OEMs and maintenance-friendly replacements.
• Ø14 mm input shaft dimension provides a robust mechanical connection for electric motors while maintaining compact design standards.
• 57% mechanical efficiency provides adequate energy use performance in low-duty and intermittent applications, such as agitators, mixers, and precision positioning devices.
• Designed and assembled by Hydro-Mec, ensuring compliance with European quality standards and consistent, durable performance in mission-critical industrial applications.This gearbox is especially suited for technical projects requiring corrosion resistance, precise torque control, and modular adaptability.
