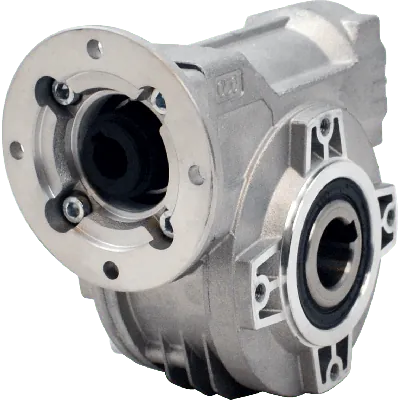

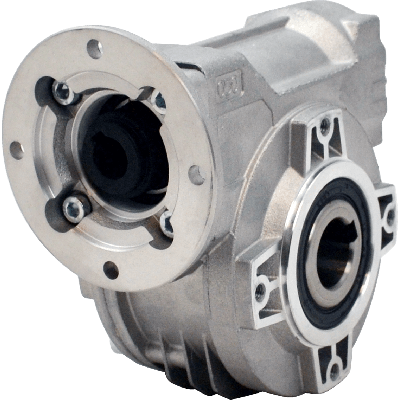

Hydro-Mec 050, worm gear Ø25 SS hollow shaft, 68:1, input 63B14, aluminium
HV80P050FB09I0PB3-B-OFThe Hydro-Mec 050 Worm Gear Ø25 SS Hollow Shaft, 68:1, Input 63B14, Aluminium is designed for compact power transmission applications. It features a gear size of 050 and a gear ratio of 68:1, ensuring reliable torque conversion. The gear output shaft diameter is 25 mm and made from stainless steel (SS hollow shaft) for enhanced durability in demanding environments. The gear input shaft measures 11 mm, with a 63B14 motor interface, allowing compatibility with standard motor flanges. Constructed with a gear housing in aluminium, it offers a lightweight yet robust solution. The unit delivers a mechanical efficiency of 57%. The input BCD is 75 mm and the output BCD is 94 mm.
Specifications
Product description
Downloads
€323.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
68:1
BCD input
75
BCD output
94
Efficiency (%)
57
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
050
Output speed at 1400 RPM
21
Max output torque (Nm)
58
Max kW input at 1400 rpm
0.22
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a leading European manufacturer of modular gearboxes and mechanical power transmission solutions, known for precision engineering, rapid delivery, and a wide selection of gear types tailored for industrial automation, process control, and motion systems. Their components are designed with durability and flexibility in mind, supporting a variety of applications across demanding technical sectors.Key Features, Benefits, and Application Areas:
• Stainless Steel Hollow Output Shaft Ø25 mm – Ideal for hygienic applications such as food processing and pharmaceuticals where corrosion resistance is critical.
• Worm Gear Ratio 68:1 – High reduction ratio enables significant torque multiplication, making this gear unit suitable for lifting, positioning systems, conveyors, and slow-speed drive applications.
• Input Shaft Ø11 mm – Standardized input accommodates a variety of IEC and custom motor couplings for streamlined integration into automation systems.
• Gear Housing in Aluminium – Lightweight yet structurally robust for environments where reducing weight is crucial without compromising strength, especially in mobile industrial systems.
• Mounting Interface 63B14 – Compatible with IEC motor frame 63 B14, providing seamless coupling with standard motors used in Europe’s industrial automation market.
• Gear Size 050 – Compact form factor for easy integration into tight enclosures or machine frames, enabling efficient use of space in OEM designs.
• Efficiency Rating of 57% – Engineered for durability and stable operation, suitable for continuous industrial use with moderate energy demands in low-speed, high-load applications.
• Modular Design by Hydro-Mec – Allows for flexible configuration or future upgrades, reducing downtime and increasing the adaptability of machinery.This gearbox is ideal for use in automated valves, packaging machinery, conveyor systems, or any mechanical application requiring precise speed reduction, corrosion resistance, and a compact footprint. Designed to perform reliably under demanding technical conditions, Hydro-Mec gearboxes offer trusted performance for engineers who prioritize efficiency, compatibility, and long-term durability.
• Stainless Steel Hollow Output Shaft Ø25 mm – Ideal for hygienic applications such as food processing and pharmaceuticals where corrosion resistance is critical.
• Worm Gear Ratio 68:1 – High reduction ratio enables significant torque multiplication, making this gear unit suitable for lifting, positioning systems, conveyors, and slow-speed drive applications.
• Input Shaft Ø11 mm – Standardized input accommodates a variety of IEC and custom motor couplings for streamlined integration into automation systems.
• Gear Housing in Aluminium – Lightweight yet structurally robust for environments where reducing weight is crucial without compromising strength, especially in mobile industrial systems.
• Mounting Interface 63B14 – Compatible with IEC motor frame 63 B14, providing seamless coupling with standard motors used in Europe’s industrial automation market.
• Gear Size 050 – Compact form factor for easy integration into tight enclosures or machine frames, enabling efficient use of space in OEM designs.
• Efficiency Rating of 57% – Engineered for durability and stable operation, suitable for continuous industrial use with moderate energy demands in low-speed, high-load applications.
• Modular Design by Hydro-Mec – Allows for flexible configuration or future upgrades, reducing downtime and increasing the adaptability of machinery.This gearbox is ideal for use in automated valves, packaging machinery, conveyor systems, or any mechanical application requiring precise speed reduction, corrosion resistance, and a compact footprint. Designed to perform reliably under demanding technical conditions, Hydro-Mec gearboxes offer trusted performance for engineers who prioritize efficiency, compatibility, and long-term durability.
