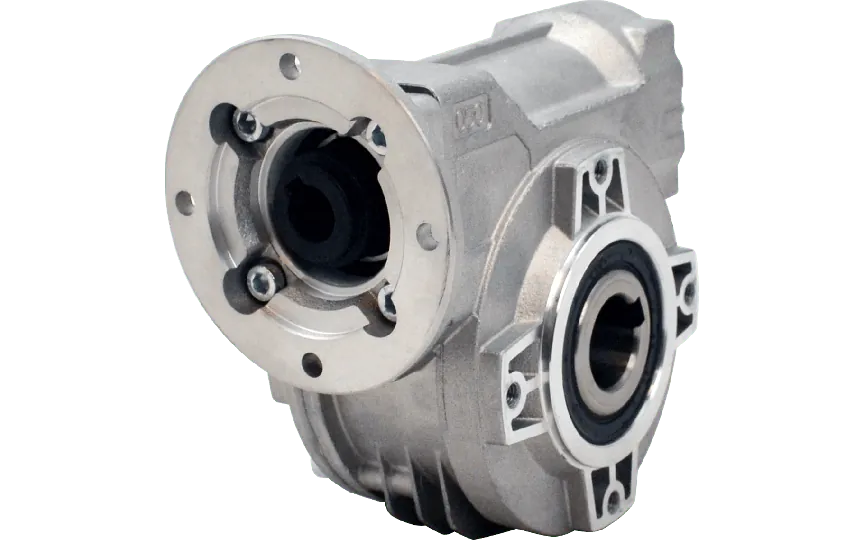

Hydro-Mec 050, worm gear Ø25 SS hollow shaft, 68:1, input 56B14, aluminium
HV80P050FB09I0OB3-A-OFIt features a gear ratio of 68:1, delivering controlled speed reduction. The output shaft diameter is 25 mm and made from stainless steel (SS) for corrosion resistance. The input shaft diameter is 9 mm, supporting reliable torque transfer. The unit’s gear motor interface is standard 56B14, ensuring compatibility with IEC motors. Constructed with a gear housing in aluminium, it offers a lightweight yet durable solution. Efficiency is 57%, with input BCD at 65 and output BCD at 94, aligning with standard mounting configurations. Gear size is 050.
Specifications
Product description
Downloads
€326.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
68:1
BCD input
65
BCD output
94
Efficiency (%)
57
Gear output shaft (mm)
25
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
050
Output speed at 1400 RPM
21
Max output torque (Nm)
58
Max kW input at 1400 rpm
0.22
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is an Italian manufacturer specializing in the production of modular and efficient gearboxes suitable for demanding industrial applications. The Hydro-Mec product line is renowned for its precision engineering, long service life, and versatility—delivering optimal performance in various sectors, including automation, materials handling, food processing, and packaging.Key Features, Benefits, and Applications:
● High 68:1 gear ratio provides significant torque multiplication, making it ideal for low-speed, high-load applications such as conveyor systems, lifting platforms, and dosing mechanisms.
● Ø25 mm stainless steel hollow output shaft (SS) offers excellent corrosion resistance, making this gearbox suitable for use in wash-down environments, food-grade machinery, and chemical processing plants.
● Input shaft dimension of 9 mm ensures compatibility with a wide range of motor sizes, enhancing integration flexibility for engineers designing power transmission systems.
● 56B14 motor flange interface ensures compact motor coupling and easy assembly, reducing installation time and enabling faster maintenance in automated production lines.
● Lightweight aluminium housing offers high strength-to-weight ratio and effective heat dissipation, beneficial for mobile systems and environments with thermal constraints.
● Gear size 050 delivers a compact, space-efficient footprint, ideal for integrations into tight enclosures or equipment with limited installation space.
● Gearbox efficiency of 57% matches common expectations for worm gear designs, suitable for intermittent-duty applications where torque priority outweighs energy efficiency.
● BCD Input: 65 mm and BCD Output: 94 mm offer standard mounting compatibility with both European and custom mechanical assemblies, expanding design possibilities across a variety of sectors.This Hydro-Mec 050 aluminium worm gearbox with stainless steel hollow shaft is engineered for reliability in challenging environments, offering high torque, modularity, and durability ideal for professional applications in industrial automation, processing lines, and mechanical engineering systems.
● High 68:1 gear ratio provides significant torque multiplication, making it ideal for low-speed, high-load applications such as conveyor systems, lifting platforms, and dosing mechanisms.
● Ø25 mm stainless steel hollow output shaft (SS) offers excellent corrosion resistance, making this gearbox suitable for use in wash-down environments, food-grade machinery, and chemical processing plants.
● Input shaft dimension of 9 mm ensures compatibility with a wide range of motor sizes, enhancing integration flexibility for engineers designing power transmission systems.
● 56B14 motor flange interface ensures compact motor coupling and easy assembly, reducing installation time and enabling faster maintenance in automated production lines.
● Lightweight aluminium housing offers high strength-to-weight ratio and effective heat dissipation, beneficial for mobile systems and environments with thermal constraints.
● Gear size 050 delivers a compact, space-efficient footprint, ideal for integrations into tight enclosures or equipment with limited installation space.
● Gearbox efficiency of 57% matches common expectations for worm gear designs, suitable for intermittent-duty applications where torque priority outweighs energy efficiency.
● BCD Input: 65 mm and BCD Output: 94 mm offer standard mounting compatibility with both European and custom mechanical assemblies, expanding design possibilities across a variety of sectors.This Hydro-Mec 050 aluminium worm gearbox with stainless steel hollow shaft is engineered for reliability in challenging environments, offering high torque, modularity, and durability ideal for professional applications in industrial automation, processing lines, and mechanical engineering systems.
