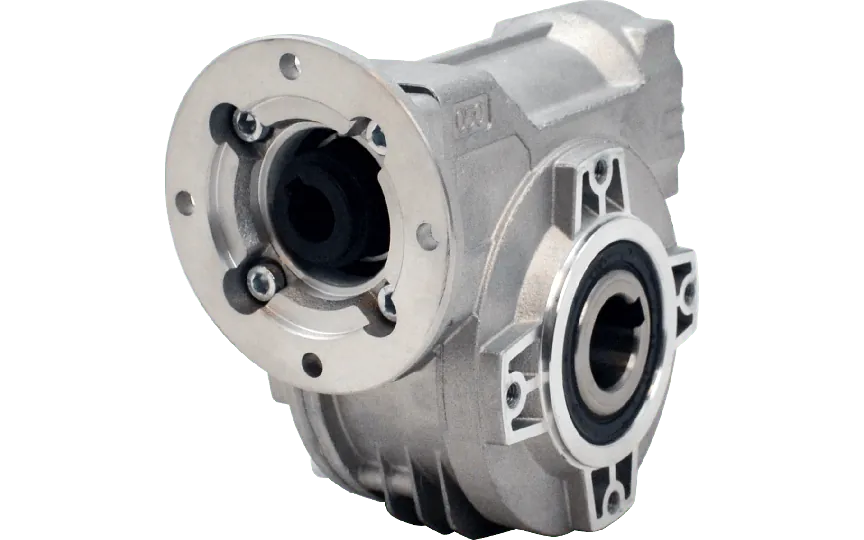

Hydro-Mec 050, worm gear Ø25 SS hollow shaft, 50:1, input 56B14, aluminium
HV80P050FB13I0OB3-A-OFIt features a gear size: 050 with a ratio: 50:1, ensuring compact torque conversion. The gear input shaft diameter is 9 mm with a 56B14 motor interface for standardized mounting. The gear output shaft is a Ø25 mm hollow shaft in stainless steel, providing corrosion resistance and durability. The gear housing is aluminium, balancing strength and weight. Mechanical performance includes a BCD input of 65 mm and a BCD output of 94 mm, with a mechanical efficiency of 62%.
Specifications
Product description
Downloads
€326.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
50:1
BCD input
65
BCD output
94
Efficiency (%)
62
Gear output shaft (mm)
25
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
050
Output speed at 1400 RPM
28
Max output torque (Nm)
66
Max kW input at 1400 rpm
0.31
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec is a renowned European manufacturer specializing in high-performance gearboxes and driveline components. Known for their precision engineering, modular designs, and robust material selection, Hydro-Mec products are widely used across industrial automation, food processing, packaging, and heavy-duty mechanical systems.Product Highlights and Applications:
High-Precision Gear Ratio of 50:1 provides significant torque multiplication, making it ideal for applications requiring precise speed reduction and controlled movement, such as conveyor systems, lifting equipment, and automated machinery.
Stainless Steel Hollow Output Shaft Ø25 mm ensures high corrosion resistance, making it especially suitable for harsh environments in the food, beverage, pharmaceutical, and chemical processing industries where hygiene and durability are essential.
Aluminium Housing offers a lightweight yet strong construction that supports superior heat dissipation and corrosion resistance, suitable for both indoor and outdoor installations in machines where weight is a critical factor.
Standardized Gear Motor Interface 56B14 allows easy integration with IEC-standard motors, simplifying installation and compatibility for electric drive packages in industrial applications.
Compact Gearbox Size 050 is specially designed to deliver high performance in a small form factor, ideal for tight spaces such as automated warehouse systems, robotic arms, or compact pump drives.
High Versatility through BCD input 65 mm and BCD output 94 mm, offering flexible mounting options and seamless integration into existing mechanical configurations.
Output Shaft in Stainless Steel (SS) improves wear resistance and chemical resilience, reducing maintenance requirements and increasing service life across demanding operational conditions.
Efficiency of 62% enables energy savings in continuous duty cycles, contributing to reduced operational costs in energy-intensive installations.
9 mm Input Shaft ensures reliable power transmission, making the unit suitable for low to medium power drives in industrial sectors such as material handling, textile machinery, and bottling lines.
High-Precision Gear Ratio of 50:1 provides significant torque multiplication, making it ideal for applications requiring precise speed reduction and controlled movement, such as conveyor systems, lifting equipment, and automated machinery.
Stainless Steel Hollow Output Shaft Ø25 mm ensures high corrosion resistance, making it especially suitable for harsh environments in the food, beverage, pharmaceutical, and chemical processing industries where hygiene and durability are essential.
Aluminium Housing offers a lightweight yet strong construction that supports superior heat dissipation and corrosion resistance, suitable for both indoor and outdoor installations in machines where weight is a critical factor.
Standardized Gear Motor Interface 56B14 allows easy integration with IEC-standard motors, simplifying installation and compatibility for electric drive packages in industrial applications.
Compact Gearbox Size 050 is specially designed to deliver high performance in a small form factor, ideal for tight spaces such as automated warehouse systems, robotic arms, or compact pump drives.
High Versatility through BCD input 65 mm and BCD output 94 mm, offering flexible mounting options and seamless integration into existing mechanical configurations.
Output Shaft in Stainless Steel (SS) improves wear resistance and chemical resilience, reducing maintenance requirements and increasing service life across demanding operational conditions.
Efficiency of 62% enables energy savings in continuous duty cycles, contributing to reduced operational costs in energy-intensive installations.
9 mm Input Shaft ensures reliable power transmission, making the unit suitable for low to medium power drives in industrial sectors such as material handling, textile machinery, and bottling lines.
