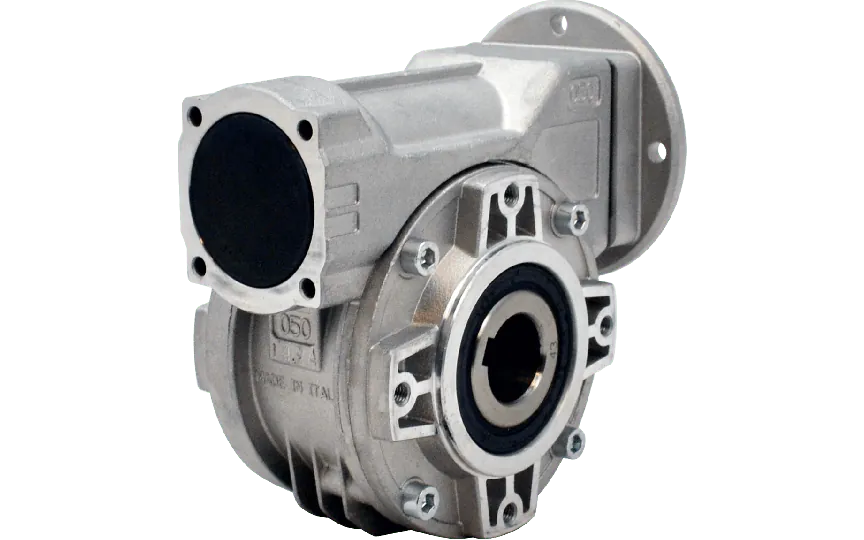

Hydro-Mec 050, worm gear Ø25 SS hollow shaft, 43:1, input 56B14, aluminium
HV80P050FB07I0OB3-A-OFIt features a 43:1 gear ratio and a 66% efficiency. Constructed with a gear housing in aluminium, it ensures lightweight durability and corrosion resistance. The Ø25 mm stainless steel hollow output shaft (SS) offers strength and extended service life in harsh environments. The input shaft is Ø9 mm, and the gear size is 050.The unit is compatible with a 56B14 motor interface and provides reliable torque transmission with a BCD output of 94 mm and a BCD input of 65 mm.
Specifications
Product description
Downloads
€326.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
43:1
BCD input
65
BCD output
94
Efficiency (%)
66
Gear output shaft (mm)
25
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
050
Output speed at 1400 RPM
33
Max output torque (Nm)
68
Max kW input at 1400 rpm
0.35
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Manufacturer Description:Hydro-Mec is a renowned Italian manufacturer specializing in modular gearboxes for industrial and engineering applications. With a focus on flexible configurations, robust design, and high performance, Hydro-Mec products are built to meet demanding operational standards across various industries. Designed and manufactured in Europe to ISO-certifications, Hydro-Mec gearboxes offer reliability, quality, and quick customization for technical specialists and engineering firms.Key Features and Application Benefits:
• Compact Gear Size 050 – Ideal for integration into space-constrained mechanical systems without compromising torque delivery.
• Stainless Steel Hollow Output Shaft Ø25 mm – Corrosion-resistant and suitable for hygienic or corrosive environments like food processing or chemical handling.
• High Gear Ratio of 43:1 – Allows for significant speed reduction while increasing torque output, making it suitable for lifting systems, conveyors, and heavy-duty actuators.
• B14 Interface (56B14 Motor Flange) – Compatible with IEC-standard motors, enabling easy motor coupling and retrofits onto existing setups.
• Aluminium Gear Housing – Lightweight yet durable; offers excellent heat dissipation and is resistant to environmental wear.
• Input Shaft Ø9 mm – Matches common coupling dimensions for flexibility in drive configuration.
• Mechanical Efficiency 66% – Efficient transmission performance for worm gear sets; suitable for intermittent or continuous duty applications with moderate energy losses.
• Modular Configuration – The Hydro-Mec design allows for easy interchangeability, reducing downtime and enabling fast customization in OEM projects.
• Broad Industry Use – Ideal for use in automated machinery, conveyor systems, packaging equipment, and agricultural machinery.
• Low-Backlash Design – Supports precise positioning in motion systems, making it suitable for robotics and material handling applications requiring accuracy.This Hydro-Mec 050 worm gearbox delivers reliable mechanical performance and versatility, engineered for technical professionals who require efficient power transmission and long-term durability.
• Compact Gear Size 050 – Ideal for integration into space-constrained mechanical systems without compromising torque delivery.
• Stainless Steel Hollow Output Shaft Ø25 mm – Corrosion-resistant and suitable for hygienic or corrosive environments like food processing or chemical handling.
• High Gear Ratio of 43:1 – Allows for significant speed reduction while increasing torque output, making it suitable for lifting systems, conveyors, and heavy-duty actuators.
• B14 Interface (56B14 Motor Flange) – Compatible with IEC-standard motors, enabling easy motor coupling and retrofits onto existing setups.
• Aluminium Gear Housing – Lightweight yet durable; offers excellent heat dissipation and is resistant to environmental wear.
• Input Shaft Ø9 mm – Matches common coupling dimensions for flexibility in drive configuration.
• Mechanical Efficiency 66% – Efficient transmission performance for worm gear sets; suitable for intermittent or continuous duty applications with moderate energy losses.
• Modular Configuration – The Hydro-Mec design allows for easy interchangeability, reducing downtime and enabling fast customization in OEM projects.
• Broad Industry Use – Ideal for use in automated machinery, conveyor systems, packaging equipment, and agricultural machinery.
• Low-Backlash Design – Supports precise positioning in motion systems, making it suitable for robotics and material handling applications requiring accuracy.This Hydro-Mec 050 worm gearbox delivers reliable mechanical performance and versatility, engineered for technical professionals who require efficient power transmission and long-term durability.
