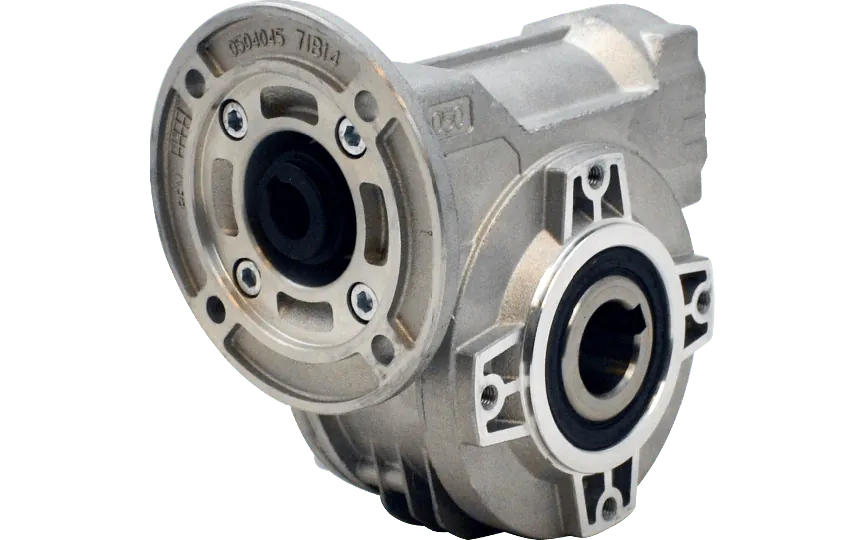

Hydro-Mec 050, worm gear Ø25 SS hollow shaft, 26:1, input 80B14, aluminium
HV80P050FB05I0RB3-D-OFThis unit features a gear output shaft Ø25 mm, stainless steel (SS) hollow shaft for corrosion-resistant operation. The input shaft diameter is 19 mm, compatible with a gear motor interface of 80B14. Constructed with a gear housing in aluminium, it delivers a transmission ratio of 26:1 and has a gear size 050. The gearbox operates at a mechanical efficiency of 69%, with a BCD input of 100 mm and a BCD output of 94 mm.
Specifications
Product description
Downloads
€326.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
26:1
BCD input
100
BCD output
94
Efficiency (%)
69
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
050
Output speed at 1400 RPM
54
Max output torque (Nm)
66
Max kW input at 1400 rpm
0.54
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Hydro-Mec
Description
Hydro-Mec 050 Worm Gearbox Ø25 mm Stainless Steel Hollow Shaft, 26:1 Ratio, Input 80B14, Aluminium HousingManufacturer Overview: Hydro-Mec is a European-based manufacturer renowned for delivering robust and high-performance gearboxes tailored to meet the complex demands of modern automation and power transmission applications. All components are designed for reliable operation under industrial conditions – ideal for use in engineering, food processing, packaging, and mechanical systems. Hydro-Mec stands out for modularity, quality materials, and short lead times.Key Features and Application Benefits:
• Stainless Steel Hollow Output Shaft (Ø25 mm): Corrosion-resistant, ideal for food-grade environments, wash-down areas, and chemically exposed applications.
• Worm Gear Ratio 26:1: Provides high torque multiplication suited for precision speed reduction in conveyor systems, mixers, or positioning drives.
• Aluminium Gear Housing: Lightweight and thermally efficient, allows for easy installation while maintaining structural integrity in demanding industrial environments.
• 80B14 Input Flange Interface: Compatible with IEC standard motors, enabling flexible integration in industrial automation setups.
• Gear Input Shaft Ø19 mm: Engineered to handle torque requirements in low to medium duty drive systems.
• Compact Gear Size 050: Optimized for machinery with space constraints while still delivering high efficiency in motion control systems.
• Mechanical Efficiency 69%: Delivers effective power transmission while maintaining manageable heat generation and system losses.
• Modularity and Compatibility: Engineered for adaptability in modular drive systems, simplifying maintenance and reducing system downtime.Applications:
• Ideal for use in conveyors, lifting equipment, feeders, and rotary tables where consistent torque and speed control are required.
• Suited for harsh environments, such as food and beverage processing, due to the stainless steel hollow shaft and corrosion-resistant materials.
• Appropriate for custom machinery and OEM applications where a balance of performance, cost, and compactness is key.Hydro-Mec gearboxes offer a technically refined solution where reliability, integration flexibility, and performance are critical. Designed for professionals by professionals.
• Stainless Steel Hollow Output Shaft (Ø25 mm): Corrosion-resistant, ideal for food-grade environments, wash-down areas, and chemically exposed applications.
• Worm Gear Ratio 26:1: Provides high torque multiplication suited for precision speed reduction in conveyor systems, mixers, or positioning drives.
• Aluminium Gear Housing: Lightweight and thermally efficient, allows for easy installation while maintaining structural integrity in demanding industrial environments.
• 80B14 Input Flange Interface: Compatible with IEC standard motors, enabling flexible integration in industrial automation setups.
• Gear Input Shaft Ø19 mm: Engineered to handle torque requirements in low to medium duty drive systems.
• Compact Gear Size 050: Optimized for machinery with space constraints while still delivering high efficiency in motion control systems.
• Mechanical Efficiency 69%: Delivers effective power transmission while maintaining manageable heat generation and system losses.
• Modularity and Compatibility: Engineered for adaptability in modular drive systems, simplifying maintenance and reducing system downtime.Applications:
• Ideal for use in conveyors, lifting equipment, feeders, and rotary tables where consistent torque and speed control are required.
• Suited for harsh environments, such as food and beverage processing, due to the stainless steel hollow shaft and corrosion-resistant materials.
• Appropriate for custom machinery and OEM applications where a balance of performance, cost, and compactness is key.Hydro-Mec gearboxes offer a technically refined solution where reliability, integration flexibility, and performance are critical. Designed for professionals by professionals.
