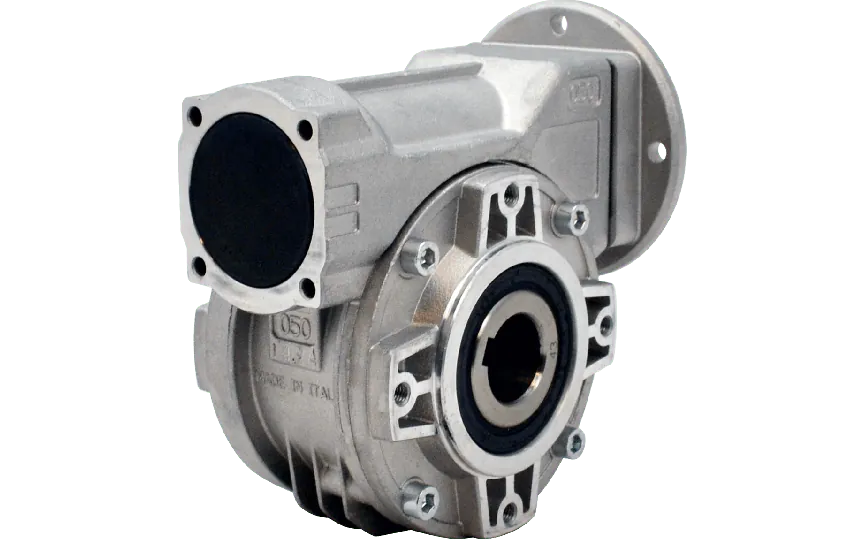

Hydro-Mec 050, worm gear Ø25 hollow shaft, 68:1, input 56B14, aluminium
HV80P050FB09C0-OB3-AKey attributes include: Gear size: 050 Ratio: 68:1 Gear material: Aluminium Gear input shaft: 9 mm Gear output shaft: 25 mm Hollow shaft: Ø25 mm Gear motor interface: 56B14 Efficiency: 57% BCD input: 65 mm BCD output: 94 mmDesigned with a compact form factor and aluminium housing suitable for environments where weight and corrosion resistance are considerations. The 68:1 reduction ratio supports applications requiring moderate torque increase and speed reduction.
Specifications
Product description
Downloads
€219.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
68:1
BCD input
65
BCD output
94
Efficiency (%)
57
Gear output shaft (mm)
25
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
050
Output speed at 1400 RPM
21
Max output torque (Nm)
58
Max kW input at 1400 rpm
0.22
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
The Hydro-Mec 050 worm gear is a compact and highly durable reducer designed for demanding engineering and industrial automation applications. Manufactured by Hydro-Mec – an internationally recognized Italian producer of high-performance gearboxes – this unit delivers reliability, flexibility, and precision in motion control applications.Application Potential and Key Features:
• Robust and Compact Design – Gear size 050 in aluminium housing provides excellent corrosion resistance while maintaining low weight, making it ideal for lightweight, mobile, or space-constrained environments.
• High Ratio Configuration – With a reduction ratio of 68:1, the gear enables significant torque multiplication and precise speed control, suitable for conveyor systems, dosing units, and alignment mechanisms.
• Worm Gear Efficiency – Operating at an efficiency level of 57%, this gear reducer offers a balance between energy consumption and performance across applications requiring moderate duty cycles.
• Stainless Steel Ø25 mm Hollow Output Shaft – The SS hollow shaft ensures robust mechanical coupling and long service life even in humid or corrosive environments such as food processing or chemical handling systems.
• Standardized Motor Interface (56B14) – Ensures quick and seamless integration with IEC-standard motors, minimizing installation time and facilitating standardization across machine designs.
• Ø9 mm Input Shaft – Supports a wide range of couplings or pulleys for modular integration into complex multi-drive systems.
• Versatile Functional Range – Suitable for use in material handling systems, compact packaging equipment, small lifting machines, automated dispensers, and indexing tables where torque density and space efficiency are critical.Hydro-Mec is renowned for precision engineering and modular gear solutions. With production based in Europe and a commitment to fast delivery and customization, Hydro-Mec gearboxes are trusted by OEMs and system integrators across automation, manufacturing, and mechanical engineering sectors.
• Robust and Compact Design – Gear size 050 in aluminium housing provides excellent corrosion resistance while maintaining low weight, making it ideal for lightweight, mobile, or space-constrained environments.
• High Ratio Configuration – With a reduction ratio of 68:1, the gear enables significant torque multiplication and precise speed control, suitable for conveyor systems, dosing units, and alignment mechanisms.
• Worm Gear Efficiency – Operating at an efficiency level of 57%, this gear reducer offers a balance between energy consumption and performance across applications requiring moderate duty cycles.
• Stainless Steel Ø25 mm Hollow Output Shaft – The SS hollow shaft ensures robust mechanical coupling and long service life even in humid or corrosive environments such as food processing or chemical handling systems.
• Standardized Motor Interface (56B14) – Ensures quick and seamless integration with IEC-standard motors, minimizing installation time and facilitating standardization across machine designs.
• Ø9 mm Input Shaft – Supports a wide range of couplings or pulleys for modular integration into complex multi-drive systems.
• Versatile Functional Range – Suitable for use in material handling systems, compact packaging equipment, small lifting machines, automated dispensers, and indexing tables where torque density and space efficiency are critical.Hydro-Mec is renowned for precision engineering and modular gear solutions. With production based in Europe and a commitment to fast delivery and customization, Hydro-Mec gearboxes are trusted by OEMs and system integrators across automation, manufacturing, and mechanical engineering sectors.
