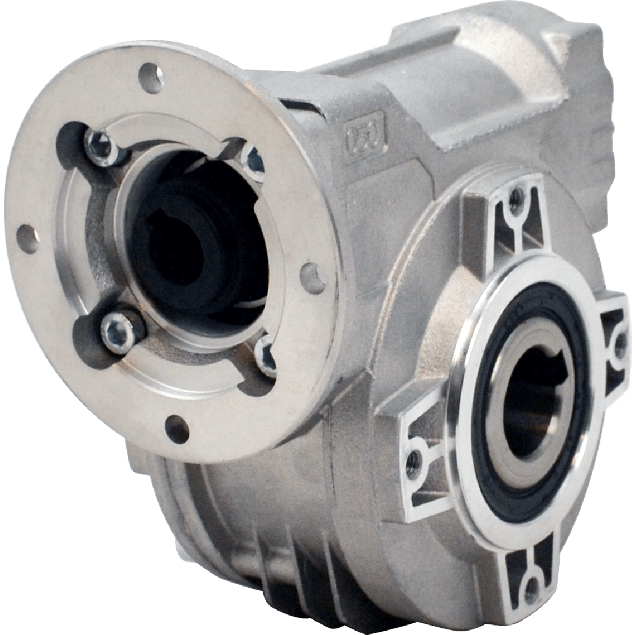

Hydro-Mec 050, worm gear Ø25 hollow shaft, 60:1, input 63B14, aluminium
HV80P050FB08C0-PB3-BIt features a gear ratio of 60:1 and a gear output shaft diameter of 25 mm. The gear input shaft measures 11 mm and connects via a 63B14 motor interface. Constructed with a gear housing made of aluminium, the unit offers a lightweight yet durable solution. The gear size is 050, suitable for standardized mounting. With a mechanical efficiency of 58%, it delivers consistent torque output. Input and output BCDs are 75 mm and 94 mm respectively for accurate alignment with surrounding components.
Specifications
Product description
Downloads
€216.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
60:1
BCD input
75
BCD output
94
Efficiency (%)
58
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
050
Output speed at 1400 RPM
23
Max output torque (Nm)
62
Max kW input at 1400 rpm
0.26
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Manufacturer: Hydro-Mec is a renowned Italian manufacturer with decades of expertise in modular gearboxes and precision transmission solutions. The brand is recognized for its durable, flexible, and easy-to-assemble gear units that are widely utilized in a range of industrial automation and mechanical systems.Key Features and Benefits:
High Reduction Ratio (60:1) – Enables significant speed reduction from the motor side, allowing high torque output at low speeds. Ideal for positioning tasks and handling applications requiring controlled movement.
Input Mount Interface 63B14 – Designed for compatibility with IEC standard motors, facilitating quick integration with electric motors across multiple industrial drive systems.
Compact Gear Size 050 – Space-saving design with high power density suited for machinery with limited installation space, such as conveyors and labelling systems.
Ø25 mm Hollow Output Shaft – Allows for direct shaft coupling and simple integration with driven components like rollers, pulleys, or gearwheels, reducing mechanical complexity and alignment errors.
Ø11 mm Input Shaft – Optimized for standard motor shaft sizes, enabling precise power transmission with reduced play and vibration.
Aluminium Construction – Lightweight, corrosion-resistant gearbox housing provides excellent heat dissipation and is ideal for hygienic or mobile machinery that demands rust resistance and reduced weight.
58% Efficiency – Designed specifically for applications where moderate efficiency is acceptable due to intermittent operation or when compactness is a higher priority than energy loss.
Robust for Industrial Environments – Suitable for use in conveyor systems, packaging machines, automation lines, and general industrial machinery where moderate load and precision are required.
Modular Architecture – Compatible with other Hydro-Mec components for easy configuration and customization to meet specific project or system requirements. This Hydro-Mec worm gearbox is a versatile, reliable solution tailored to industrial engineers and technical specialists working on machinery that demands compact transmission with moderate precision and adaptable mounting features.
High Reduction Ratio (60:1) – Enables significant speed reduction from the motor side, allowing high torque output at low speeds. Ideal for positioning tasks and handling applications requiring controlled movement.
Input Mount Interface 63B14 – Designed for compatibility with IEC standard motors, facilitating quick integration with electric motors across multiple industrial drive systems.
Compact Gear Size 050 – Space-saving design with high power density suited for machinery with limited installation space, such as conveyors and labelling systems.
Ø25 mm Hollow Output Shaft – Allows for direct shaft coupling and simple integration with driven components like rollers, pulleys, or gearwheels, reducing mechanical complexity and alignment errors.
Ø11 mm Input Shaft – Optimized for standard motor shaft sizes, enabling precise power transmission with reduced play and vibration.
Aluminium Construction – Lightweight, corrosion-resistant gearbox housing provides excellent heat dissipation and is ideal for hygienic or mobile machinery that demands rust resistance and reduced weight.
58% Efficiency – Designed specifically for applications where moderate efficiency is acceptable due to intermittent operation or when compactness is a higher priority than energy loss.
Robust for Industrial Environments – Suitable for use in conveyor systems, packaging machines, automation lines, and general industrial machinery where moderate load and precision are required.
Modular Architecture – Compatible with other Hydro-Mec components for easy configuration and customization to meet specific project or system requirements. This Hydro-Mec worm gearbox is a versatile, reliable solution tailored to industrial engineers and technical specialists working on machinery that demands compact transmission with moderate precision and adaptable mounting features.
