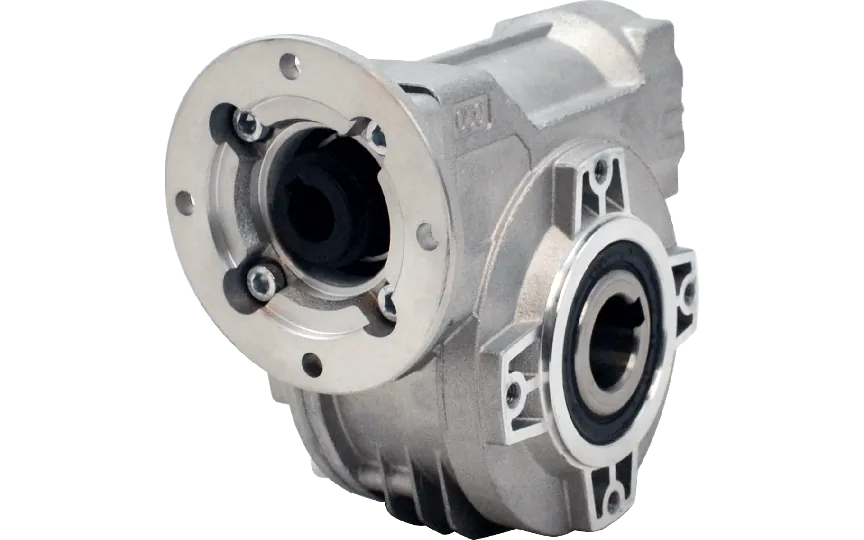

Hydro-Mec 050, worm gear Ø25 hollow shaft, 50:1, input 56B14, aluminium
HV80P050FB13C0-OB3-AThe Hydro-Mec 050 worm gearbox Ø25 hollow shaft, 50:1, input 56B14, aluminium is designed for compact power transmission in demanding applications. Featuring a gear ratio of 50:1 and a gear size of 050, it enables reliable torque conversion. The input interface is 56B14 and accepts a gear input shaft diameter of 9 mm. Output is delivered via a Ø25 mm hollow shaft. The gearbox is constructed from aluminium for reduced weight and corrosion resistance. With a mechanical efficiency of 62%, it supports a BCD input of 65 mm and a BCD output of 94 mm. Suitable for integration into standardized systems where space and material choice are critical.
Specifications
Product description
Downloads
€219.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
50:1
BCD input
65
BCD output
94
Efficiency (%)
62
Gear output shaft (mm)
25
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
050
Output speed at 1400 RPM
28
Max output torque (Nm)
66
Max kW input at 1400 rpm
0.31
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Product Name: Hydro-Mec 050, worm gearbox with Ø25 mm hollow shaft, 50:1 ratio, input 56B14, aluminium housingKey Features, Benefits, and Application Possibilities:
● High Gear Ratio of 50:1 — Enables significant torque multiplication, making it ideal for applications requiring high torque at low speeds such as conveyors, packaging machines, and lifting systems.
● Ø25 mm Output Hollow Shaft — Facilitates direct shaft mounting, reducing the need for couplings and ensuring a compact and reliable drive setup in automated systems, belt-driven machinery, and rotary indexing tables.
● Ø9 mm Input Shaft Compatible with 56B14 Motor Interface — Provides standardized connection compatibility with IEC motors, allowing for fast and trouble-free integration into existing setups.
● Aluminium Housing — Lightweight yet strong, offering corrosion resistance and excellent heat dissipation. Suitable for installation in various environments including light industrial automation and OEM equipment.
● Gear Size 050 — A compact footprint that’s ideal for space-constrained installations, such as robotic arms, compact conveyors, and decentralised drive systems.
● Efficiency of 62% — Delivers effective energy transfer suitable for continuous and intermittent duty cycles, while optimizing input power usage in material handling and processing lines.
● Modular Construction by Hydro-Mec — Allows for high customization and fast lead times. Combine with other modular components for tailored solutions across food processing, textile, and packaging industries.This Hydro-Mec 050 worm gearbox exemplifies Italian precision and efficiency, tailored for engineers and technical specialists demanding performance, reliability, and modularity in one robust unit.
● High Gear Ratio of 50:1 — Enables significant torque multiplication, making it ideal for applications requiring high torque at low speeds such as conveyors, packaging machines, and lifting systems.
● Ø25 mm Output Hollow Shaft — Facilitates direct shaft mounting, reducing the need for couplings and ensuring a compact and reliable drive setup in automated systems, belt-driven machinery, and rotary indexing tables.
● Ø9 mm Input Shaft Compatible with 56B14 Motor Interface — Provides standardized connection compatibility with IEC motors, allowing for fast and trouble-free integration into existing setups.
● Aluminium Housing — Lightweight yet strong, offering corrosion resistance and excellent heat dissipation. Suitable for installation in various environments including light industrial automation and OEM equipment.
● Gear Size 050 — A compact footprint that’s ideal for space-constrained installations, such as robotic arms, compact conveyors, and decentralised drive systems.
● Efficiency of 62% — Delivers effective energy transfer suitable for continuous and intermittent duty cycles, while optimizing input power usage in material handling and processing lines.
● Modular Construction by Hydro-Mec — Allows for high customization and fast lead times. Combine with other modular components for tailored solutions across food processing, textile, and packaging industries.This Hydro-Mec 050 worm gearbox exemplifies Italian precision and efficiency, tailored for engineers and technical specialists demanding performance, reliability, and modularity in one robust unit.
