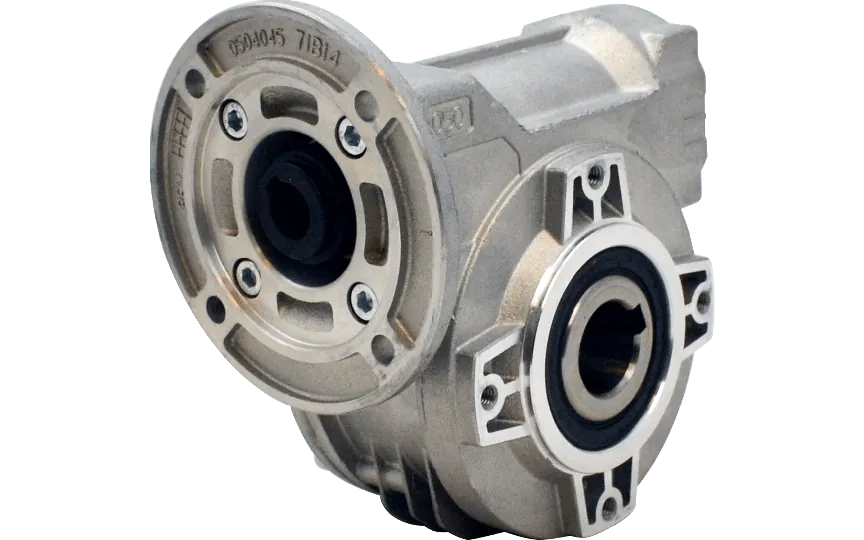

Hydro-Mec 050, worm gear Ø25 hollow shaft, 14:1, input 71B14, aluminium
HV80P050FB03C0-QB3-CThe Hydro-Mec 050 worm gearbox Ø25 hollow shaft, 14:1, input 71B14, aluminium offers compact and efficient power transmission for technical applications. It features a gear ratio of 14:1, with a gear input shaft diameter of 14 mm and a gear output shaft diameter of 25 mm. The gear housing is made of aluminium for reduced weight and corrosion resistance in industrial environments. It supports a 71B14 motor flange interface and fits applications requiring a gear size 050. The unit delivers a mechanical efficiency of 79%, with input and output BCDs of 85 mm and 94 mm respectively. Designed for reliability and straightforward integration in drive systems.
Specifications
Product description
Downloads
€217.00
Made to order
Expected shipment:
Loading...
Accessories
More Information
HS-Code
84834025.000000
Material
Aluminium
Ratio
14:1
BCD input
85
BCD output
94
Efficiency (%)
79
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
050
Output speed at 1400 RPM
100
Max output torque (Nm)
68
Max kW input at 1400 rpm
0.9
Mounting position
B3
Oil
Telium VSF 320
Producer
Hydro-Mec
Description
Hydro-Mec is a trusted Italian manufacturer renowned for producing modular, high-efficiency gearbox solutions tailored for demanding industrial applications. With a reputation built on innovation, precision engineering, and quality, Hydro-Mec gearboxes are widely used in automation, processing, and manufacturing industries.Key Features, Benefits, and Applications:
• Constructed from lightweight and corrosion-resistant aluminium housing, offering optimal heat dissipation for prolonged operational life, especially suitable for compact machinery and corrosion-sensitive environments such as food processing and packaging.
• Hollow output shaft Ø25 mm allows for direct coupling to driven shafts, improving alignment and minimizing the need for additional couplings—ideal for conveyor systems, mixers, and rotating assemblies.
• Input shaft Ø14 mm compatible with standard motors, facilitating easy installation in existing powertrain assemblies in automation and production lines.
• Gear motor interface 71B14 ensures compatibility with IEC B14 motors, supporting quick motor-gearbox integration and modularity. Particularly well-suited for applications requiring swift maintenance or reconfiguration, such as OEM machinery and custom-built systems.
• Transmission ratio of 14:1 provides a balance between torque multiplication and output speed, making it ideal for precision movement in material handling, lifts, and robotics.
• Gear size 050 denotes a compact footprint, allowing integration into restricted spaces without compromising performance—excellent for mobile or space-saving machines used in processing plants.
• Operating efficiency of 79% reduces energy loss in long-term operation, enhancing energy savings in continuous-duty applications like warehouse logistics and automated assembly lines.
• BCD Input 85 mm and BCD Output 94 mm provide standardized interface dimensions for flexible mounting across a variety of machine configurations. Ideal for engineers seeking a reliable, compact, and efficient gearbox for automation, material handling, and process equipment applications. Hydro-Mec’s modular approach ensures high adaptability across industrial sectors.
• Constructed from lightweight and corrosion-resistant aluminium housing, offering optimal heat dissipation for prolonged operational life, especially suitable for compact machinery and corrosion-sensitive environments such as food processing and packaging.
• Hollow output shaft Ø25 mm allows for direct coupling to driven shafts, improving alignment and minimizing the need for additional couplings—ideal for conveyor systems, mixers, and rotating assemblies.
• Input shaft Ø14 mm compatible with standard motors, facilitating easy installation in existing powertrain assemblies in automation and production lines.
• Gear motor interface 71B14 ensures compatibility with IEC B14 motors, supporting quick motor-gearbox integration and modularity. Particularly well-suited for applications requiring swift maintenance or reconfiguration, such as OEM machinery and custom-built systems.
• Transmission ratio of 14:1 provides a balance between torque multiplication and output speed, making it ideal for precision movement in material handling, lifts, and robotics.
• Gear size 050 denotes a compact footprint, allowing integration into restricted spaces without compromising performance—excellent for mobile or space-saving machines used in processing plants.
• Operating efficiency of 79% reduces energy loss in long-term operation, enhancing energy savings in continuous-duty applications like warehouse logistics and automated assembly lines.
• BCD Input 85 mm and BCD Output 94 mm provide standardized interface dimensions for flexible mounting across a variety of machine configurations. Ideal for engineers seeking a reliable, compact, and efficient gearbox for automation, material handling, and process equipment applications. Hydro-Mec’s modular approach ensures high adaptability across industrial sectors.
