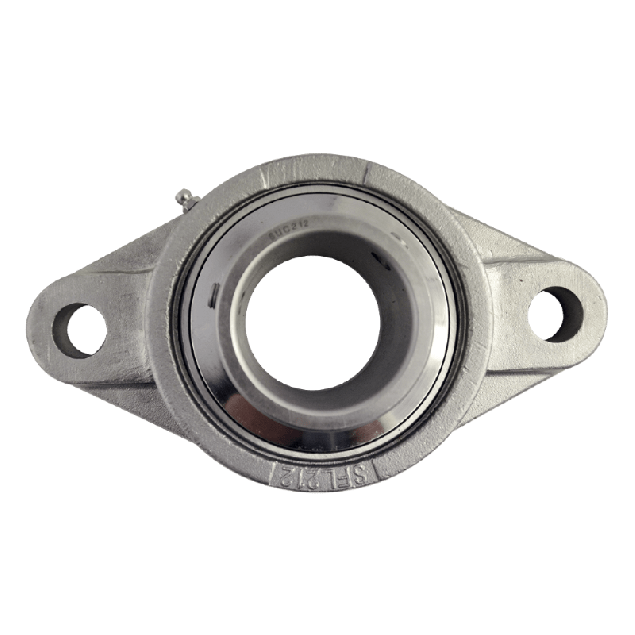

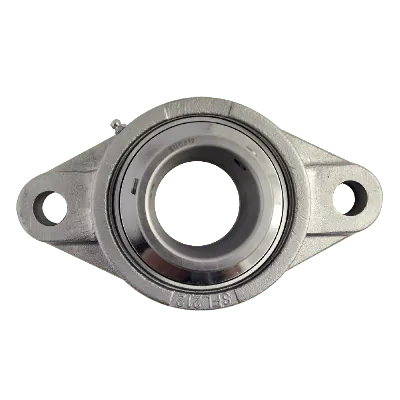

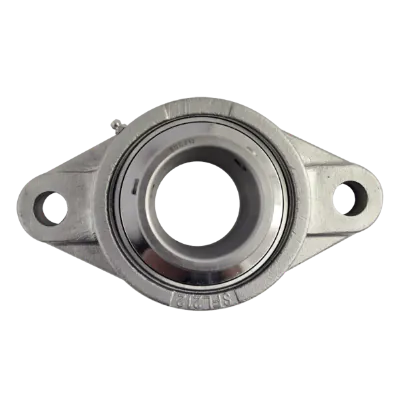

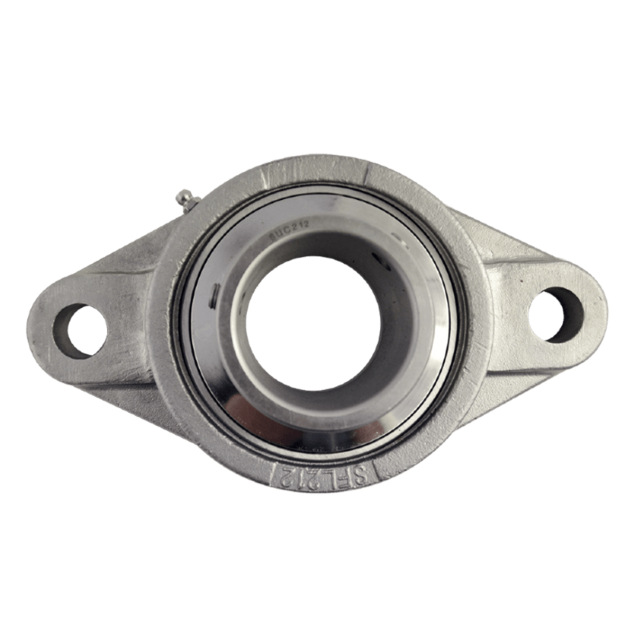

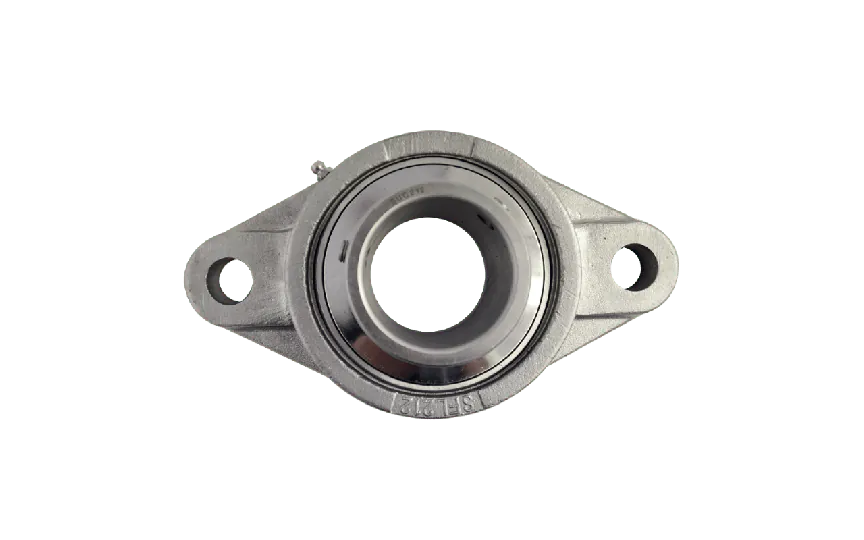

Flange bearing SFL Ø60, 2-bolt, stainless steel
SUCFL212SSFL 2 bolt Ø60 stainless steel flange bearing, is a ideal solution for demanding environments such as the food industry. This hygienically designed bearing unit, equipped with SUC stainless steel bearings and set screw locking, offers performance and requires minimal maintenance
Specifications
Product description
Downloads
€170.69
Made to order
Expected shipment: 06-01-2025
More Information
Bolt size
M20
Grease nipple
Straight
Hole distance (mm)
202
Shaft size (mm)
Ø60
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
SFL
Mounting
Set screw
Housing type
2-bolt flange bearing
House material
Stainless steel
Description
Key features:
- Screw set lock: Ensures secure and reliable mounting, providing stability during operation.
- Maintenance-free operation: With exception to regular greasing when needed, this bearing unit requires minimal maintenance, reducing downtime and costs.
- Wide operating temperature range: Capable of withstanding temperatures ranging from -20°C to +120°C, making it suitable for various industrial environments.
- No surface coating required: The stainless steel construction eliminates the need for additional coatings, ensuring long-lasting performance.
Materials:
- Stainless steel housing: The housing is constructed from AISI 304 stainless steel.
- SUC stainless steel bearing: stainless steel bearing i made from AISI 440C stainless steel.
- Stainless steel grease nipple: Grease nipple made of stainless steel.
